J&M Grain Carts
J&M Grain Carts
Increase Your Harvest Efficiency

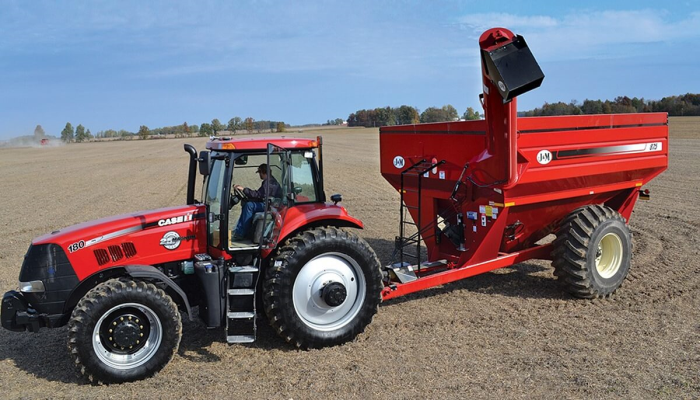

Grain carts are pulled by a tractor in the field and transport grain from the combine to the truck. J&M Manufacturing offers three types of grain carts to suit your specific farming needs. All our grain carts feature a front fold design allowing 100% visibility during the folding sequence and while unloading. J&M grain carts are also built with heavy-duty driveline and gearbox components, larger diameter shafts, best in the industry rated bearings, and oversized gears that are designed to quickly move grain under the most difficult circumstances.

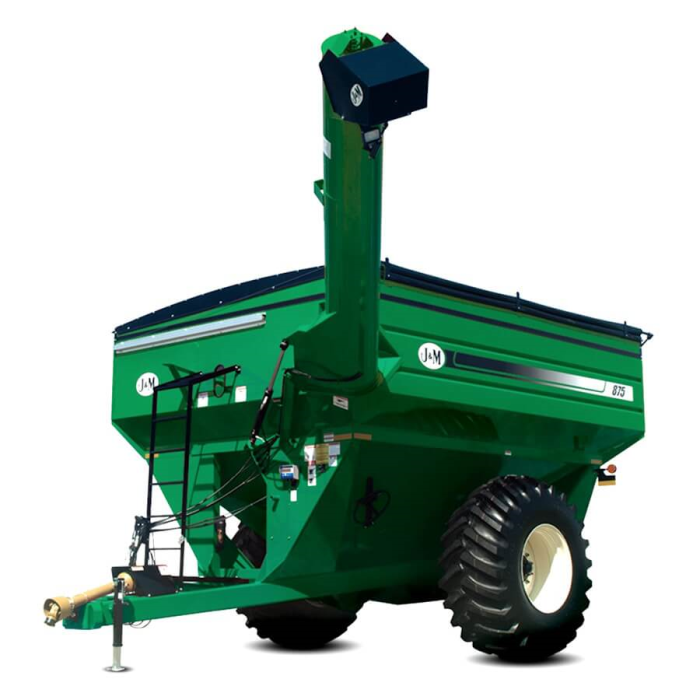

Classic Front Fold
Designed with the operator in mind, the upper auger is positioned in the corner and extends toward the tractor cab, creating a closer, clearer view when unloading grain. The Front-Folding Auger features a unique design that provides 100% visibility during unloading AND equally important 100% visibility during the folding sequence.

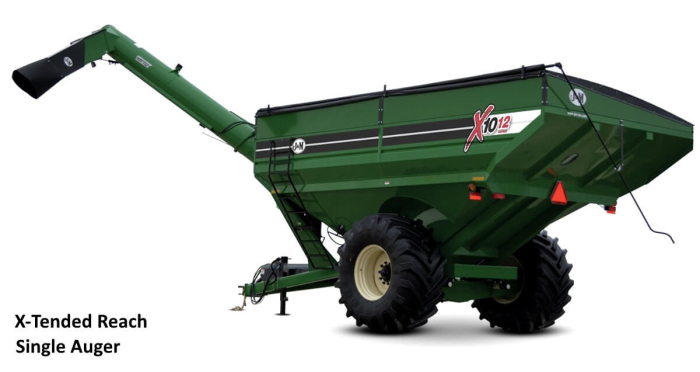

12 & 22 Series X‑Tended Reach Single Auger
X-Tended Reach models offer greater and straighter, upward, outward and forward reach. The in‑line auger design eliminates the need for costly and problematic u‑joint and soft‑start type connectors, allowing the grain to quickly travel straight from lower to upper auger, transferring grain efficiently and reliably from the cart to the semi.

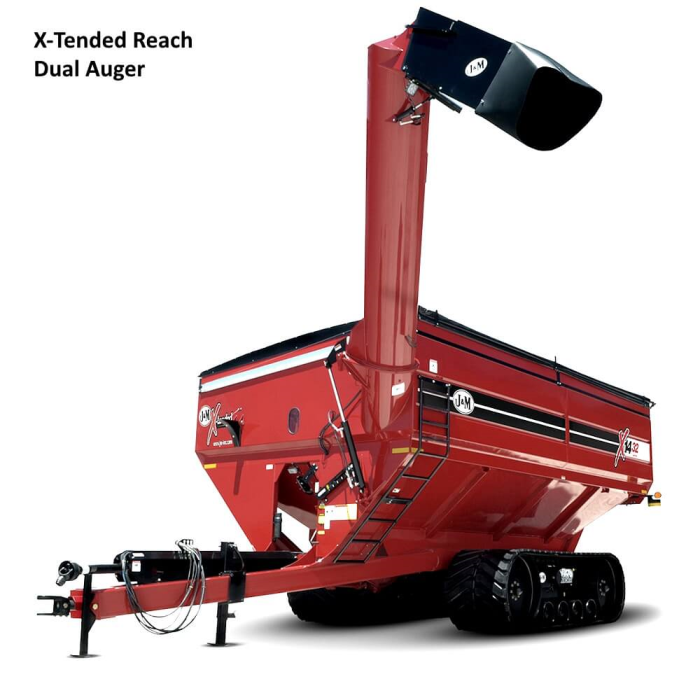

32 Series X‑Tended Reach Dual Auger
X-Tended Reach Dual Auger models offer the same great advantages as the Single Auger Models, but with the addition of a horizontal drag auger. The dual auger system allows for larger capacities while keeping a low profile design.
|Single Auger||Dual Auger|
|Capacity Range (Bushels)||525–1425||875–1500||1175–2260|
|Unload Rate (bu/min)||Up to 500||Up to 600||Up to 840|
|Vertical Auger Diameter||14"–22"||18"–20"||22"|
|Horizontal Auger Diameter||--||--||20"|
*For Full Specifications, Please Click the "Files" Tab above
