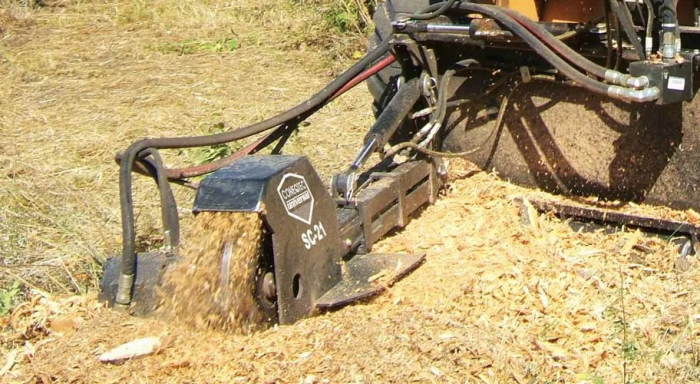

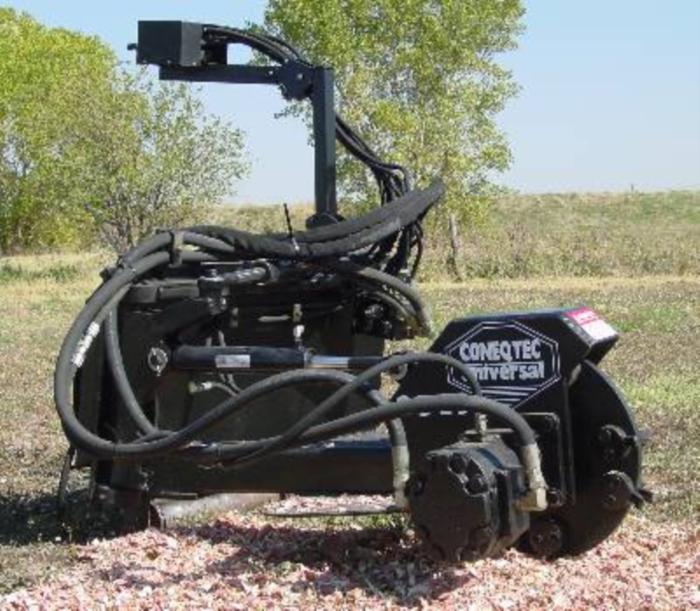

Coneqtec Universal Stump Grinder

Part #: CU-SGrinder
The patented offset design of the Universal stump grinder increases productivity by providing maximum visibility to the stump. This allows better control of the cutting head. The offset design also directs the chips and dust to the side and away from the operator, improving operator comfort.
Details
Files

Coneqtec Universal Stump Grinder



Swing-in controls - Depth and swing functions are easily and precisely controlled with the swing-in hydraulic controls. The direct acting hydraulic valve mounts on a swing-in arm that swings into the operator compartment for fast, precise control of the cutting head.

Priority control circuit - The hydraulic circuit on Universal stump grinders give metered flow to the control circuit without reducing the power to the cutting head.

Stabilizer rollers - For ease of operation the Universal stump grinders are mounted on stabilizer rollers. This allows the operator to position or reposition the grinder without operating individual stabilizers. The rollers allow movement of the unit on the ground without any damage to the surface.

Offset design - The patented offset design of the Universal stump grinder increases productivity by providing maximum visibility to the stump. This allows better control of the cutting head. The offset design also directs the chips and dust to the side and away from the operator, improving operator comfort.

Standard and high flow versions - Universal stump grinders are available in standard flow and high flow versions. The two versions allow you to match the stump grinder to the hydraulic power available from your skid steer.

High torque direct-drive motors - Both standard and high flow versions utilize high torque, direct-drive motors for maximum productivity



 Model SC-19 SC-21
 Minimum Hydraulic HP 18 30
 Swing Width 67" 67"
 Swing Arc 90° 90°
 Below Ground Depth 7.5" 7.5"
 Above Ground Height 24" 24"
 Wheel Diameter 21" 21"
 No. of Teeth 16 32
 Weight 700 lbs 769 lbs
