McHale Linkage Bale Wrappers

Part #: McHale-LW
The high output 911L Series will give you a tightly wrapped bale that increases feed quality and contains the natural juices for greater nutritional value while giving increased environmental protection.
Details

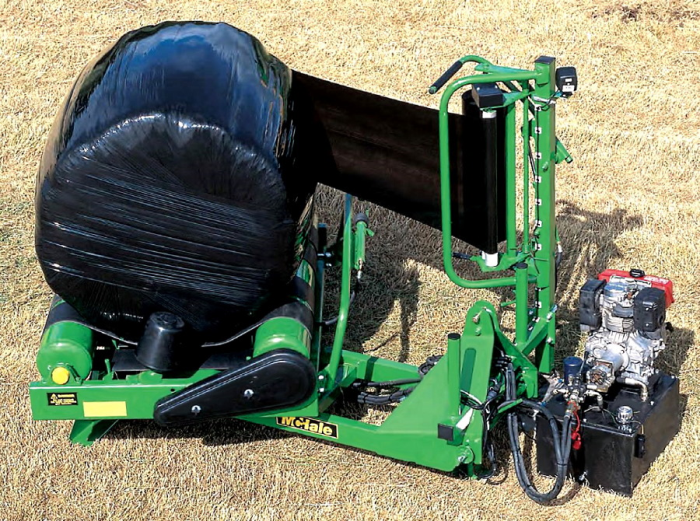

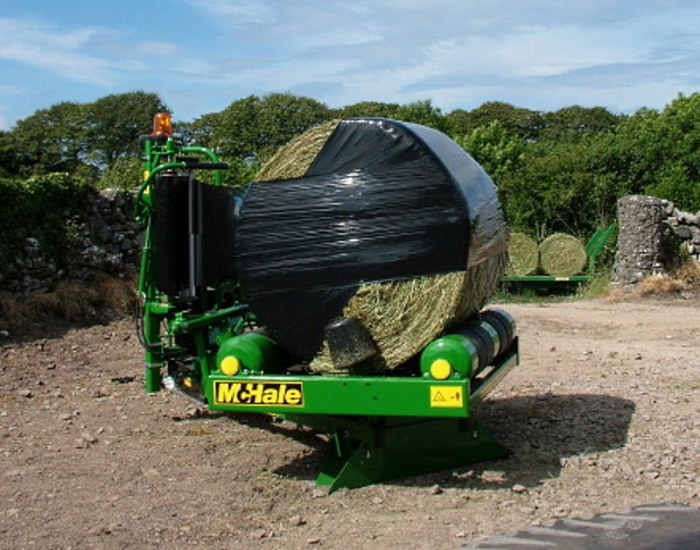

McHale Linkage Round Bale Wrappers

For thousands of contractors and owner operators McHale is the name for Round Bale Wrapping - A perfect blend of tried and tested technology with solid construction and dependable performance. Depending on your requirements the 991L series can be supplied with practical features including the hydraulic cut and tie system and the efficient 750mm film dispenser unit which maximizes film usage, all which can be simply controlled with the touch of a button or a remote control. Like all McHale Bale wrappers, the high output 911L Series will give you a tightly wrapped bale that increases feed quality and contains the natural juices for greater nutritional value while giving increased environmental protection.



Remote Control - When used with an independent power pack and an infrared remote control, this machine will eliminate the need for a second tractor and operator. While one bale is being wrapped the operator can stack the last completed bale ready to complete the cycle. This economical and efficient method of bale wrapping can reduce operating costs by up to 50% while keeping the handling of the wrapped bales to a minimum.

Cut & Tie - The McHale hydraulically operated Cut and Tie System cuts and holds the film in position ready to wrap the next bale. This time saving device eliminates the need to manually reattach the film. Uniquely designed, this system works reliably and consistently in all weather conditions.

Features

  • 750/500 Dispenser
  • 2 film holders
  • Bale Support Bobbins
  • Quick Hitch system
  • Cut & Tie
  • Bale wrap monitor
  • Fully auto/remote and manual over-ride (991LBER model)



  991LB & 991LBER
 Transport Length 9' 2"
 Transport Width 5' 5"
 Height to Top of Rollers 2' 9"
 Overall Height 6' 4"
 Weight 1764 lbs
 Lift Capacity 2646 lbs
 Working Speed up to 30 rpm
 Film Holders 2
 Hydraulic Requirement 18 gpm
Model Driver Control
 991LB 3 Bank Valve & Monitor
 991LBER Electronic Control Unit w/Remote

Model Electrical Requirements
 991LB 12v/ 7 pin
 991LBER 12v/ from battery
