ATI Grapple Kits

Part #: ATI-Grapple
Having the proper tools to do the job right is important. Adding a Grapple Kit allows you to do your work faster. Reducing the time it takes to do your chores gives you more time to do what you enjoy.
Details

ATI Grapple Kits

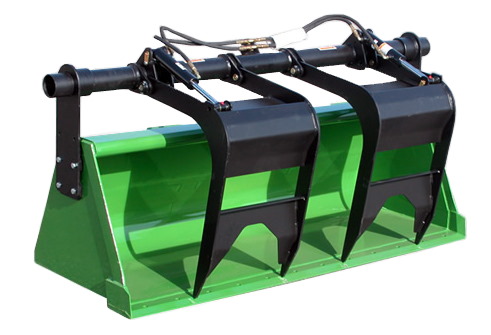

GK-4866 Grapple Kit for Compact Tractor Loaders

  • Kit fits compact tractor buckets 48" to 73" wide
  • Single, three-tine grapple holds loose materials in bucket
  • One, 1-3/4" dia. bore x 6" stroke hydraulic cylinder
  • A third function hydraulic control valve is necessary to operate hydraulic cylinder
  • Weld and trim tube to length
  • Installation Available

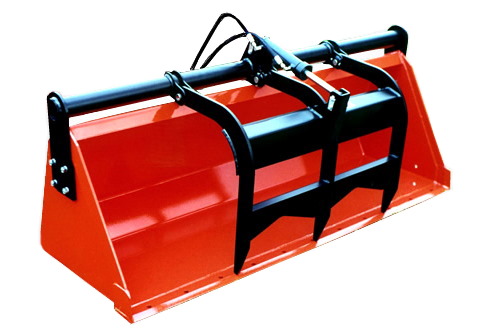

GK-6078 Grapple Kit for Utility Tractors & Skid Steer Loaders

  • Kit fits buckets 60" to 85" wide
  • Dual, two-tine grapple holds loose materials in bucket
  • Two, 1-3/4" dia. bore x 6" stroke hydraulic cylinders
  • A third function hydraulic control valve is necessary to operate hydraulic cylinders
  • Weld and trim tube to length
  • Bolt-on design for easy removal
