E&T TruFlow Drop Spreaders

Part #: ET-TruFlow
The TruFlow line of spreaders are a simple gravity flow design. The larger models utilize an agitator to keep the material flowing and a large diameter roller to expel the topdressing material you are spreading.
Details

Earth & Turf TruFlow Drop Spreaders

The TruFlow™ line of spreaders are a simple gravity flow design. The larger models utilize an agitator to keep the material flowing and a large diameter roller to expel the topdressing material you are spreading. TruFlow topdressers are designed to work with drier flow-able materials with moisture contents up to 20 percent.



The TruFlow™ spreaders are used on sports turf fields (including the New York Mets Citi Field), tennis courts, golf greens & tee boxes, and agricultural applications such as spreading drying agents in broiler houses to dry litter.

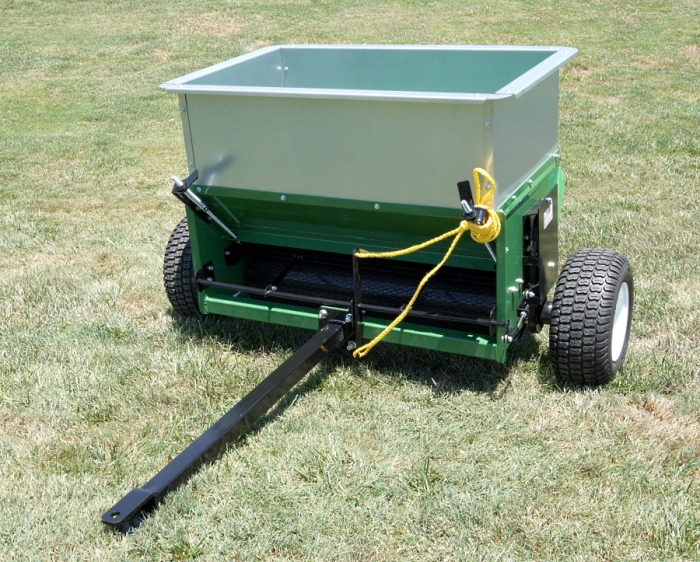

TruFlow 36D Tow-Behind Drop Spreader

The TruFlow 36D was designed to drop spread topdressing material in small areas that require maneuverability. The 36D is small enough to fit into tight corners yet large enough to quickly cover any size area with a uniform coat of topdressing material.



The 36D can spread any dry, flow-able material with a moisture content up to 25%. Topdressing material can include dry sand, calcined clay, and bagged materials.



This tow-behind drop spreader can be used on baseball fields, synthetic turf fields, golf greens, and other playing surfaces that need to be refaced or replenished with a topdressing type material. Other uses for the TruFlow 36D include homeowners with larger yards and residential landscapers.

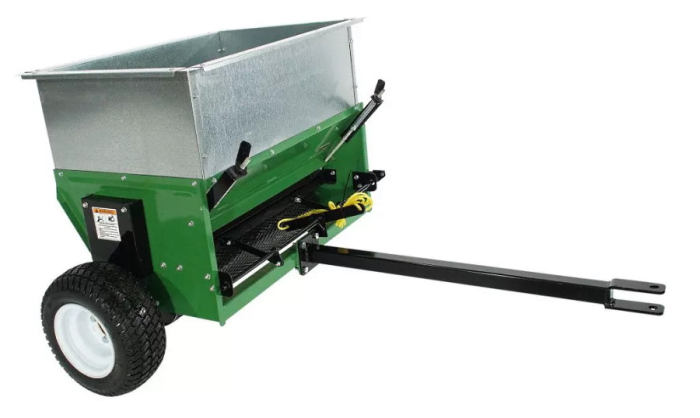

TruFlow 54D Tow-Behind Drop Spreader

Our largest pull-behind drop spreader is our TruFlow 54D. This drop spreader has been designed for large areas. The 54D has a capacity of 15 cu. ft and a 54-inch spread width. True to all TruFlow topdressing drop spreaders, the TruFlow 54D spreads dry sand, calcined clay, and bagged materials.



This pull-behind drop spreader can be used on baseball fields, synthetic turf fields, golf greens, and other playing surfaces that need to be refaced or replenished with a topdressing type material.



 Model TruFlow 36D TruFlow 54D
 Capacity 10 cu.ft. 15 cu.ft.
 Max Load Weight 1200 lbs 1630 lbs
 Box Width 38" 56"
 Box Length 24" 24"
 Total Height 36" 37"
 Total Width 57" 79"
 Total Length 65" 65"
 Spread Width 36" 54"
 Spread Thickness Up to 0.5" Up to 0.5"
 Spread System Drum & Drop Drum & Drop
 Weight w/ Tires 225 lbs 350 lbs
 Tire Size 16.00 x 6.50-8.00 18.00 x 6.50-8.00
 Movement Pull-Type Pull-Type
 Drive Ground Drive Ground Drive
 Required Power 12 hp 12 hp
 Build 12/16 Ga. Bolted Steel, 2-Part Epoxy
