Toro Workman UTV

Part #: ToroUTV
The Workman Series is a grounds and turf crossover vehicle that boasts an unequalled combination of comfort, utility and control, making it simply superior to the competition. Its increased power, improved steering and exclusive suspension and braking systems make the Workman the most versatile, practical and comfortable utility vehicle in its class.
Details

Toro Workman UTVs - GTX and MDX Series

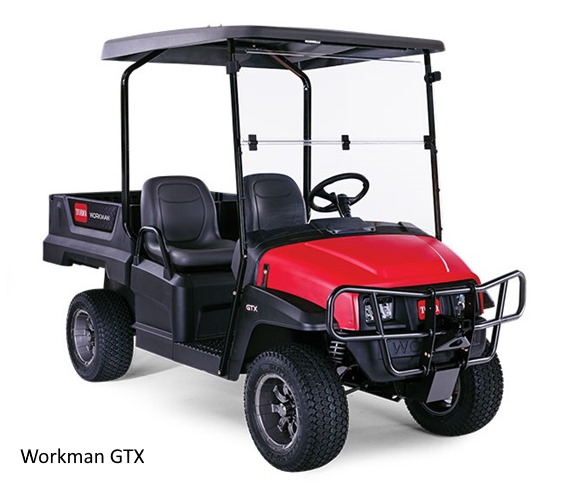

Workman GTX Series

The Workman® GTX Series is a grounds and turf crossover vehicle that boasts an unequalled combination of comfort, utility and control, making it simply superior to the competition. Its increased power, improved steering and exclusive suspension and braking systems make the Workman GTX the most versatile, practical and comfortable utility vehicle in its class.



Available in gas or electric options, the Workman GTX features hundreds of configurable options that include front and rear attachments, a flat bed and four-seat option, to name a few. So whether you are running to different jobs around the property, moving people or materials, or transporting tools to crews that need them, the Workman GTX has the power and versatility to get the job done right.


  • Kohler® EFI gasoline engine, Lithium-Ion battery, or Lead-acid battery powered
  • 2WD with front and rear hydraulic disc brakes.
  • Ground Speed - 16 mph governed
  • Vehicle Capacity: 1,200 lbs.; Towing Capacity: 1,500 lbs.

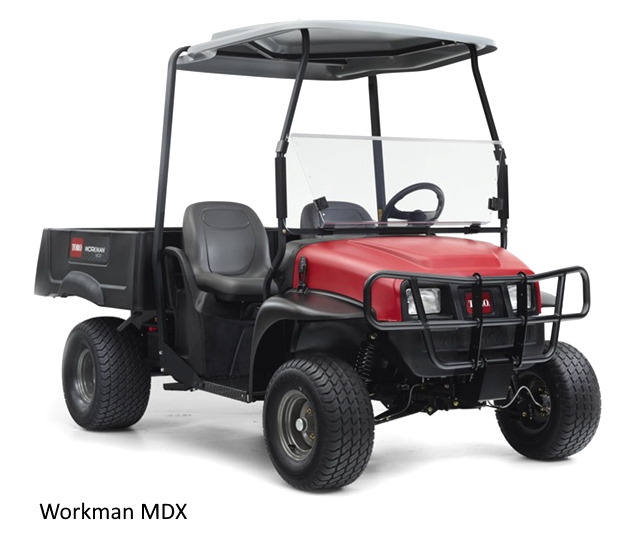

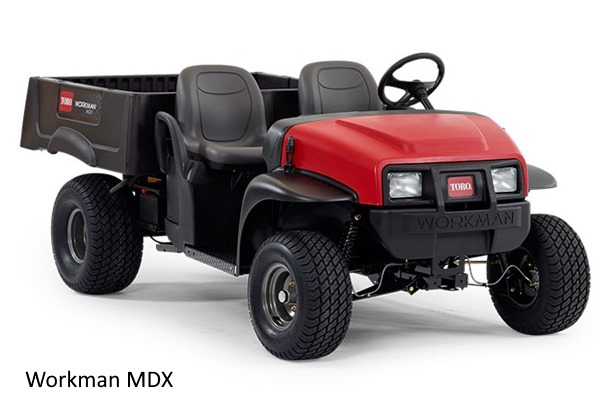

Workman MDX Series

The Workman® MDX features the SRQ™ (Superior Ride Quality) system that delivers a more comfortable ride. The SRQ system on the Workman MDX model is made up of an independent A-frame front suspension, a swing-arm rear suspension and an active in-frame twister joint that dynamically connects the front and rear chassis. The Workman MDX features a durable plastic cargo bed with a load capacity of 1650 lbs.


  • 480cc Briggs & Stratton® Vanguard® gas engine
  • 2WD with front hydraulic disc brakes and rear wheel hydraulic drum brakes
  • 16 mph governed optional to 20 mph w/required ROPS and seatbelts
  • Total payload of 1,650 lbs; Towing up to 1,200 lbs.



Model GTX Gas GTX Electric MDX MDX-D
Engine 429 cc, air-cooled, single
cylinder Kohler gasoline
48 volt brushless
AC induction drive
480 cc, air-cooled,
Briggs & Stratton Vanguard
600 cc, liquid-cooled,
2 cylinder, Kubota diesel
SRQ System -- Active In-Frame twister pivot joint, front and rear suspension
Front Suspension Modified MacPherson Strut, Adj Coil-Over Shocks Modified MacPherson Strut, Adj Coil-Over Shocks
Rear Suspension Articulating Swing Arm, Adj Coil-Over Shocks Trailing Arm, Adj Coil-Over Shocks
Ground Speed 16 mph governed 16 mph governed. Optional 20 mph requires ROPS
Ground Clearance 6.1" 7"
Cargo Bed Size (internal) 40"L x 38.5"W x 11"H 44.5"L x 49"W x 10.25"H
Vehicle Capacity 1200 lbs 1650 lbs
Trailer Towing Capacity 1500 lbs 1200 lbs
