Bradco 3-Point Trenchers
Part #: Bradco-3Trencher
Bradco 3-Point Hitch Trenchers, by Paladin, are available for 15-45 PTO HP hydrostatic tractors. Boom lengths of 2.5 to 5 feet are available to match your jobs specifcations.
Details
**Limited Availability**
(Skid Steer models can be used with the use of 3-pt Adapter Plate)
Bradco 3-Point Hitch Trenchers

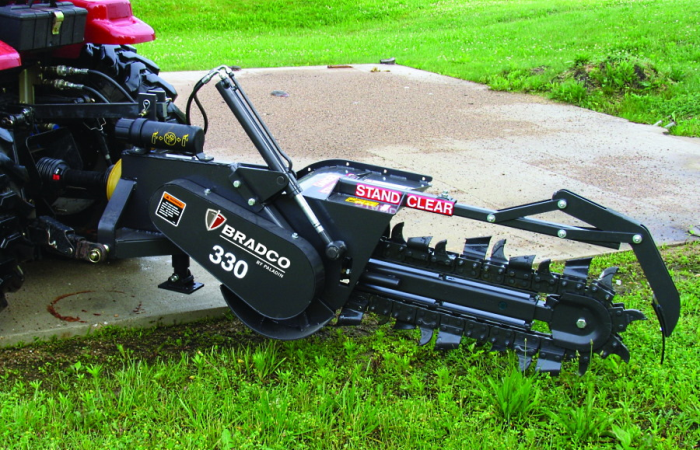

Model 330 - 3-Point Hitch Trenchers
Bradco 330 Trenchers requires rear hydraulics to run the machine. Comes with light/medium duty boom and crumber with replaceable wear strips. Easy installation and operation.
- Category 1ASAE S217.12 standard, three-point mount for 15–30 PTO HP hydrostatic tractors
- Maintenance-free PTO shaft drive with automatic slip clutch for overload protection
- 14" discharge auger
- 30" and 36" digging depth available to fit most applications
- 38,000 lb 1.654" anti-back flex-chain for tooth pattern versatility to support many soil types and conditions
- Compatible with model 615 chains
- ASAE S278.6 standard quick-attach compatible
- Support stand is a standard feature
Model 612 - 3-Point Hitch Trenchers
The Bradco 612 Trencher uses a Category 1, three-point mount for 20–45 PTO HP hydrostatic tractors.
- PTO shaft-drive with heavy-duty slip clutch for overload protection
- Gearbox drive with chain reduction to the head-shaft gives productive digging chain speed
- 24" discharge auger places dirt well away from the trench
- Several tooth options available; Cup, Shark, Rock & Frost
- 50,000 lb 2" anti-back flex-chain
- Two-year limited warranty
3 Point Hitch Models
| Model | Model 330 | Model 612 | ||||
| Boom Size | 30" | 36" | 30" | 36" | 48" | 60" |
| Trench Depth (65° angle) | 30" | 36" | 30" | 36" | 48" | 60" |
| Chain Width | 3", 4.5", 6", 8.5" | 6" | 8" | 10" | 12" | |
| Recom'd Trenching Angle | 65° | 65° | 65° | 65° | 65° | 65° |
| Headshaft Height | 8.5" | 8.5" | 12" | 12" | 12" | 12" |
| Length (3-Point to Headshaft) | 24" | 24" | 24" | 24" | 24" | 24" |
| Spoil Discharge Reach | 21" | 21" | 29" | 29" | 29" | 29" |
| PTO HP Rating | 15-30 hp | 20-45 hp | 20-45 hp | |||
