Ferri Boom Mowers For Utility Tractors

Part #: Ferri-UBoom
The Ferri line of boom mowers for utility and large tractors are available with horizontal reaches from 183 to 246 inches with a cutting capacity up to 2 inches. Designed for tractors between 50 and 110 hp.
Details
Files

Ferri Boom Mowers - Utility and Large Tractors

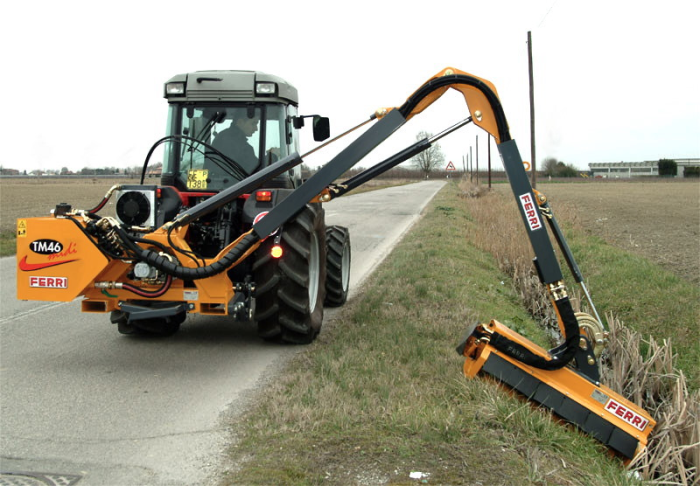

TM Series Boom Mowers

  • Designed for tractors from 50 to 70 hp for performing agricultural and light green maintenance tasks
  • Floating Head - flail head is free to float to follow ground contours
  • Lift float via accumulator
  • "OVERLAP" spiral rotor with two spiral rows
  • Drop forged flail head linkage
  • Optional oil cooler with thermostat
  • Cable controls
  • Mono lever electric controls "Soft Start/Stop" (Electra Model)
  • Reversible rotor
  • Totally independent hydraulic system
  • Direct drive

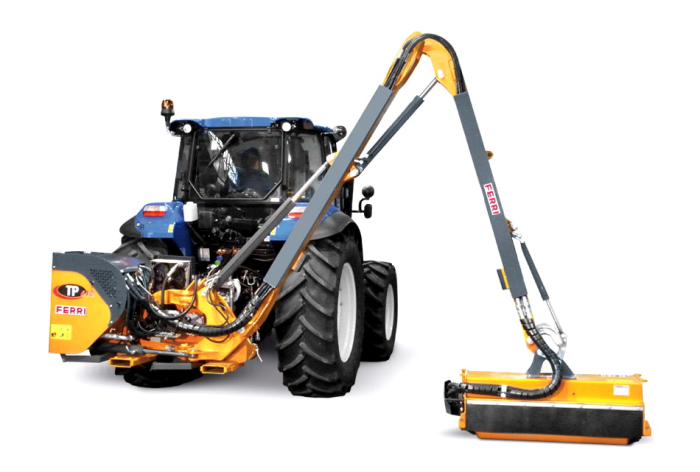

TP Series Boom Mowers

The TP Reach Mower generation is designed to deliver superior performance and durability compared to industry standards. The TP series models are available in the 15'9" and 19'5" outreach versions and offer a wide range of accessories and options that increase versatility and allow users to perfectly meet their work needs. Designed for farmers, medium-sized farms and local vegetation maintenance operators, the new TP reach mowers generation are of a heavy duty design with reliable cast iron pumps and motor.

  • Designed for tractors from 60 to 90 hp for performing agricultural and green area tasks
  • Floating Head - flail head is free to float to follow ground contours
  • Cable controls (Classic Model)
  • Proportional electrical control with electric rotor management (EP-Tronic Model)
  • Drop forged flail head linkage and arm brackets
  • Protection cover available on EP-Tronic controls version
  • Hydraulic breakaway on power slew ram with maximum pressure valve (protects arm in the event of obstacles)

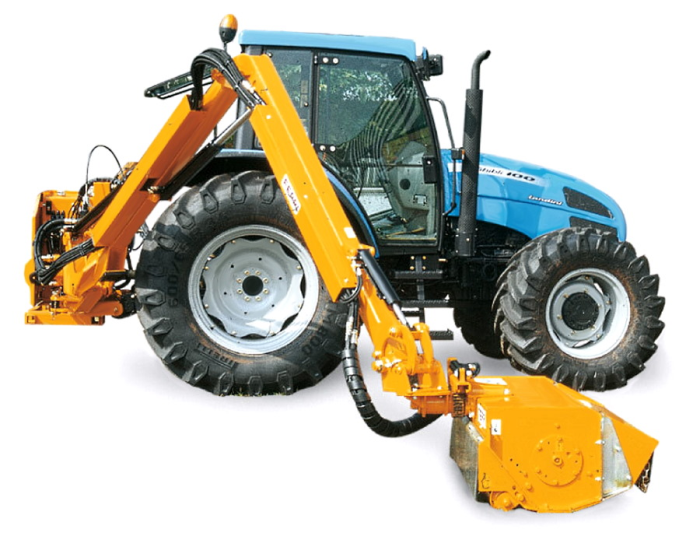

TXV Series Boom Mowers

  • Designed for tractors from 80 to 110 hp for professional ground maintenance
  • Two possible working position of the head, rear position or forward position for better visibility
  • Floating Head - flail head is free to float to follow ground contours
  • Lift float via accumulator
  • Oil cooler with thermostat
  • "BI-METAL" (steel+bronze) bushings on the 1st and 2nd ram pins and carbonized steel bushings on joints
  • "High Performance" cast iron worm gearbox
  • Electro-hydraulic proportional control
  • Prepared beforehand to work in the rear position
  • Totally independent hydraulic system
  • Direct drive to rotor



  TM Series TP Series TXV Series
 Model TM46 TP510 TP610 TXV50 TXV60
 Max Horizontal Reach 15' 3" 15' 9" 19' 5" 17' 2" 20' 6"
 Width of Cut 47" 47" 47" 47" 47"
 Cut Capacity 1.75" 1.75" 1.75" 2" 2"
 Flail Head Angle 190° 190° 190° 235° 235°
 3-Point linkage Cat II Cat II Cat II Cat II Cat II
 Tractor Horsepower 50-70 hp 60-80 hp 70-90 hp 80-100 hp 90-110 hp
 Weight w/Flailhead 1713 lbs 1984 lbs 2094 lbs 2755 lbs 2855 lbs
