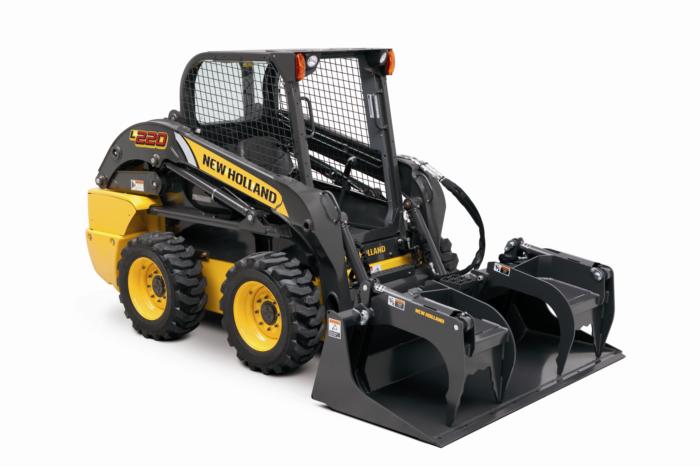

New Holland Scrap Grapple

Part #: Scrap Grapple
60" Utility
66" Utility
72" Utility
76" Construction
82" Construction
88" Construction
Details

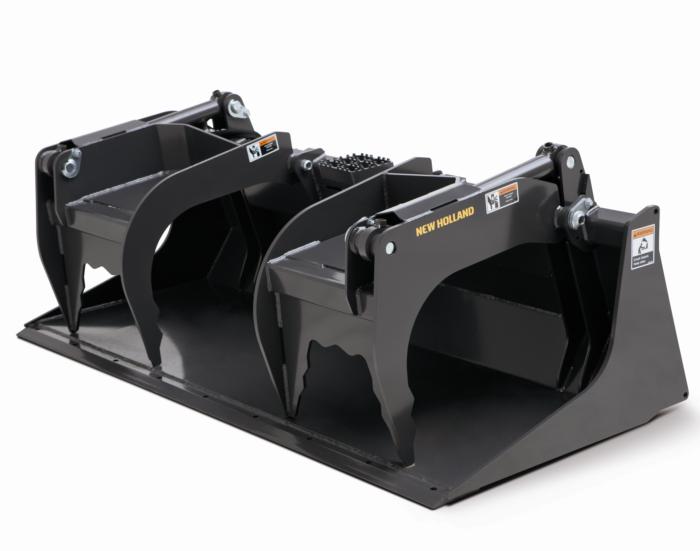

New Holland Scrap Grapple
60" Utility
66" Utility
72" Utility
76" Construction
82" Construction
88" Construction

Features:

  • Standard cylinder guards protect all cylinder components

  • Standard load check valve for positive clamp force
  • Dual independant grapples
  • Bucket edge drilled for replaceable cutting edge
  • includes hoses and quick disconnects
  • 1-1/4" cylinder pivot pins
  • 1-1/4" x 24" grapple pins reduce torsional force
  • 1/2" end plates
  • Cushioned cylinders - 2" x 8" x 1-1/4"
  • Optional bolt-on edges available



Construction Model Uitlity Model

Throat Opening Grapple Open - 40"
Throat Opening Grapple Closed - 20"
Overall Depth - 38"

Throat Opening Grapple Open - 34"
Throat Opening Grapple Closed - 19-3/4"
Overall Depth - 36"
