New Holland Brush Grapples

Part #: Brush Grapples
66" Utility
72" Utility
72" Construction
78" Construction
84" Construction
90" Construction
Details

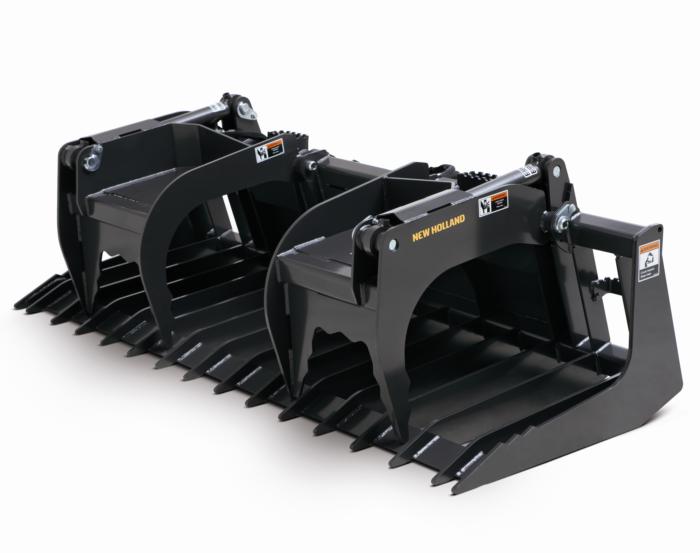

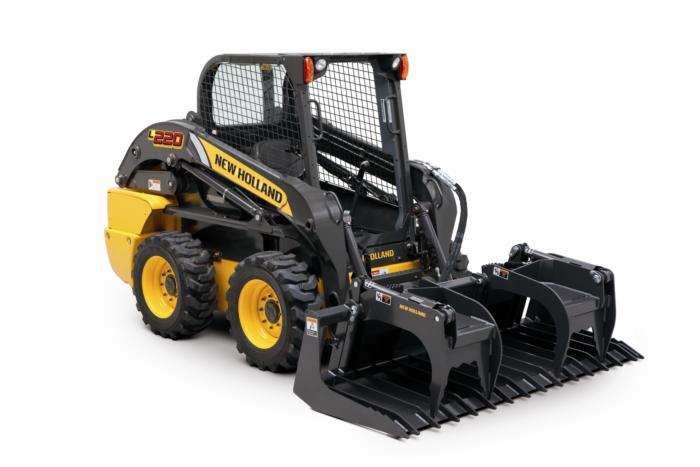

New Holland Bush Grapple
66" Utility
72" Utility
72" Construction
78" Construction
84" Construction
90" Construction

Features (All Models):

  • Dual independant see-through grapples
  • 6" tine spacing
  • Standard cylinder guards protect all cylinder components
  • 1-1/4" cylinder pivot points
  • 1-1/4" x 24" grapple pins greatly reduce torsional force
  • Cushioned and sleeved cylinders - 2" x 8" x 1-1/4"
  • Standard load and check valve for positive clamp force
  • 100K psi yield strength tine material.



Construction Model Unitlity Model
  • 1/2" end plates
  • Throat opening grapple open - 40"
  • Throat opening grapple closed - 16-1/2"
  • Overall depth - 39"
  • 3/8" end plates
  • Throat opening grapple open - 29"
  • Throat opening grapple closed - 17-3/8"
  • Overall depth - 36"



Requirements:

  • Standard auxiliary boom hydraulics
