76C Windrow Pick-up Header for CR/CX Combines

Part #: 76C

You’ll gather wider windrows and save more grain with the new 12- and 15-foot 790CP windrow pickup headers from New Holland. Both models are designed to operate at faster field speeds with reduced seed loss to boost your harvesting productivity.

Details
Files

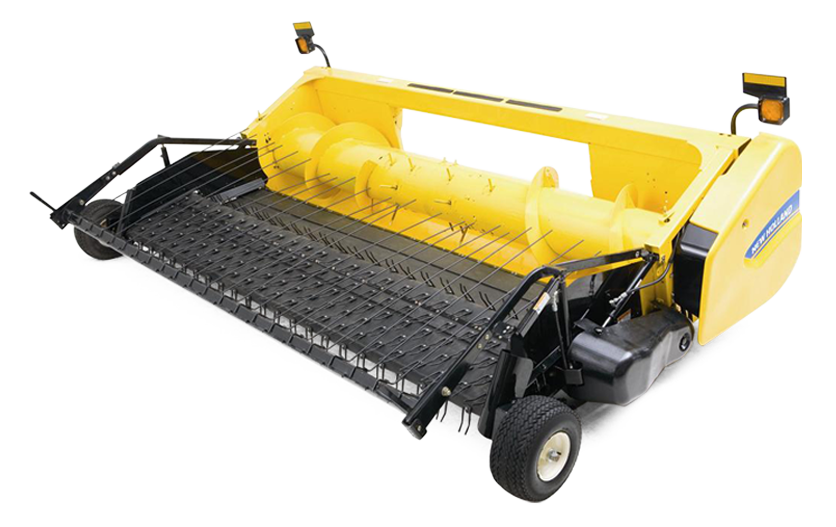

The 76C windrow pick-up header is available in 12, 14 and 16-foot widths and two designs: SwathMaster™ Belt Pick-up and Rake-Up™ Pick-up. SwathMaster™ Belt Pick-up uses four individual rollers, a pickup belt that gently lifts crop into the header and a draper belt that carries the crop to the auger and into the feeding area. Choose a model with both front and rear windguard and hydraulic adjustment on the front windguard, or choose a model with a rear windguard with mechanical adjustment.

Models:
76C available in widths 12 (grass seed only), 14 and 16 ft.

Features:

  • Wider Picking: The 15-foot windrow pickup uses three five-foot belts and offerst wo feet more picking width than the previous 14-foot model and 8.5 inches more then the previous 16-foot header.
  • Save more grain and seeds: Both the 12- and 15-foot modesl use fewer belts than competitive models, reducing the risk of seed loss between belts.
  • Excellent flotation: The flexing pickup frame allows up to 12 inches of flex within the frame to smoothly follow rough terrain.
  • Smooth feeding: A 26-inch-diameter floating auger with five-inch flighting handles heavy crop and feeds it smoothly into the combine.
