Sweepster Rear-Mounted Angle Broom

Part #: Rear Broom

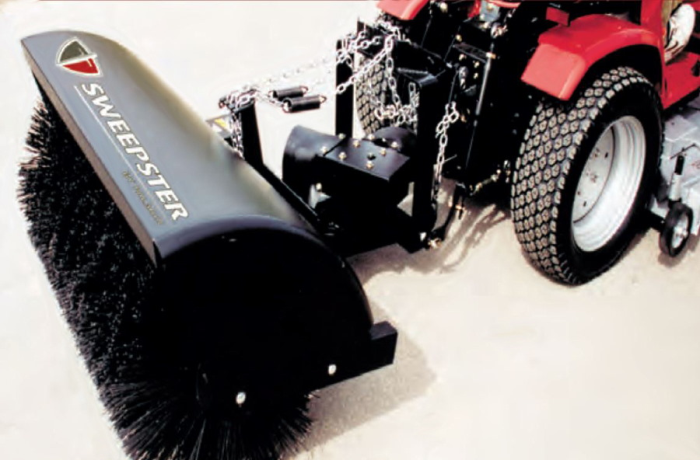

Sweepster's rear-mounted sweepers mount to all compact utility tractors.
Details
Rear-Mounted Angle Brooms

Sweepster's rear-mounted sweepers mount to all compact utility tractors.

  • RMRM Series for tractors up to 30 hp.
  • RHFA Series for tractors over 30 hp.
  • Angles manually 30° left or right; hydraulic angling also available.
  • Driven from rear 540 PTO via telescoping drive shaft and heavy-duty gearbox or tractor hydraulic drive.
  • Lifts from tractor 3-pt hitch ASAE cat. I or II.
  • Includes steel hood, chain shield, height adjustment chains and mounting pins.
  • Choice of polypropylene or poly/wire sets.
  • T-Shaft gearbox allows for reversal of brush rotation on mechanical drive.
Series RMRM RHFA
Sweeping Width 48" 60" 72" 60" 72" 84" 96"
Sweeping Width @ 30° 40" 52" 64" 52" 64" 76" 88"
Weight 370 lbs 430 lbs 490 lbs 880 lbs 940 lbs 1000 lbs 1060 lbs
Brush Diameter 24" 32"
HP Range up to 30 hp 30+ hp
