New Holland Windrow Mergers

Part #: WMerger

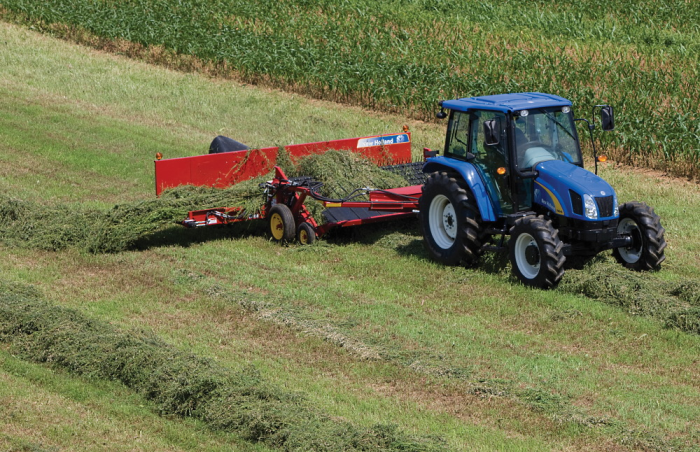

Squeeze more out of every acre by making each pass a more productive one. The H5400 series windrow mergers combine swath paths to efficiently match windrow width and density to forage harvester or baler capacity. Gentle action ensures a premium crop, and fewer trips through the field reduce fuel use, wheel traffic, labor and production costs. Bring it all together and get ready for a more profitable harvest.
Details

GET IN LINE FOR BIGGER PROFITS

Squeeze more out of every acre by making each pass a more productive one. The H5400 series windrow mergers combine swath paths to efficiently match windrow width and density to forage harvester or baler capacity. Gentle action ensures a premium crop, and fewer trips through the field reduce fuel use, wheel traffic, labor and production costs. Bring it all together and get ready for a more profitable harvest.

THREE MODELS, MORE OPTIONS, ALL THE RIGHT FEATURES

If well-matched, high-quality windrows are what you're after, then we've got you covered. A choice of three models, with optional extensions and attachments, let you match the configuration to your operation. Plus, a gentle floating pickup comes standard so you get everything you want in a windrow, and nothing you don't.

CENTER-PULL MODEL

Powered by a 70 hp tractor with one remote, the center-pull crop merger offers a simple, economical way to merge windrows up to 12 feet. Extensions are available to expand the merge area up to 14 feet.

SIDE-PULL MODELS

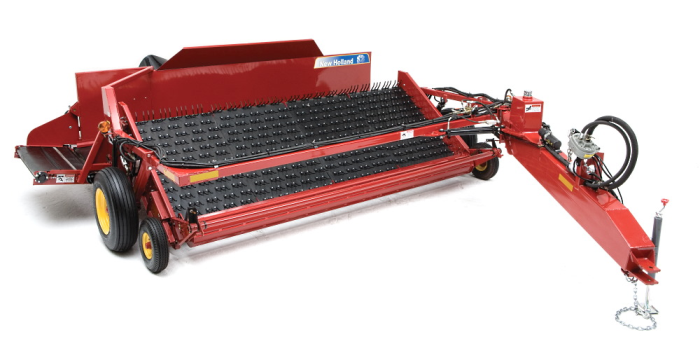

For larger acreage, choose between two side-pull models. The convenient hydraulic swing-tongue design provides offset operation, so tractor tires stay away from the crop swath. Both the 9-ft H5420 and the 12-ft H5430 can be outfitted with extensions to increase merging area to 18 feet.

A CONVEYER BELT DESIGNED RIGHT

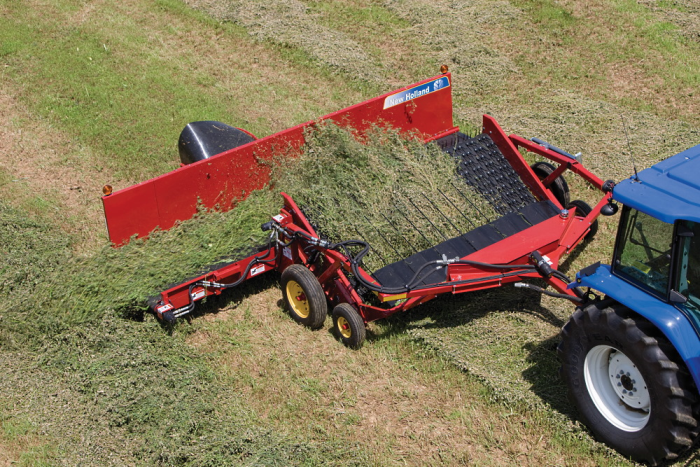

The 42-inch conveyer efficiently transfers crop with a ribbed belt that provides a sure grip and extra high back panels to keep crop from exiting early. An anti-wrap device on the bearings prevents crop from wrapping and damaging bearing seals.



  H5410 H5420 H5430
Center Pull Side Pull Side Pull
Pickup
Width 108" 108" 144"
Type Spliced belt w/plastic fingers
Cross Conveyor
Width 42" 42" 42"
Length 170.8" 175.5" 175.5"
Drive Type Hydraulic Hydraulic Hydraulic
Discharge Side Right - left to invert only Right - left to invert only Right - left to invert only
Optional Conveyor Extensions 2' 2', 4', 6' 2', 4', 6'
Optional Conveyor, folding or fixed Fixed Hydraulic Folding Hydraulic Folding
Merging Capability
Base Unit 9' to 12' 9' to 12' 9' to 12'
With 2-ft Extension 11' to 12' 9' to 14' 9' to 14'
With 4-ft Extension -- 9' to 16' 9' to 16'
With 6-ft Extension -- 9' to 18' 9' to 18'
Tractor Requirement
Hydraulic Flow 16 gpm @ 2000 psi 16 gpm @ 2000 psi 16 gpm @ 2000 psi
Tractor Size 70 hp 70 hp 70 hp
