Economy Disc Mowers

Part #: HM-DiscMower

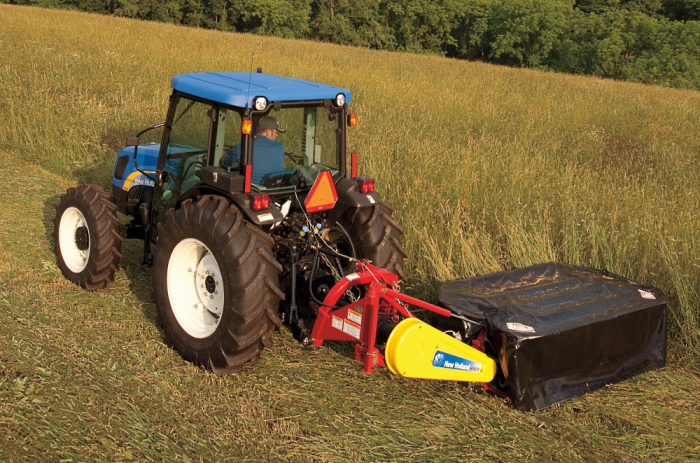

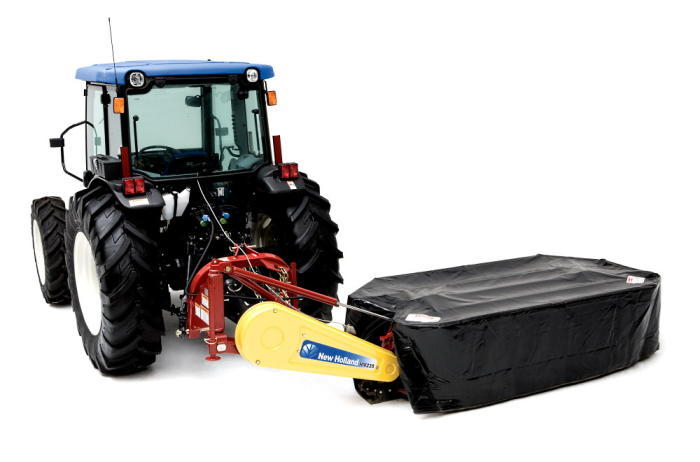

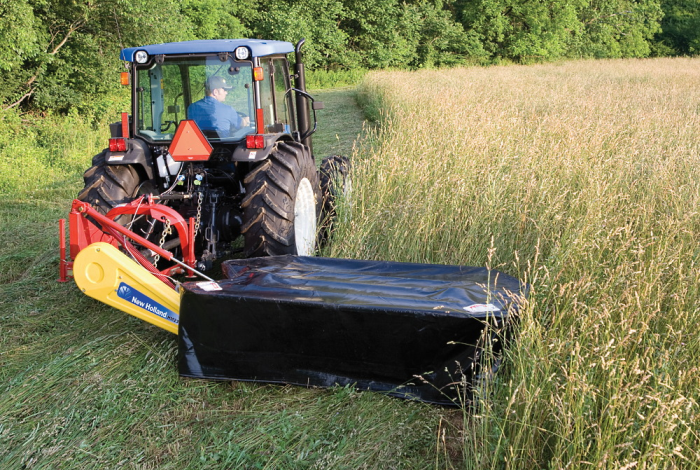

The New Holland HM Series disc mowers deliver smooth, fast cutting speeds at a price that fits any budget. Available in three sizes — with cutting widths from 5 feet, 6 inches to 7 feet, 11 inches — these durable machines can mow through tough crops and rough field conditions.
Details

New Holland Disc Mowers - HM Series

FAST MOWING SPEEDS AT A PRICE THAT GOES EASY ON THE WALLET

The New Holland HM Series disc mowers deliver smooth, fast cutting speeds at a price that fits any budget. Available in three sizes — with cutting widths from 5 feet, 6 inches to 7 feet, 11 inches — these durable machines can mow through tough crops and rough field conditions.

VERSATILITY

Use your HM Series disc mowers to conveniently mow fields, roadsides, around ponds and buildings.

CLEAN, HIGH SPEED CUTTING

Slice through thick crops, even gopher mounds, at high speed with the HM Series disc mowers. Depending on the model, four, five or six low-profile, oval cutting discs use two knives per disc to slice through the wet grasses. Knives, made of high-quality steel, are reversible for twice the cutting life.

EASY OPERATION

The simple design of HM Series disc mowers make them easy to use. A single-acting hydraulic cylinder makes it easy to lift the cutterbar at the end of each pass. Right-side swath divider wheel separates each cut path.



  HM234 HM235 HM236
Cutter Bar
Cutting Width 5'6" 6'9" 7'11"
Cutting Height 0.63" to 2.36" 0.63" to 2.36" 0.63" to 2.36"
Tilt Angle 0° to -8° 1° to -8° 2° to -8°
Operating Range +18° to -30° +18° to -30° +18° to -30°
Number of Discs 4 5 6
Knives per Disc 2 2 2
Tractor Requirements
Minimum PTO Horsepower 35 hp 40 hp 50 hp
Minimum Relief Pressure 2320 psi 2320 psi 2320 psi
Hitch Cat. I or II Cat. I or II Cat. II
