ProRotor Rotary Hay Rakes

Part #: NH-ProRotor
Like a mechanical pitchfork; with long flexible tines each ProRotor™ rake tine arm lifts and carries the crop delivering it into the windrow. The tines never need to touch the soil, so there is little risk of contaminants being swept into the windrow.
Details

New Holland ProRotor Hay Rakes

ProRotor Rotary Rakes

RAKE CLEANER, SAVE MORE LEAVES

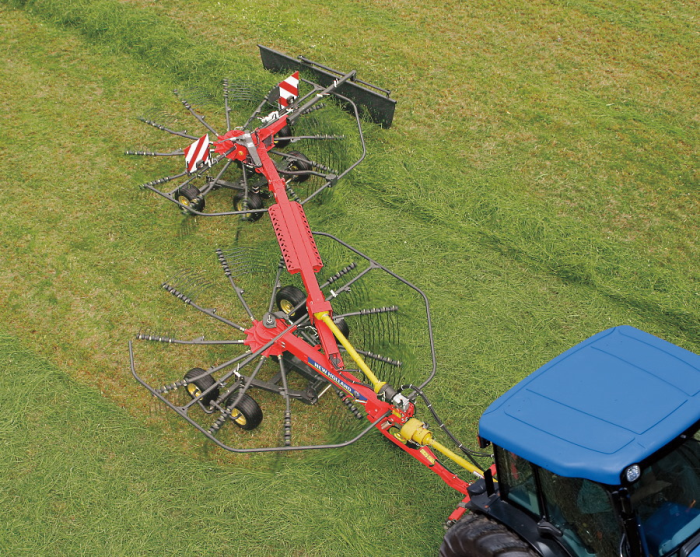

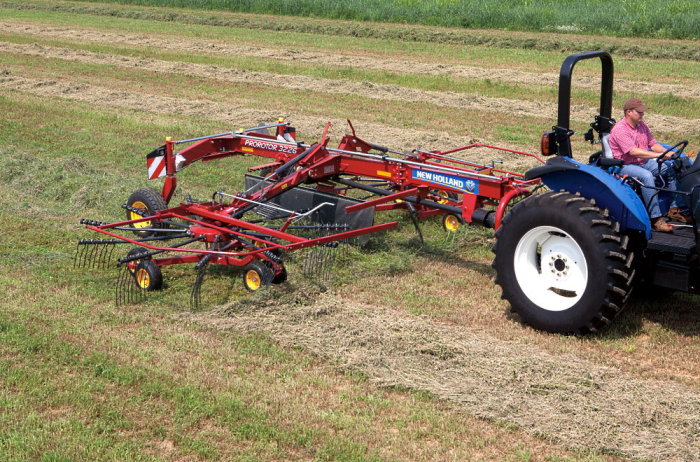

Like a mechanical pitchfork; with long flexible tines each ProRotor™ rake tine arm lifts and carries the crop delivering it into the windrow. The tines never need to touch the soil, so there is little risk of contaminants being swept into the windrow. The rotary action builds a well-shaped windrow without roping that promotes continued drying so you can rake earlier which helps retain delicate leaves producing higher quality forage.

CURVED TANGENTIAL MOUNTED ARMS

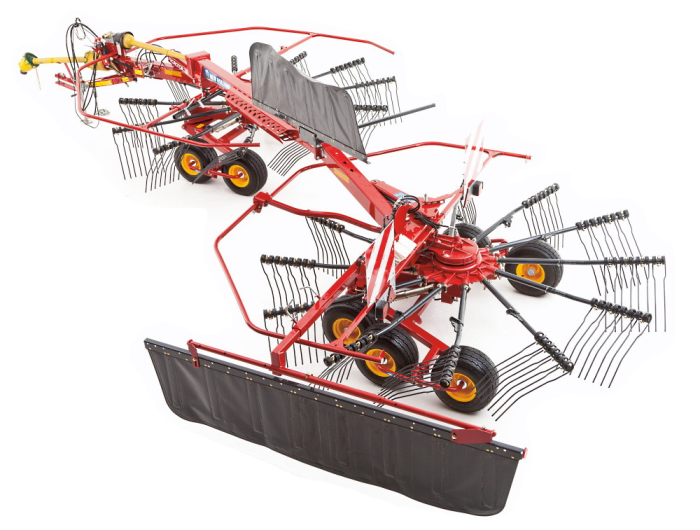

ProRotor tine arms are mounted at a tangent placing the tines are in the optimum position gather your hay. The smooth cam action and specially formed tine arm curve lift the tines quickly as hay is deposited into the windrow, resulting in an even and consistent windrow. To handle your heaviest crops each tine arm is secured by a through bolt and clamping bolt for high-reliability.

LONG FLEXIBLE RAKE TINES

Individual raking tines are uniquely shaped to provide more equal tine spacing improving coverage to reduce missed crop. With the capacity to handle the heaviest of crops individual tines have three spring coils for flexibility to protect the stubble from inadvertent contact. Each tine is securely bolted and coils wrap around the tine arm, for extra piece of mind optional tine saver clips are available.



 Model 3114 3223 3226
 Working Width, single windrow 13' 9" 21' 8" 23'
Working Width, double windrow -- 23' 3" 25' 7"
 Number of Rotors 1 2 2
 Rotor Diameter 11' 9' 8" 11'
 Swath Delivery Left Left Center
 Transport Width 6' 7" 7' 3" 9' 2"
 Tractor Requirement 20 hp 50 hp 50 hp
