ALO-Quicke Front Loaders

Part #: QuickeLoader
The world is changing, and so is farming. We are all for embracing that change. Everything Quicke does, down to the tiniest weld run, is with one thing in mind: Making the man in the machine more efficient – through superior quality and smart details built into our products. At Quicke we have had more than seven decades to perfect our flagship front loaders
Details
Files

Quicke Front End Loaders

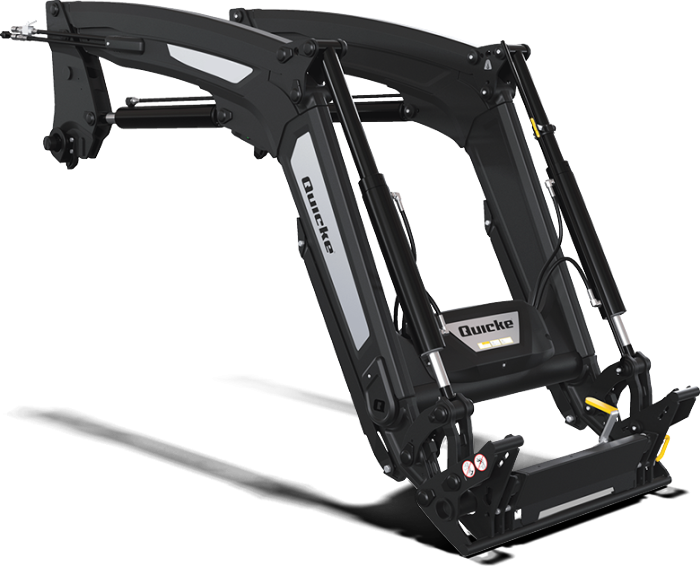

Q-Series - For the professional user. The Q-series front end loader is constructed for modern farming. A digital integrated front end loader that maximizes your tractor’s potential.

Quicke Q-series shows how clever engineering makes all the difference. These front loaders come with outstanding visibility, optimized work angles, and smooth and easy implement changes. Back all that up with the intelligence of Q-companion, and you just won’t find a more high-functioning, usable front loader.

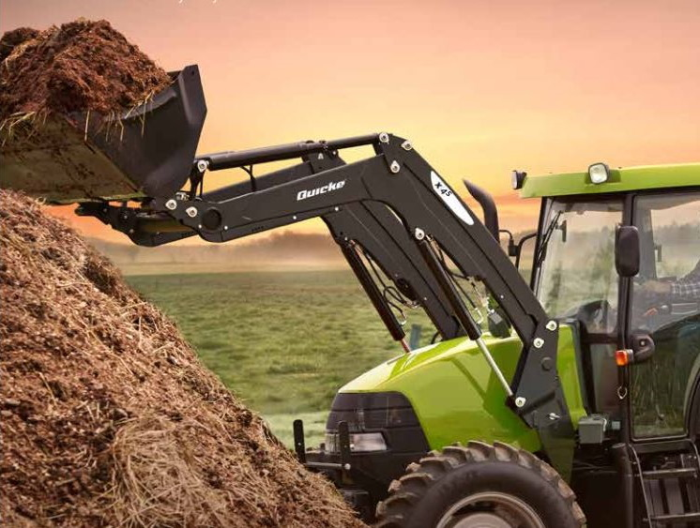

X-Series - The optimum range of front end loaders for tractors up to 120 hp. These front end loaders combine design, performance and economy in a unique way.

With X-series we are giving you yet another first class alternative for small to medium-sized tractors. This series of front loaders combines design, performance and economy in a unique manner - so that your route to profitability will be as easy as possible.



Q-Series Non Self-Levelling Self-Levelling
Model Q3 Q4 Q5 Q6 Q3S Q4S Q5S Q6M Q7M Q8M
Tractor Requirements
PTO Horsepower Range 60-100 80-140 100-180 120-220 60-100 80-140 100-180 120-220 140-280 160+
Required Flow (gpm) 13.2 15.9 21.1 23.8 13.2 15.9 21.1 23.8 26.4 26.4
Maximum Lift Heights
At Pivot Pin 11' 7" 12' 5" 13' 4" 13' 11" 11' 7" 12' 5" 13' 4" 13' 11" 15' 1" 16' 3"
Under Level Bucket 10' 8" 11' 5" 12' 4" 12' 11" 10' 8" 11' 5" 12' 4" 12' 11" 14' 1" 15' 3"
Bucket Angles
Maximum Dump Angle 58° 58° 56° 57° 58° 58° 57° 57° 54° 53°
Maximum Rollback Angle 48° 48° 48° 48° 48° 48° 48° 48° 49° 47°
Lift Capacities (31.5" from Pivot Pin)
To Max Height (lbs) 2755 2844 2866 3505 3417 4232 4365 5445 5490 5710
To 59" Height (lbs) 3637 3792 4122 4652 3461 4277 4629 5952 6195 6195
Breakout Force (lbs) 3946 4078 4563 5004 3593 4387 5048 6261 6591 8003





X-Series Without Parallel Linkage With Parallel Linkage
Model X1 X2 X3 X4 X5 X1S X2S X3S X4S X5S
Tractor Requirements
PTO Horsepower Range 30-60 40-70 50-80 60-100 70-120 30-60 40-70 50-80 60-100 70-120
Maximum Lift Heights
At Pivot Pin 9' 6" 10' 2" 11' 1" 12' 1" 12' 9" 9' 6" 10' 2" 11' 1" 12' 1" 12' 9"
Under Level Bucket 8' 10" 9' 6" 10' 6" 12' 1" 12' 9" 8' 10" 9' 6" 10' 6" 12' 1" 12' 9"
Lift Capacities (31.5" from Pivot Pin)
To Max Height (lbs) 2160 2667 3020 3351 3681 2579 3086 3439 3770 4166
To 59" Height (lbs) 1499 1918 2138 2226 2381 2116 2689 3351 3505 3703
Rollback Force (lbs) 3284 4144 4210 5070 6084 3306 4210 4166 5026 6040
