Worksaver Landscape Rakes

Part #: Worksaver-LR
Ideal for grading, leveling, spreading topsoil, removing stones as well as maintaining ball diamonds and horse exercise arenas.
Details

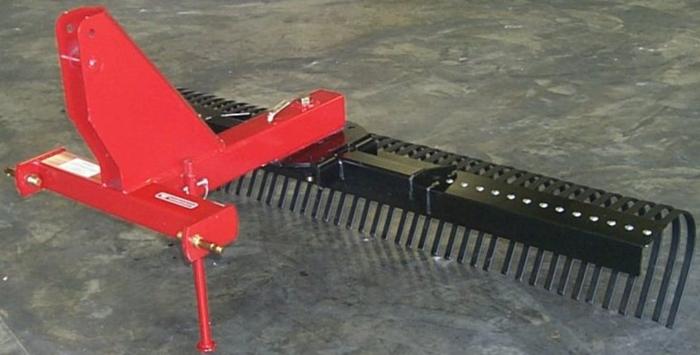

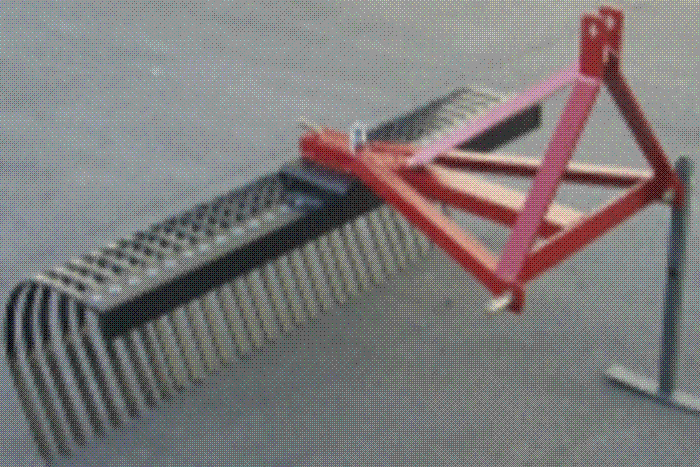

Worksaver Landscape Rakes

Ideal for grading, leveling, spreading topsoil, removing stones as well as maintaining ball diamonds and horse exercise arenas. All units utilize 5/16" x 1" x 15" heat treated spring steel tines which are individually bolted to the tine bar and supported by a “waffle plate” for added strength. LRHD-series rakes are Cat. I quick hitch compatible and are supplied with a parking stand for easy hook-up. All models are shipped with 7/8" pins.



 Model Standard Duty Heavy Duty
MCR-6 MCR-7 LRHD-6 LRHD-7 LRHD-8
 Rake Width 72" 84" 72" 84" 96"
 Weight 187 lbs 199 lbs 279 lbs 305 lbs 331 lbs
 Max Tractor HP 40 hp 60 hp
 Frame Size 3" x 2.5" Formed Channel 4" x 4" Square Tube
 A-Frame Bolted Straps Welded Mast
 3-Pt Hitch Cat. 1 Cat. 1
 Tine Bar Size 3.5" x 2.5" 6" x 3.5"
 Tine Size 5/16" x 1" 5/16" x 1"
 Rake Positions 3 forward / 2 reverse 3 forward / 2 reverse
