Agrimetal Leaf and Debris Collector

Part #: Agrimetal-Collector
The AgriMetal Collector is a stand-alone unit with an independent pickup head featuring a rotative flails. Leaves and debris are sucked into both sides of the impeller and has only a few inches to travel to the hopper. So, as a result it is like having 2 blowers housing and 2 impellers on each collector.
Details

Agrimetal Leaf and Debris Collectors

AgriMetal’s creative designers built a large diameter impeller and put it inside the pickup head. A leaf & debris collector designed to be towed behind lawn & garden tractors. The AgriMetal Collector is a stand-alone unit with an independent pickup head featuring a rotative flails. Leaves and debris are sucked into both sides of the impeller and has only a few inches to travel to the hopper. So, as a result it’s like having 2 blowers housing and 2 impellers on each collector.

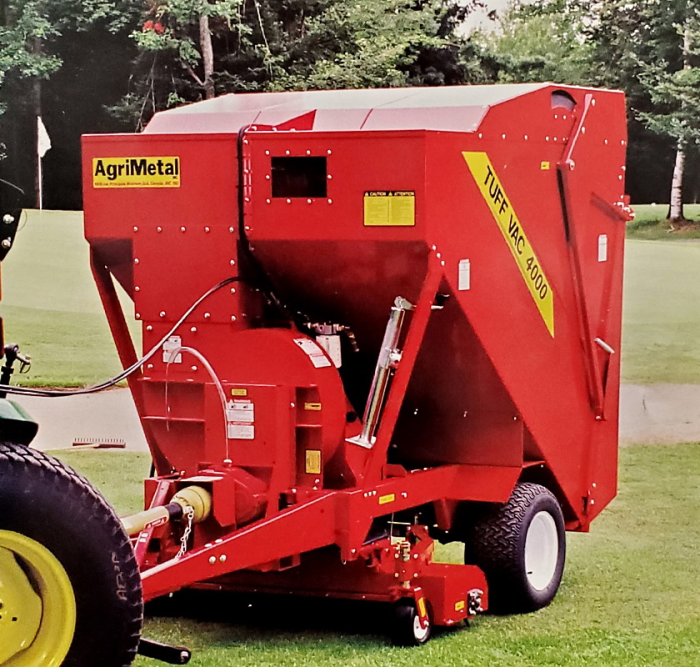

  Model 4420 Tuff Vac 4000
 Pick Up Head Width 44" 60"
 Hopper Capacity 2 cu.yd. 4 cu.yd.
 Overall Length 96" 121"
 Overall Width 51" 66"
 Overall Height 68" 85.5"
 Unit Weight 920 lbs 1958/1924 lbs (Gas/PTO)
 Impeller Size 22.5" x 9" 18.5" x 5"
 Number of Blades 12 6
 Hitch Adjustable Drawbar Adjustable Drawbar
 Power Source 7.5 hp Vanguard Engine 28 hp Subaru Engine or 30 PTO HP
