FFC Side Discharge Bucket
Part #: FFC-SDBucket

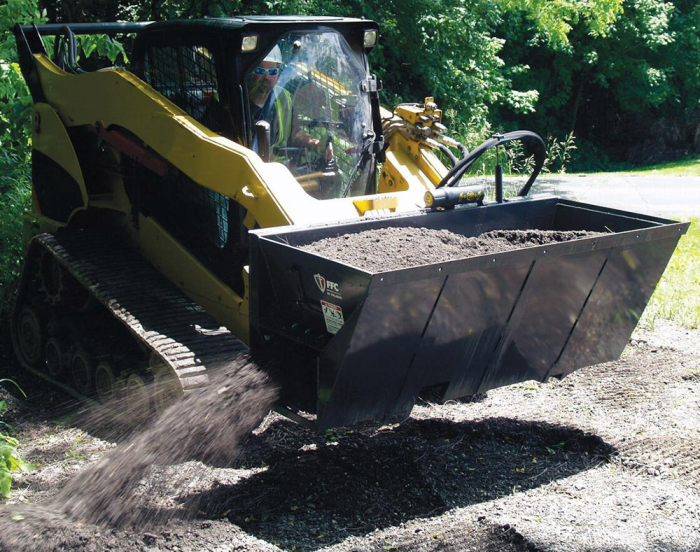

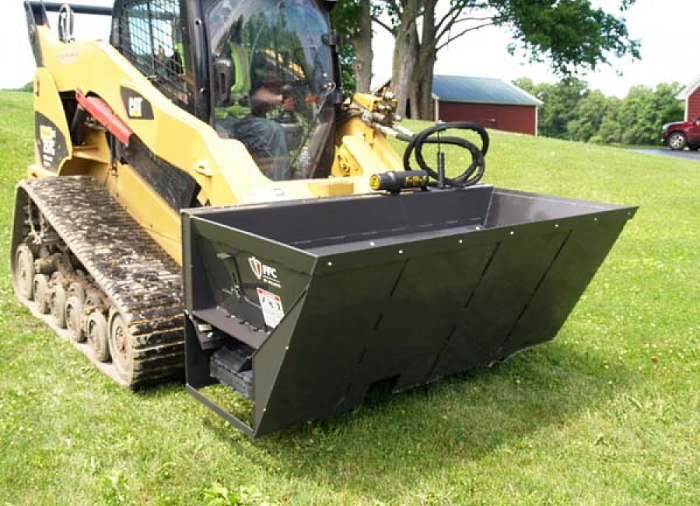

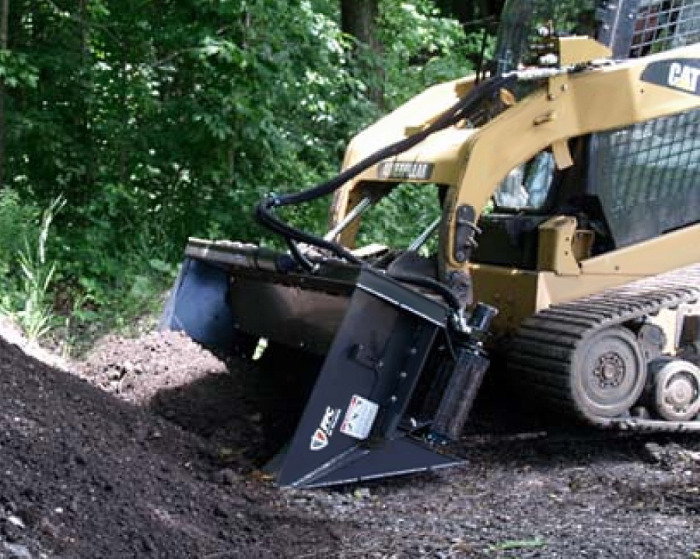

FFC Side Discharge Buckets, by Paladin, provide the power and precision you need to lay sand, saw dust, feed and other materials for agricultural road maintenance, and sandbagging applications.
Details
FFC Side Discharge Bucket
FFC Side Discharge Buckets, by Paladin, provide the power and precision you need to lay sand, saw dust, feed and other materials for agricultural road maintenance, and sandbagging applications.
Sand Discharge Bucket
- Removable belt cover to keep weight off belt and reduce stalling
- 13.5" wide belt with 0.5" tall grouser
- Direct hydraulic drive for conveyor
- Right or left discharge
- Belt driven by cast steel sprockets
- Bucket edge drilled for bolt-on edge
- No tool adjustment for discharge doors
Sawdust Discharge Bucket
- Material agitator to prevent bridging
- Direct hydraulic drive for agitator versus chain and sprocket drive
- 15" wide belt with 1" tall grouser
| Sand Models | Sawdust Models | |||
| Width | 60" | 72" | 72" | 84" |
| Overall Height | 31.1" | 31.1" | 44.6" | 44.6" |
| Overall Depth | 40.0" | 40.0" | 46.5" | 46.5" |
| Capacity | 60.75 cu.ft. | 66.75 cu.ft. | 76.0 cu.ft. | 82.0 cu.ft. |
| GPM Range | 15-25 gpm | 15-25 gpm | 15-25 gpm | 15-25 gpm |
| Weight | 805 lbs | 915 lbs | 1120 lbs | 1300 lbs |
 |
|
