Construction Attachments Pallet Forks

Part #: CA-PForks
Designed to handle a wide range of jobs for lifting and carrying a wide variety of materials. Ideal for construction, agriculture, landscaping, industrial and many other applications.
Details

Construction Attachments Pallet Forks

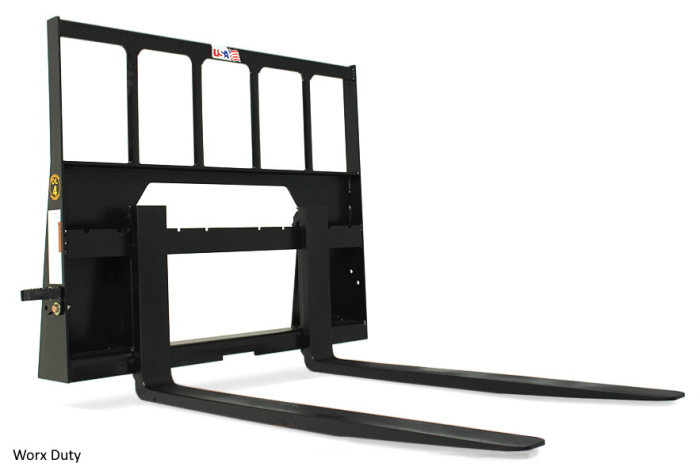

Worx Duty Pallet Forks - The Worx Duty Pallet Frame/Fork is designed to handle a wide range of jobs for lifting and carrying a wide variety of materials. Ideal for construction, agriculture, landscaping, industrial and many other applications.

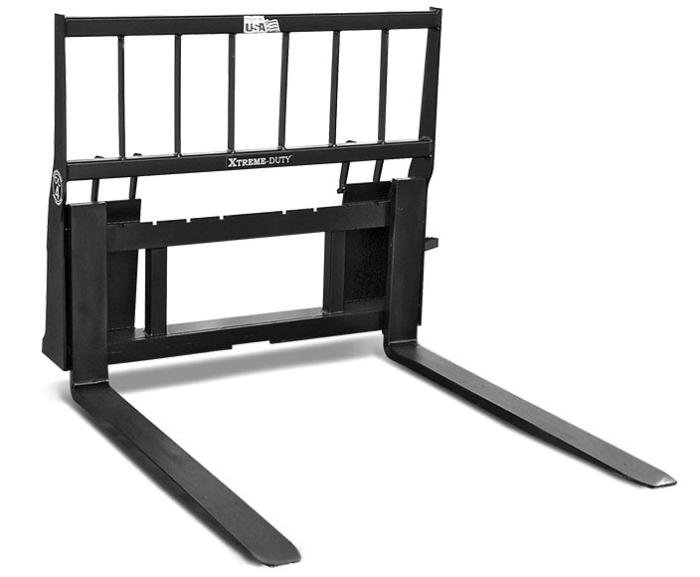

Xtreme Duty Pallet Forks - Pallet Forks designed for skid steer and tractor loaders with top guard designed for optimum visibility. Adjustable fork widths from 6 ½" to 44 ¾" for standard frames, and from 6 ½" to 56 ½" for wide frames. Forged tines meet ITA standards.

Xtreme Duty Heavy Lift Pallet Forks - Pallet Forks designed with heavy lift capacity for skid steer and tractor loaders. Top guard is designed for maximum visibility. Adjustable fork widths from 6.5” to 44.75” for standard frame and from 6.5” to 56.5” for wide frame. Forged tines meet ITA standards for strength and durability.

Xtreme Duty Shaft Mount Pallet Forks - Pallet Forks designed for skid steer loaders with a top guard which provides maximum operator visibility, and adjustable pallet fork widths from 1.5" to 44.75" and a 1.75 diameter shaft. Available in 48" for length with regular (4,200 lbs) and heavy lift (5,500 lbs) capacities.

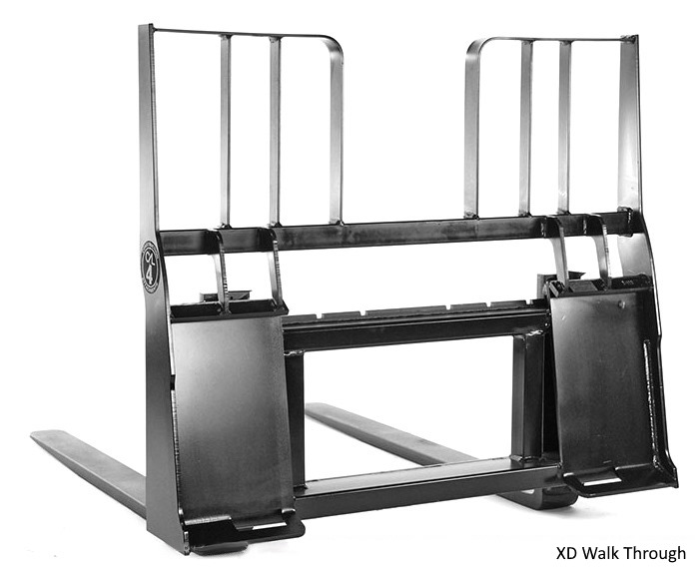

Xtreme Duty Walk-Through Pallet Forks - Walk-Through Pallet Forks designed for loading, unloading and transporting bulky, baled or palletized material. 14" opening with radius corners and over 15" of headache rack on each side of the frame for payload support.

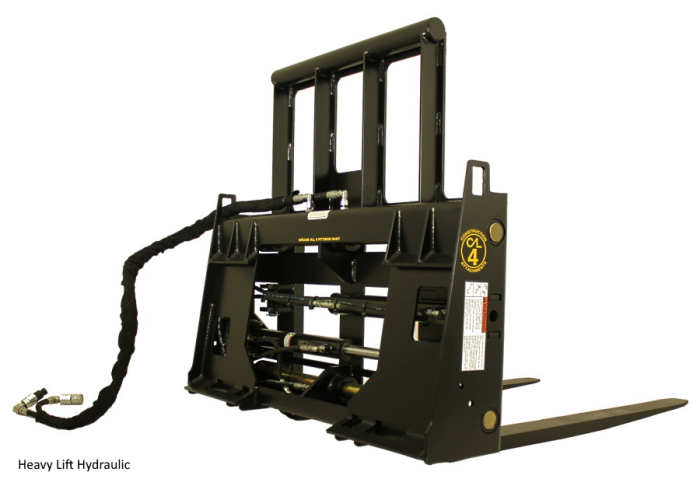

Heavy Lift Hydraulic Pallet Forks - Heavy Lift Hydraulic Pallet Forks For Skid Steer and Tractor Loaders up to 100 Horsepower. Uses hydraulic dual cylinders to adjust the width between forks without leaving the operators seat.



Series Fork Lengths Adj. Fork Width Fork Size Frame Width Lift Capacity
Worx Duty   42", 48" 6-1/2" to 44-3/4" 4" x 1-3/8" 45" 4200 lbs
Xtreme Duty - Standard Frame   42", 48", 60" 6-1/2" to 44-3/4" 4" x 1-3/8" 45" 4200 lbs
Xtreme Duty - Wide Frame   42", 48", 60" 6-1/2" to 56-1/2" 4" x 1-3/8" 57" 4200 lbs
XD Heavy Lift - Standard Frame   42", 48", 60", 72" 6-1/2" to 44-3/4" 4" x 1-1/2" 45" 5500 lbs
  96" 6-1/2" to 44-3/4" 4" x 1-3/4" 45" 6400 lbs
XD Heavy Lift - Wide Frame   42", 48", 60", 72" 6-1/2" to 56-1/2" 4" x 1-1/2" 57" 5500 lbs
  96" 6-1/2" to 56-1/2" 4" x 1-3/4" 57" 6400 lbs
XD Shaft Mount   48" 1-1/2" to 44-3/4" 4" x 1-3/8" 45" 4200 lbs
XD Shaft Mount - Heavy Lift   48" 1-1/2" to 44-3/4" 4" x 1-1/2" 45" 5500 lbs
XD Walk Through   42", 48", 60" 6-1/2" to 44-3/4" 4" x 1-3/8" 45" 4200 lbs
XD Walk Through - Heavy Lift   42", 48", 60", 72" 6-1/2" to 44-3/4" 4" x 1-1/2" 45" 5500 lbs
  96" 6-1/2" to 44-3/4" 4" x 1-3/4" 45" 6400 lbs
Heavy Lift Hydraulic   48" 12" to 44" 4" x 1-1/2" 45-1/2" 5500 lbs
