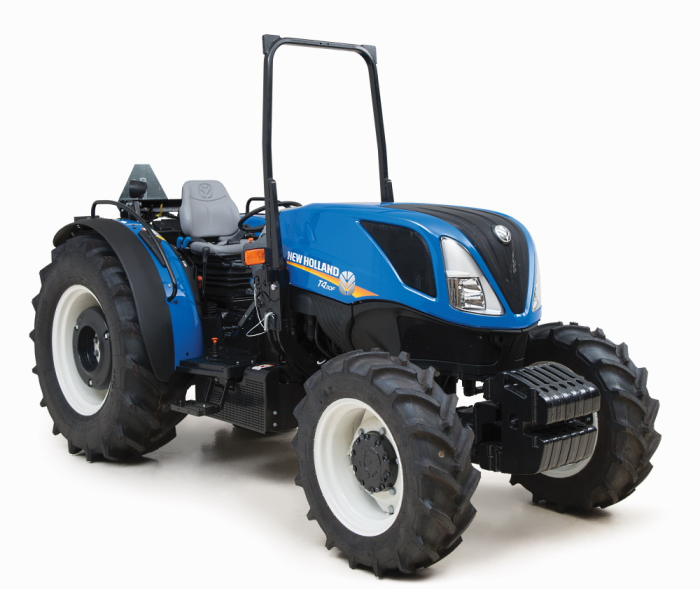

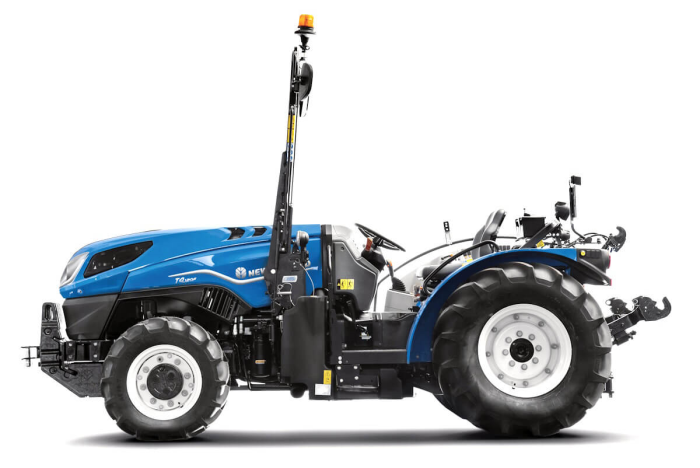

New Holland T4F Narrow Tractor

Part #: T4000F
From the world’s leading supplier of narrow tractors, New Holland T4F Series narrow tractors combine more power and a bold new style with enhanced operator comfort and safety.
Details
Files

New Holland Tractor - T4F Narrow Series

BOLD. POWERFUL. NARROW.

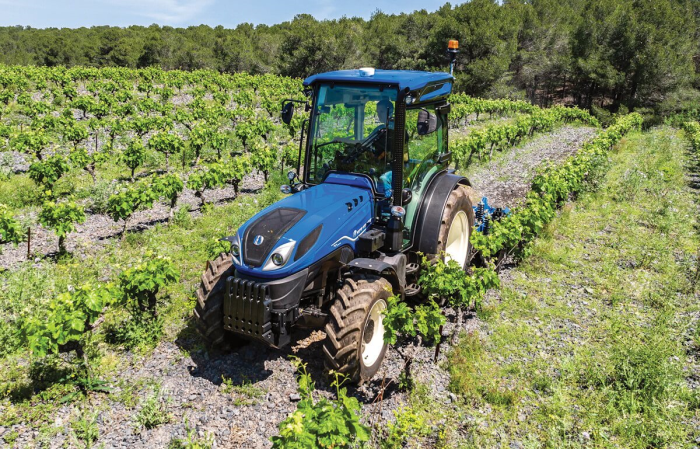

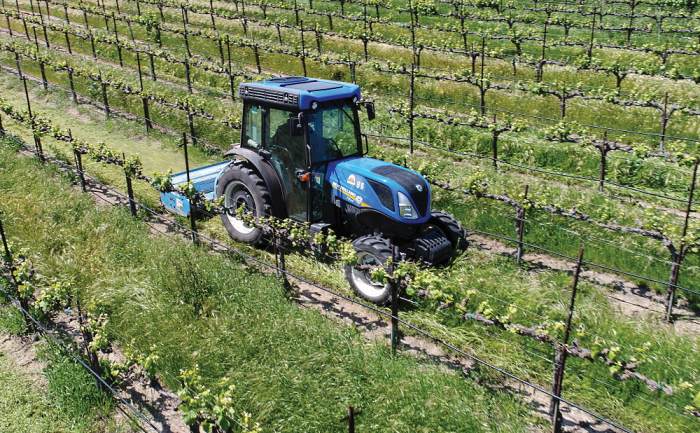

From the world’s leading supplier of narrow tractors, New Holland T4F Series narrow tractors combine more power and a bold new style with enhanced operator comfort and safety. All four models feature a sleek design that’s ideal for the narrow rows of orchards and nut groves. The standard SuperSteer™ FWD front axle makes these tractors extremely maneuverable. Or choose the economical 2WD front axle if you don’t require the added traction FWD provides.

Features

  • UP TO 93 PTO HP IN NARROW ROWS - The T4F Series continues the legacy of being the most stable, narrow platform for tough applications.
  • CLEAN POWER - Powerful, 207-cubic-inch, four-cylinder engines are Tier 4A emissions compliant to reduce emissions.

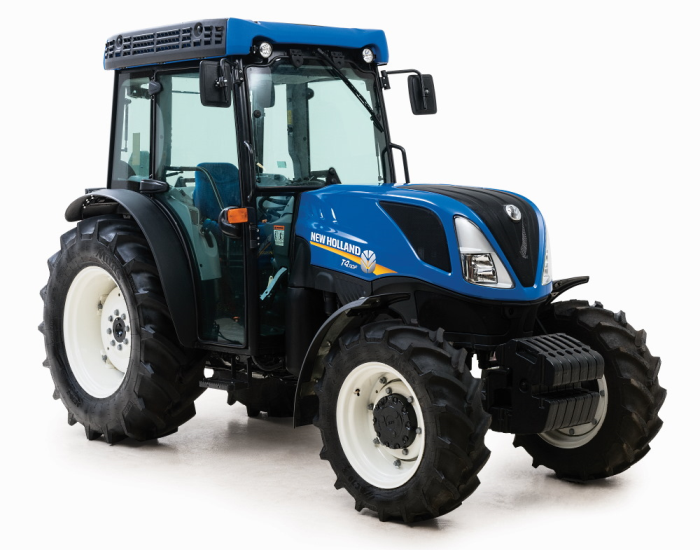

  • NEW BLUE CAB™ 4 - T4F tractors are now available with Level 4 protection from dust, aerosols and vapors.
  • A HITCH ON FRONT AND BACK - For added versatility, add the available front three-point hitch with available front PTO.



  T4.80F T4.90F T4.100F T4.110F
Engine
Type 4-cyl, Tier 4B 4-cyl, Tier 4A 4-cyl, Tier 4A 4-cyl, Tier 4A
Gross HP 74 hp 84 hp 98 hp 106 hp
PTO HP 65 hp 75 hp 86 hp 93 hp
Displacement 207 in³ 207 in³ 207 in³ 207 in³
Transmission
Option 1 16 x 16 Shuttle Command 16 x 16 Shuttle Command
Option 2 16 x 16 Power Shuttle 16 x 16 Power Shuttle
Option 3 32 x 16 Dual Command 32 x 16 Dual Command
Dimensions, 4WD
Minimum Overall Width 62" 62"
Overall Length 159" 159"
Height, to top of ROPS 91" 91"
Height, to top of Cab 89" 89"
