New Holland Snow Blowers

Part #: Snow Blower
When winter hits, clear snow from your property with a hard-working front-mount snow blower. Cutting widths range from 50-72 inches to make short work of moving snow.
Details

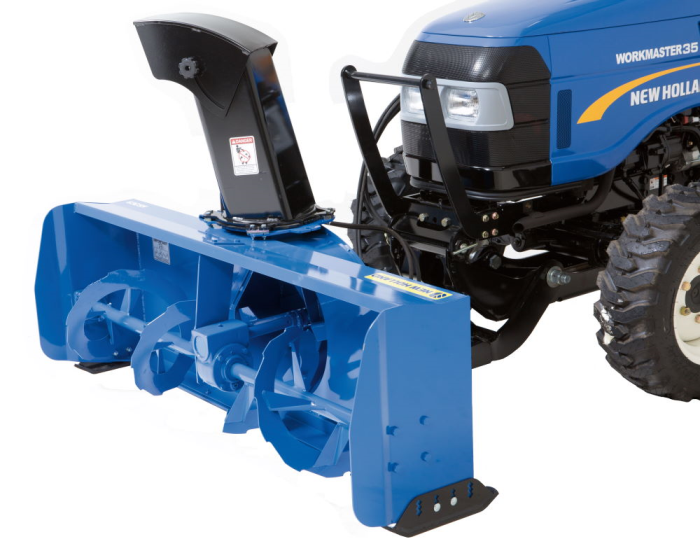

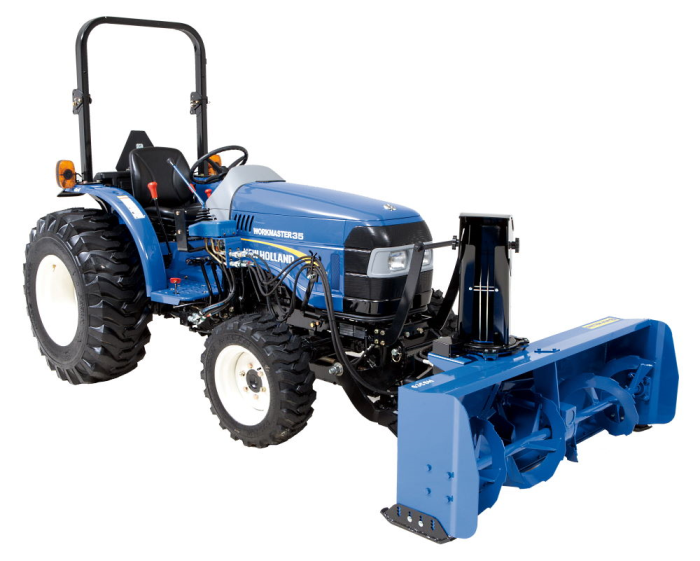

TRANSFORM YOUR TRACTOR INTO A SNOW REMOVAL MACHINE

When winter hits, clear snow from your property with a hard-working front-mount snow blower. Cutting widths range from 50-72 inches to make short work of moving snow.



QUICK-ATTACH SYSTEM - Save time with the Quick-Attach sub frame system that makes hookup simple with no tools required. It also accommodates front blades and rotary brooms using one, common hitch assembly and frame.

TWO-STAGE OPERATION - Whatever mother nature throws at you, you can throw aside. A powerful auger breaks up even compacted snow, and a strong impeller blows it up and out the adjustable chute. An open design prevents wet snow from building up around the auger.

FUEL EFFICIENT - The blower fan uses three or four blades for maximum fuel economy.

ADJUSTABLE SKID SHOES - High carbon, heavy-duty shoes allow you to vary settings for efficient operation in changing conditions.

LONG LIFE - Shear bolts provide protection from hard objects and cutting edges are reversible and replaceable for long life and easy maintenance.



  63CS 63CSH 63CSHB 72CSH 74CSHA 74CSHB 836GS
Cutting Width 63" 63" 63" 72" 74" 74" 60"
Cutting Height 22" 22" 22.5" 26" 26" 26" 20"
Fan Blades / Fan Diameter 4 / 18" 4 / 18" 4 / 17.75" 4 / 24" 4 / 24" 4 / 24" 4 / 16"
Auger Diameter 14" 14" 13.75" 15" 15" 15" 13"
Fan Drive #50 HD Chain -- Gear Box
Reduction
#60 HD Chain Gear Box
Reduction
Gear Box
Reduction
#40 HD Chain
Auger Drive -- Gear Box
Reduction
-- Gear Box
Reduction
#60 HD Chain #60 HD Chain Mechanical
Gearbox
Standard Chute Rotation Manual Manual Hydraulic Manual Hydraulic Hydraulic Manual
Optional Chute Rotation Hydraulic, Electric Manual, Electric Hydraulic Manual, Electric Hydraulic, Electric
