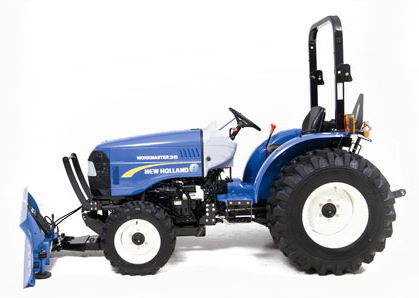

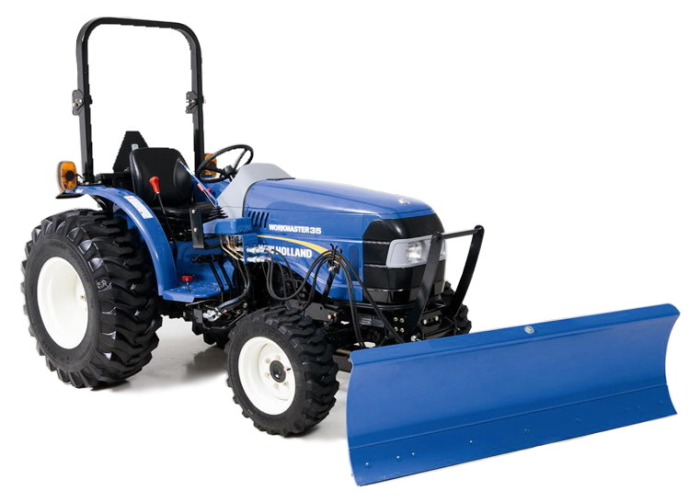

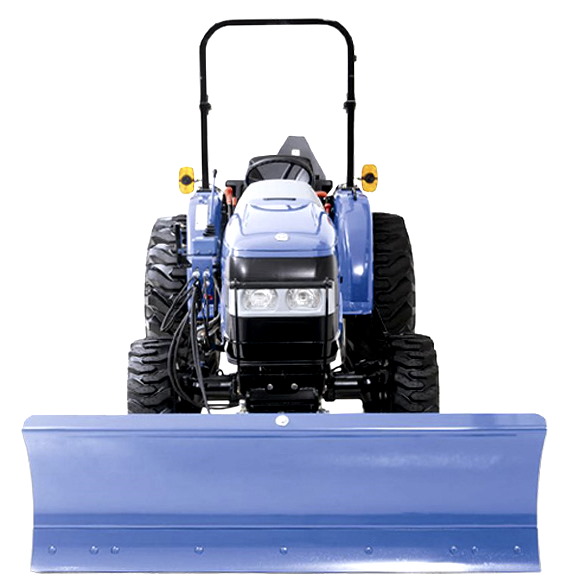

New Holland Front Blades

Part #: NH-FBlade
Handle a variety of jobs more easily, from moving material, grading a path or clearing snow in the winter. Choose from a bolt-on model or a range of Quick-Attach front blades that you can change quickly without tools.
Details

WHEN PUSH COMES TO SHOVE, ATTACH A FRONT BLADE

Handle a variety of jobs more easily, from moving material, grading a path or clearing snow in the winter. Choose from a bolt-on model or a range of Quick-Attach front blades that you can change quickly without tools.

QUICK-ATTACH MODELS

The Quick-Attach system allows you to quickly change blades without tools and feature a spring-trip design, which allows the blade to pivot when it hits an obstruction. Reinforced moldboards provide extra protection against bending under difficult working conditions, and optional rubber cutting edges are available for delicate blade work.



HYDRAULIC ANGLING - Hydraulic power makes it easy to adjust the blade angle and height up to 30 degrees. An ergonomic joystick provides simple control of material delivery.

ADJUSTABLE SKID SHOES - Skid shoes prevent gouging by maintaining the blade at a preset height.

DURABLE, REPLACEABLE CUTTING EDGE - The cutting edge is made of heat-treated, high-carbon steel. It's replaceable and reversible and bolts on for long life and easy maintenance.



  60CBH 72CBH
Moldboard Width 60" 72"
Moldboard Height 22" 22"
Moldboard Thickness 1/4" 1/4"
Max Blade Angle 30° 30°
Weight 399 lbs. 540 lbs.
