New Holland Vibratory Rollers
Part #: NH-VRoller
Use your New Holland Skid Steer Loader to compact sand, gravel or soil in preparation for concrete or asphalt surfacing.
Details
New Holland Vibratory Rollers for Skid Steer Loaders
Features
- Compact sand, gravel or soil in preparation for concrete or asphalt surfacing
- ± 15° Drum oscillation
- Includes quick disconnects
- Can be center mounted or offset 12" to right
- Drum scrapers included

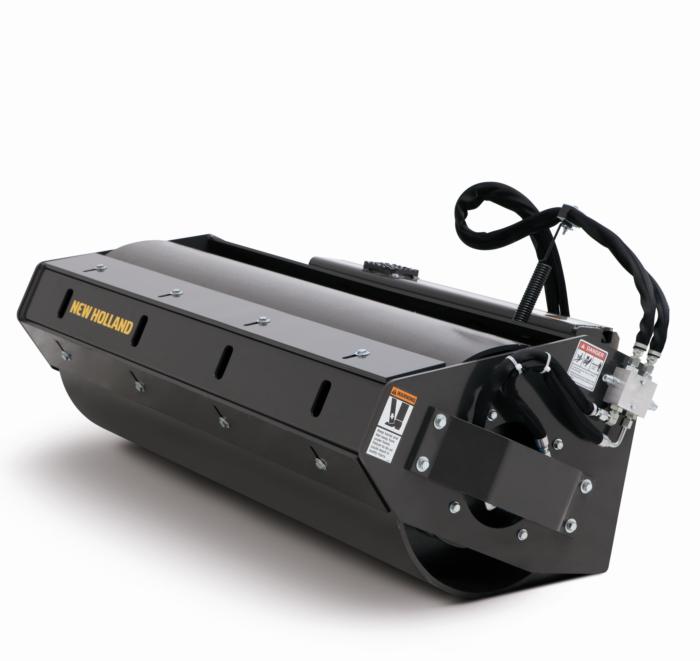

Smooth Drum Models
| Model | VRS48 | VRS66 | VRS73 | VRS84 |
| Drum Width | 48" | 66" | 73" | 84" |
| Drum Diameter | 24" | 24" | 24" | 24" |
| Dynamic Force | 5750 lbs | 7800 lbs | 8550 lbs | 9370 lbs |
| Frequency @ 20 GPM | 2600 vpm | 2600 vpm | 2600 vpm | 2600 vpm |
| Vibrating Weight | 935 lbs | 1190 lbs | 1290 lbs | 1440 lbs |
| Operating Weight | 1680 lbs | 2150 lbs | 2300 lbs | 2550 lbs |
| Drum Oscillation | ± 15° | ± 15° | ± 15° | ± 15° |
| Max Hydraulic Flow | 25 gpm | 25 gpm | 25 gpm | 25 gpm |

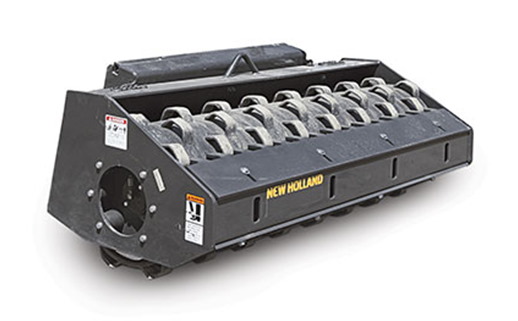

Padfoot Drum Models
| Model | VRP48 | VRP66 | VRP73 | VRP84 |
| Drum Width | 48" | 66" | 73" | 84" |
| Drum Diameter | 24" | 24" | 24" | 24" |
| Dynamic Force | 5750 lbs | 7800 lbs | 8550 lbs | 9370 lbs |
| Frequency @ 20 GPM | 2600 vpm | 2600 vpm | 2600 vpm | 2600 vpm |
| Vibrating Weight | 890 lbs | 1130 lbs | 1225 lbs | 1370 lbs |
| Operating Weight | 1630 lbs | 2085 lbs | 2230 lbs | 2455 lbs |
| Drum Oscillation | ± 15° | ± 15° | ± 15° | ± 15° |
| Max Hydraulic Flow | 25 gpm | 25 gpm | 25 gpm | 25 gpm |
 |
|
