Construction Attachment Grapple Bucket

Part #: CA-GBucket
Construction Attachment Grapple Buckets designed for skid steer loaders and compact track loaders and enables you to move hard-to-handle materials, brush and other awkward debris.
Details

Construction Attachment Grapple Buckets

Worx Duty Grapple Bucket

Worx Duty Grapple Bucket Attachment designed for skid steer loaders and compact track loaders 51-100 horsepower. This attachment enables you to move hard-to-handle materials, brush and other awkward debris. Grapple has up to 44" of fully usable space with no trapped space. This grapple bucket is available in 60", 67", 73" and 82" models.

  • Grapple opening of 44” – fully usable, no trapped space
  • Lids are uniform between our Worx Duty root grapple and Worx Duty grapple bucket line
  • Standard reversible front bolt-on cutting edge
  • A pair of 3/16” load transfer plates eliminates flex between the moldboard and hinge frame
  • Radius moldboard for strength and easy unloading
  • ½” lid tines on 1¼” pivot pins with robust broken-out lid decks for strength
  • Covered hoses for full protection in harsh environments

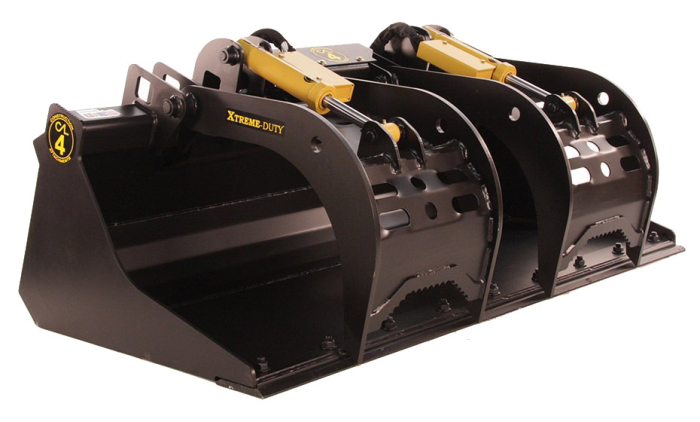

Xtreme Duty Grapple Bucket

Xtreme Duty Grapple Bucket Attachment designed for skid steer and tractor loaders 51-150 horsepower. Grapple bucket designed for harsh environments to be used to remove building, forestry and scrap yard debris. Large opening of over 44" to clamp large loads evenly. This grapple bucket is available in 60", 67", 73" and 82" models.

  • Low profile for improved load visibility
  • 19” wide lids are uniform between our Root Grapple and Grapple Bucket line
  • Large grapple opening of over 44” designed to clamp evenly around load
  • Radius mold board for improved unloading and added strength
  • ¾” lid tines and heavily-gusseted lids
  • 1 ½” pivot pins and 2 ¾” bore cylinders
  • Covered hoses for full protection in harsh environments
  • Rear hitch designed to match host machine

Severe Xtreme Duty Grapple Bucket

Severe Xtreme Duty Grapple Bucket is designed for rubber tire host machines up to 130 horsepower. It is the ideal attachment for high repetition use in harsh enviroments.

  • Ideal attachment for harsh environments
  • Used for the removal of building, forestry and scrap yard debris
  • Low proļ¬le for improved load visibility
  • 19” wide lids are uniform between our Root Grapple and Grapple Bucket line
  • Large grapple opening of over 44” designed to clamp evenly around load
  • Accepts a reversible bolt-on edge
  • Radius moldboard for improved unloading and added strength
  • 1” lid tines and heavily-gusseted lids
  • Covered hoses for full protection in harsh environments
  • Rear hitch designed to match host machine
  • 3/4” lid tines and heavily-gusseted lids; neoprene bushings for high repetition
  • Greaseable pins and 2-3/4” bore cushion cylinders
  • Rear hitch designed to match host machine



 Model Worx Duty Xtreme Duty Severe Xtreme Duty
 Width 60" 67" 73" 82" 60" 67" 73" 82" 60" 67" 73" 82"
 Max Grapple Opening 44" 44" 44" 44" 44" 44" 44" 44" 44" 44" 44" 44"
 Weight, lbs 1000 1094 1124 1222 1116 1220 1260 1372 1112 1370 1414 1540
 Welded Edge 5/8" x 6" 5/8" x 6" 3/4" x 6"
 Max Clamping Force 3600 lbs @ 3000 psi 6000 lbs @ 3000 psi 6000 lbs @ 3000 psi
 Loader Horsepower 51-100 hp 51-150 hp 51-130 hp
