Compact Excavators

Part #: NH-Excavators
New Holland offers you a broad selection of compact excavators with seven models from 1.87 to 6.61 tons. With canopy and cab models, short radius (SR), zero tail swing (ZTS) and conventional versions to choose from, there is the right model ideally suited to landscaping, municipal, agriculture, horticulture, nurseries, vineyards, estate management and general contracting.
Details
Files

New Holland Compact Excavators - C Series

The right tool for the job

New Holland offers you a broad selection of compact excavators with seven models from 1.87 to 6.61 tons. With canopy and cab models, short radius (SR), zero tail swing (ZTS) and conventional versions to choose from, there is the right model ideally suited to landscaping, municipal, agriculture, horticulture, nurseries, vineyards, estate management and general contracting. Varied applications include track, irrigation and drainage system construction and maintenance, to fence installation and utility work.

With hydraulically powered attachments like soil augers, hammers and compactors, the boom and dipper offer power arm versatility with the strength of a large excavator. In addition, the available Object Handling Kit allows you to raise heavy, suspended loads using a lifting hook on the bucket linkage. You get all this versatility in one machine.

Small in size. Big on performance. Huge in versatility.

Compact dimensions enable New Holland C Series excavators to access difficult work areas. And, every model is built for high performance. Designed for day-long working, each model has class-leading excavation performance with the versatility to power a wide range of attachments

Designed around you.

Slim frame posts ensure excellent all-round visibility, with good views of the boom and dipper. When working in a confined area, in urban areas, or between valuable crops such as in a vineyard, nursery or an orchard, you can operate a New Holland compact excavator with absolute precision for minimal disruption.

More power, more productivity, more value.

A comfortable operator is a safe and productive operator. All models have excellent ergonomics, with all primary controls positioned for easy access. The shape of the joysticks enables the operator to choose their preferred method of working the key excavator functions, allowing both gripped and palm down operating positions. The armrests adjust to deliver the required level of support and the foot pedals on the smaller models fold to increase floor space. Getting in and out the machine is simplified because the left-side console tilts out of the way, locking the hydraulics at the same time to prevent accidental operation.

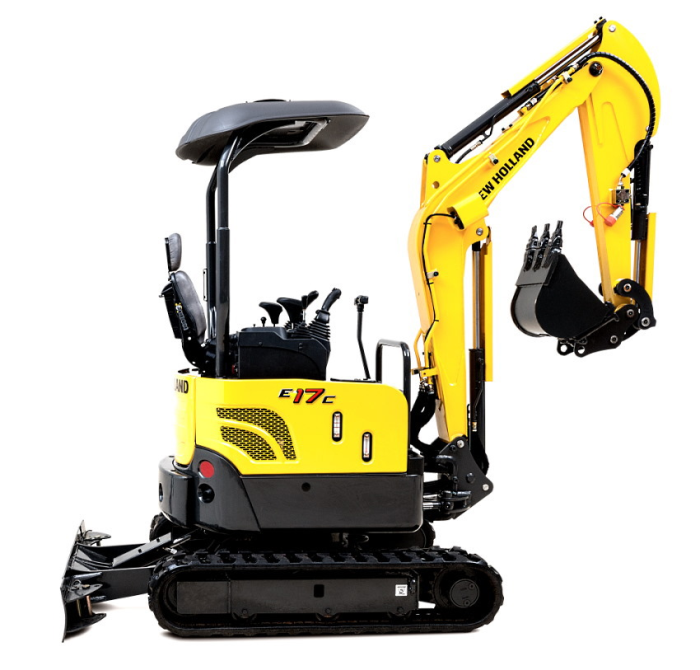

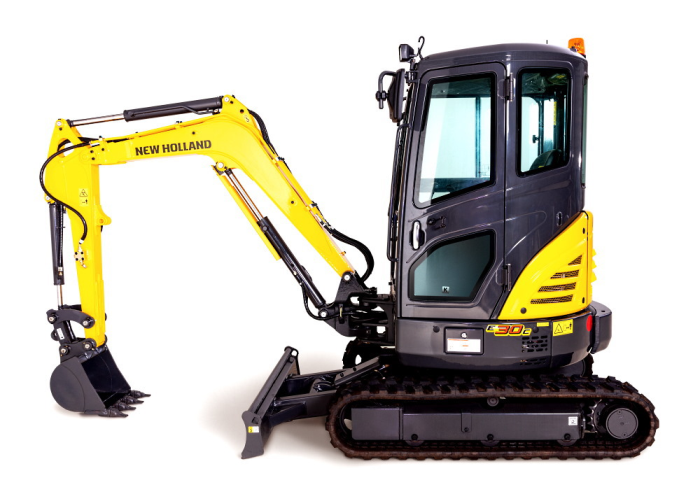

Model E17C E26C E30C E33C E37C E57C E60C
Gross Power 16.8 hp 24.8 hp 24.8 hp 24.4 hp 24.4 hp 66.9 hp 64.7 hp
Configuration
    Design ZTS ZTS SR SR ZTS Conventional SR
    Cab -- Optional Optional -- Optional Standard Standard
    Canopy Standard Optional Optional Standard Optional -- --
Operating Weight
    Cab -- 5850 lbs 6922 lbs -- 8300 lbs 12,050 lbs 12,940 lbs
    Canopy 3910 lbs 5520 lbs 6592 lbs 7682 lbs 7990 lbs -- --
Blade Width 3'3"-4'3" 5' 0" 5' 1" 5' 1" 5' 9" 6' 4" 6' 7"
Max Digging Depth
    Standard Arm 7' 3" 7' 11" 8' 2" 9' 11" 10' 3" 12' 6" 11' 9"
    Long Arm 7' 8" 8' 8" -- -- 11' 3" 13' 4" 13' 1"
Max Dump Height
    Standard Arm 8' 5" 9' 7" 9' 7" 10' 9" 11' 3" 13' 3" 12' 11"
    Long Arm 8' 10" 9' 11" -- -- 11' 10" 13' 9" 13' 5"
