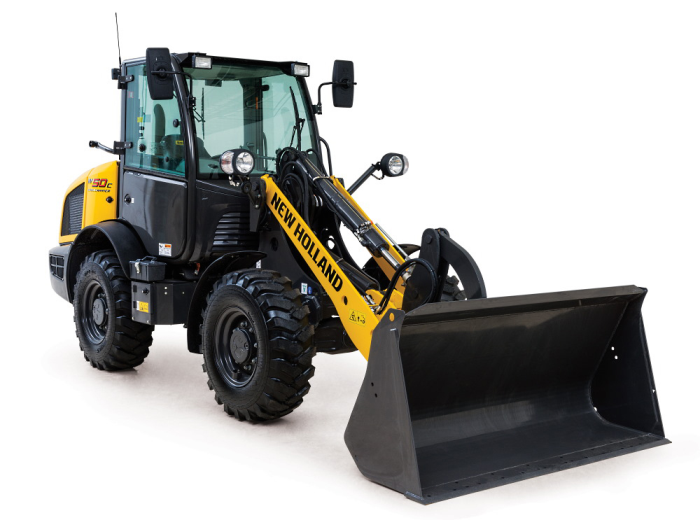

New Holland Compact Wheel Loaders

Part #: W50B
Certified Tier III Engine with Low Emissions

Standard Hydraulic Quick Coupler — Compatible with all Skid Steer Loader attachments
Boom design provides outstanding visibility and breakout force
High speed option allows for travel up to 21.7 miles per hour


New Holland B Series compact wheel loaders pay their way on the jobsite with outstanding performance in a compact, maneuverable machine. The Universal Link design of the W50B TC and W80B TC offers a combination of increased versatility with increased operator comfort and control. The result? You get the job done more quickly and efficiently.

New Universal Link Design

Standard hydraulic quick-coupler is skid steer loader– attachment compatible*

• New boom design with one lift cylinder and one bucket cylinder

• Less than two degrees horizontal lift deviation, so there’s no need for manual correction during forklift operation

• Operators can focus more on load placement and increasing cycle times

• Increased Dump Reach

• Better visibility

Smooth hydrostatic transmission

• Precise speed control with minimum shifting

• Easy-to-use, integrated FNR (forward/neutral/reverse) lever and speed shift selector

• Two travel ranges to adapt to different work situations:

• Heavy duty 0 to 3.7 mph (0-6 kph)

• Fast 0 to 12.4 mph (0-20 kph)

High-speed option (W80B TC)

• Optional 21.7-mph (35 kph) transmission for faster travel on the job site

• Includes two electronic ranges: 0 to 3.1 mph (5 kph) and 0 to 9.9 mph (16 kph), plus the mechanical-gear, high-speed range of 0 to 21.7 mph (35 kph)

• Also features a limited slip differential on front axle and two outboard wet disc brakes on front axle

In-cab efficiency and comfort

• The most spacious cab in this class

• Comfortable, adjustable seat, steering column and armrest

• Main functions concentrated in one convenient joystick control

• Easy-read instruments

• High-performance heater/defroster with optional high-performance air conditioning comfort in all temperatures

• Door and right side window fold back 180 degrees for ventilation

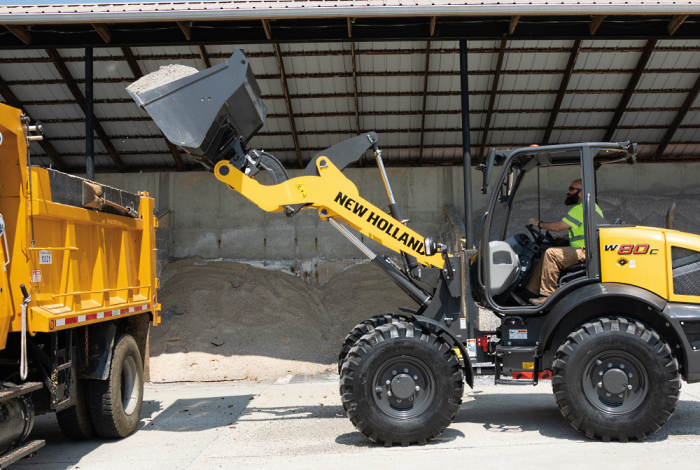

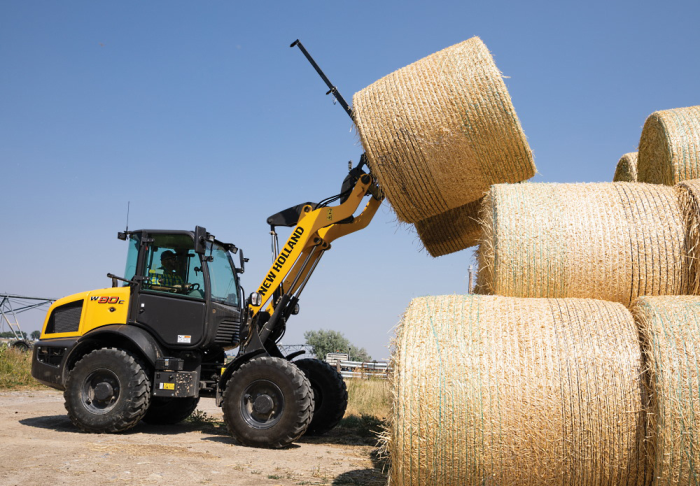

New Holland compact wheel loaders do more than load. With increased engine and hydraulic power and a choice of buckets and attachments, you can easily scrape, grade, haul and more.

Dependable 4-cylinder engine

• Large 3.1-liter displacement and low 2300–rpm engine speed increase engine life

• Direct-injection diesel design features low fuel consumption, low emissions and low noise

• Oil cooling reduces corrosion to increase engine lifespan

• Compact engine measurements improve maneuverability and rear visibility

Dimensions W50B TC W80B TC
Overall Length 17’ 7” 18’ 6”
Wheelbase 85.9” 92.5”
Height to top of ROPS/Cab 8’ 10” 9’ 2”
Dump reach at full height @ 45° 34” 35”
Dump reach @ 7’ 3’ 10” 4’ 3”
Dump clearance at full height @ 45° 8’ 3” 8’ 9”
Hinge Pin Height 10’ 8” 11’ 4”
Dig depth below grade 3.6” 3.5”
Bucket width 6’ 2” 6’ 11”
Ground clearance under axle 13” 13”
Tread gauge 4’ 10” 5’ 2”
Width over tires 6’ 1” 6’ 5”
Turning Radius 12’ 7” 13’ 8”
