Taylor-Way Offset Disc Harrows
Taylor-Way Offset Disc Harrows

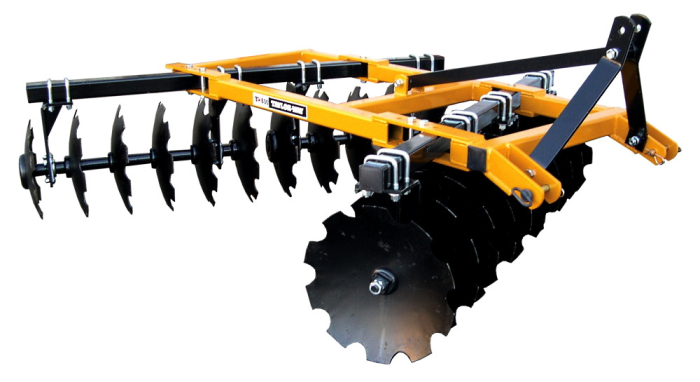

Series 600 Offset Disc Harrow
Taylor Pittsburgh’s 600 Offset Disc Harrows are designed for medium to low acreage applications. Suitable for tractors from 40-60 HP. These discs feature a tubular frame in a weight class rugged enough for the farmer or landscaper, yet economical enough for the part-timer.
Series 670 Offset Disc Harrow
Taylor Pittsburgh’s 670 Offset Disc Harrow is the result of proven, field tested engineering to give you precision performance in a variety of applications. This heavy duty Harrow is ideal for light and heavy field tillage, firebreak cutting and many orchard applications. The offset design enables maximum penetration and even tillage of soil.
With over 12 widths to choose from, each available in standard or flex bearing hanger type, the 670 Series can easily be customized to meet your specific application and HP needs. The heavy construction features 1 ½” square gang axles and common gang components of our larger models, making the 670 one of the most durable and dependable Harrows in its class. Outstanding features and popular options from a name you trust...Taylor-Way.

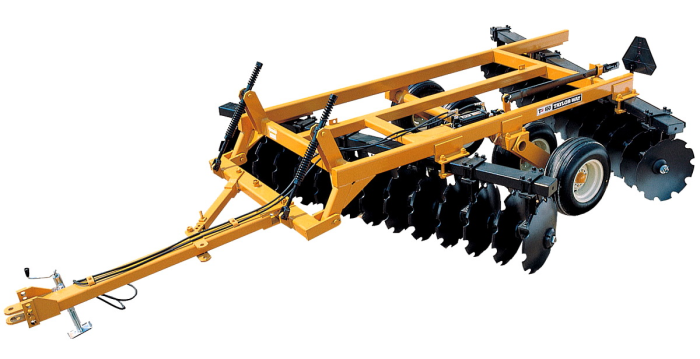

Series 650 Heavy Duty Offset Disc Harrow
Proven and precise, Taylor Pittsburgh’s 650 Heavy Duty Offset Disc Harrow is the premium implement when you want customized options and power to get the job done right. The offset configuration provides maximum pulverization for primary as well as secondary tillage applications. Design features include heavy tubular frame construction, 1 ½” square gang axles for strength and trunion mounted re-greasable bearings.
Heavy duty with superior leveling capabilities, the 650 encompasses a broad range of cutting widths and blade spacings to select. That means you’ll never have to sacrifice what you really want from your implement when you choose a Taylor-Way. Whether you need the 9" spacing or 10.5" spacing, you’ll feel like this Disc Harrow was custom built just for you.
| Series 600 | Series 670 | Series 650 | |
| Cutting Width | 5' 4" to 6' 6" | 5' 6" to 9' 11" | 9' 1" to 17' 11" |
| Bearing Hanger Type | Rigid | Rigid or Flex | Rigid or Flex |
| Number of Discs | 17 - 21 | 15 - 27 | 25 - 49 |
| Blade Diameter | 20" or 22" | 24" or 26" | 24" or 26" |
| Disc Spacing | 7.5" or 9" | 9" or 10.5" | 9" or 10.5" |
| Horsepower Required | 40-60 hp | 40-70 hp | 80-180 hp |
Please click the "Files" tab above to download full Spec Sheet
 |
|
