Worksaver Cement Mixer

Part #: Worksaver-CM
The Worksaver Skid Steer Mixer, model SS-590 has direct hydraulic drive of the gearbox which eliminates chain and sprocket maintenance resulting in more up-time on the jobsite.
Details

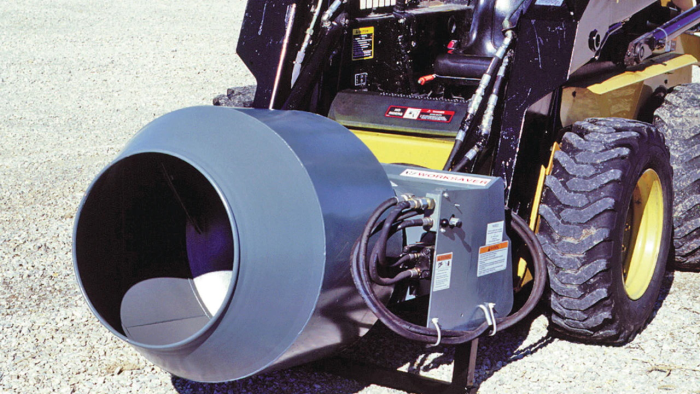

Worksaver Cement Mixer for Skid Steers

The Worksaver Skid Steer Mixer, model SS-590 has direct hydraulic drive of the gearbox which eliminates chain and sprocket maintenance resulting in more up-time on the jobsite. Large 11-cubic ft. drum allows the operator to mix, transport and place 5 cubic ft. of concrete. It's efficient design offers the contractor a cost savings over chain driven models.

  • All welded drum construction with internal paddles for uniform mixing and clean dumping.
  • Compact, trouble free, long life design with few moving parts.
  • Hydraulic motor drive for easy operation and low maintenance requirements.
  • Five (5) cu./ft. capacity (1 bag mix).
  • Perfect for fence posts, footings, sidewalls and hard to reach areas.
  • Direct gearbox drive of drum.
  • Welded main frame with "universal" skid steer mount allows easy access to the operators seat.
  • Flow control valve allows easy control of speed of the mixer.
  • All welded frame with store onboard parking stands for easy storage of the mixer when not in use.



 Model SS-590
 Capacity 5 cu.ft. (1 bag mix)
 Drum Opening 20"
 Overall Drum Length 32"
 Drum Construction Welded Steel
 Drive System Hydraulic Direct thru Gearbox
 Hydraulic Requirements 8 gpm minimum
 Flow Control Valve Standard
 Parking Stands Standard
 Weight 395 lbs
