BH Flex Wing Cutters - Heavy Duty

Part #: BH-FW3000
Bush Hog 3000/4000 Series Flex Wing Rotary Cutters are available in cutting widths of 10.5 and 15 feet with cutting height from 2-14 inches. Bush Hog Flex Wings are legendary for their performance, durability and longevity. Wings float independently over uneven terrain for a uniform cutting appearance. Whether you’re maintaining a rolling pasture or orchard, or clearing heavy crops or overgrown roadsides, you will find a model that meets your needs and matches your tractor.
Details
Files

Bush Hog Flex Wing Rotary Cutters - 3000/4000 Series

Bush Hog 3000/4000 Series Flex Wing Rotary Cutters are available in cutting widths of 10.5 and 15 feet with cutting height from 2-14 inches. Bush Hog Flex Wings are legendary for their performance, durability and longevity. Wings float independently over uneven terrain for a uniform cutting appearance. Whether you’re maintaining a rolling pasture or orchard, or clearing heavy crops or overgrown roadsides, you will find a model that meets your needs and matches your tractor.

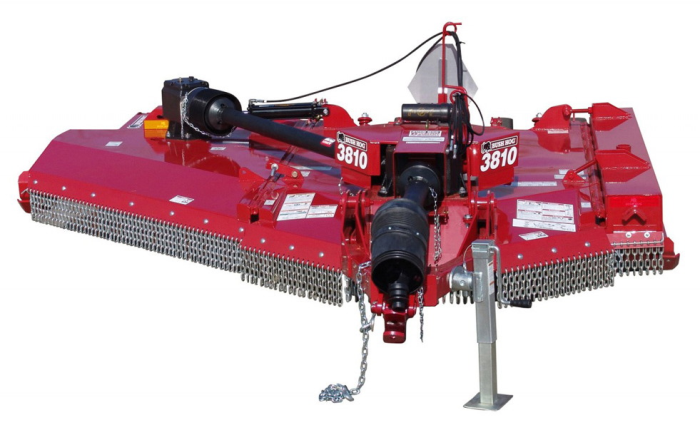

3810 Single Flex-Wing Rotary Cutters

The right-hand wing model 3810 is easier to service and has features that maximize performance and durability in all uses. Made especially for highway right-of-way mowing or other areas where the Flex-Wing with a single wing is the best fit, the 3810 is unsurpassed in performance, durability, and reliability.

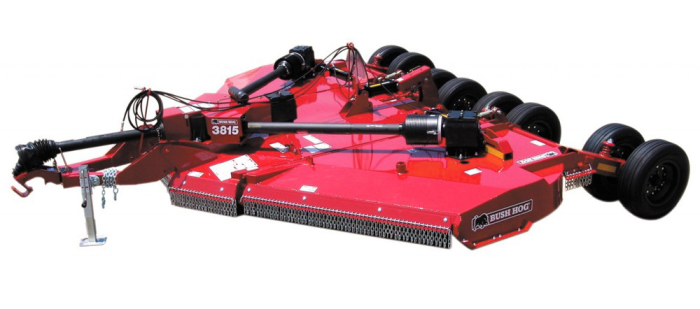

3815 Flex-Wing Rotary Cutters

The 3815 is the heaviest built Bush Hog® Flex-Wing for the toughest cutting conditions. It is recognized by right-of-way contractors and large land owners as the Flex-Wing that can perform over the most rugged terrain. The ease of maintenance features and durability, reliability and performance make the 3815 the highest value for your investment.

4815 Flex-Wing Rotary Cutters

The 4815 is the toughest Bush Hog® built Flex-Wing. Built for the roughest and toughest use, the 4815 is for those users who require the strongest 15 ft. Flex-Wing. The roughest right of way or agricultural cutting is no challenge for this unit that’s built to take the ground pounding heavy use every day! See the back page for specifications and features that set the 4815 above all other 15 ft. Flex-Wings regardless of brand. Bush Hog® – Performance You Can Count On.



Model 3810 3815 4815
Cutting Width 10' 6" 15' 15'
Cutting Height 2"-14" 2"-14" 2"-14"
Cutting Capacity 4.5" 4.5" 4.5"
Transport Width 8' 2" 8' 2" 8' 2"
Transport Height 7' 3" 7' 3" 7' 3"
Tractor PTO Requirement 60 hp 60 hp 70 hp
Center Deck 11-gauge over 7 gauge 11-gauge over 7 gauge 11-gauge over 7 gauge
Wing Decks 7 gauge 7 gauge 7 gauge
Wing Cutting Angles 22° down, 45° up 22° down, 45° up 22° down, 45° up
Gearboxes (Transfer/Cutting) 250 / 225 hp 250 / 225 hp 250 / 225 hp
Blades 1/2" x 4" 1/2" x 4" 1/2" x 4"
Blade Tip Speed 16,286 fpm 16,268 fpm 16,268 fpm
