Direct Cut Auger Headers

Part #: AugerHeader
New Holland offers a complete selection of direct-cut heads, providing you with the versatility to match your crops and your operational needs. High-capacity rigid and flex heads deliver fast, clean cutting in tough field conditions, as well as reliable feeding, even in the heaviest crop conditions.
Details
Files

New Holland Direct Cut Auger Headers

CUTTING-EDGE HARVESTING PERFORMANCE

New Holland offers a complete selection of direct-cut heads, providing you with the versatility to match your crops and your operational needs. High-capacity rigid and flex heads deliver fast, clean cutting in tough field conditions, as well as reliable feeding, even in the heaviest crop conditions.

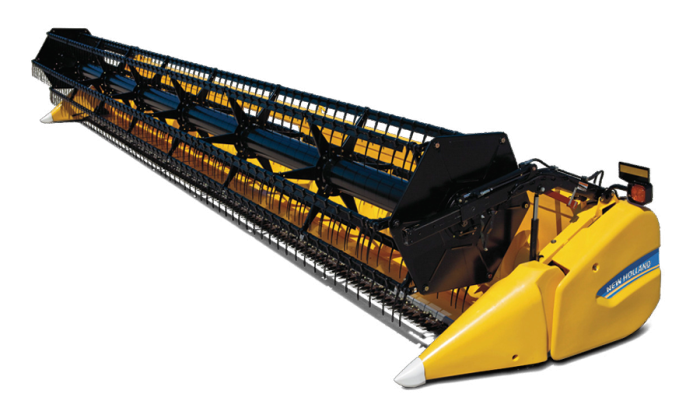

740CF Superflex Cutterbar Auger Heads

If you harvest in undulating terrain, the 740CF direct-cut SuperFlex™ auger head is the natural choice. Available in cutting widths of 25, 30, and 35 feet, 740CF heads feature a patented, rubber spring flotation system that allows heads to follow ground contours more closely so you get every bit of your crop. The SuperFlex knife bed flexes a full 4.5 inches to ensure a close cut and uniform stubble height in uneven fields.

760CG Varifeed Rigid Cutterbar Heads

For optimum harvest quality and a uniform cut in different crop heights, including tall, bushy, direct-cut canola, the Varifeed™ grain head is your perfect partner. The 30, 35, and 41 Ft. models allow you to harvest at high field speeds to make full use of the high capacity of New Holland combines



You can adjust knife position a full 23 inches fore and aft so you can regulate the flow of crop right from the cab for ideal feeding. With the varying distance between knife and intake auger, the header reel plays a more important role in crop guidance and crop feeding. You can also adjust the reel electro-hydraulically in all directions from the cab for smooth, continuous feeding. If you direct-cut canola, Varifeed heads are ideal since the 23 inches of floor travel allow ample room for the bushy canola crop. The header floor remains closed in all knife positions, without the need for filler plates or drive belt changes.



  740CF SuperFlex 760CG Varifeed
 Cutting Widths 25', 30', 35' 30', 35', 41'
 Knife Speed 1300 cuts/min 1300 cuts/min
 Vertical Knife Flexibility 6" --
 Knife Drive Single (LH side) Single (LH side), Dual on 41'
 Feeding Auger Diameter 26" 26"
 Reel Diameter 42" 42"
