New Holland Draper Headers

Part #: DraperHeader
Maximize the capacity of your New Holland combine with a matching New Holland draper head designed for uniform crop flow and reliable performance. Choose from models to match your crop, and available in a range of cutting widths to match your needs.
Details

New Holland Draper Headers

MAXIMUM HARVESTING PRODUCTIVITY

Maximize the capacity of your New Holland combine with a matching New Holland draper head designed for uniform crop flow and reliable performance. Choose from models to match your crop, and available in a range of cutting widths to match your needs.

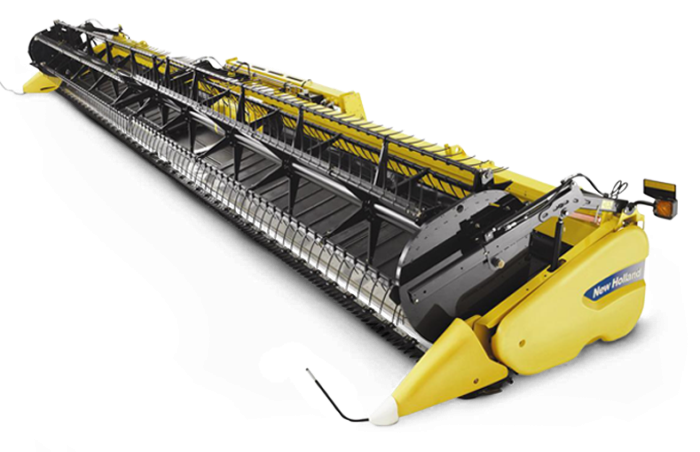

840CD Rigid Draper Head

The 840CD rigid draper head delivers outstanding performance in cereals, grains and specialty crops such as rice, so you can harvest every bit of your valuable crop. These rugged headers are available in cutting widths of 30, 35, 40 and 45 feet.

880CF Superflex Cutterbar Draper Head

The 880CF SuperFlex™ cutterbar draper head provides closer cutting and better flotation so you can harvest every bit of your valuable crop. These rugged combine heads are available in cutting widths of 30, 35, 40 and 45 feet.



  840CD Grain Draper 880CF SuperFlex Draper
 Cutting Widths 25', 30', 35', 40', 45' 30', 35', 40', 45'
 Variable Knife Speed 0-1260 cuts/min 0-1260 cuts/min
 Vertical Knife Flexibility -- 6"
 Draper Feeding Belts Width 41.5" 41.5"
 Center Draper Feeding Belt Width 83" 83"
 Lateral Draper Belt Working Angle 22.6  22.6
 Lateral Draper Speed 0-863 rpm 0-863 rpm
 Center Draper Speed 769 rpm 769 rpm
 Auger Speed 150 rpm 150 rpm
 Floating Feeding Auger Diameter 26" 26"
 Reel Diameter 42" 42"
