NH Compact Tractor Loaders
Part #: CompactLoaders

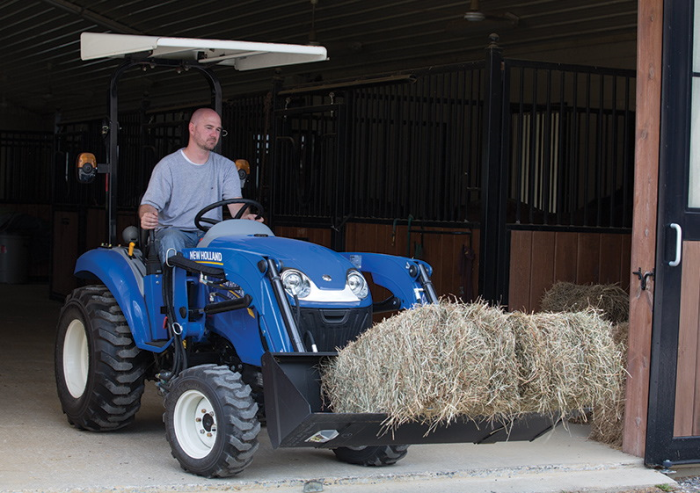

The curved boom design for outstanding strength and visibility. If you have things like gravel, mulch, plants, dirt or hay to move, you will need a front-end loader.
Details
Files
Loaders for New Holland Compact Tractors
Signature curved boom performance

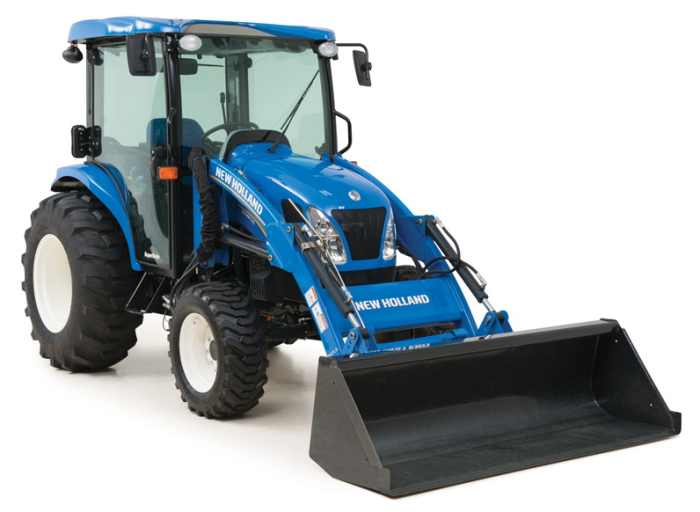

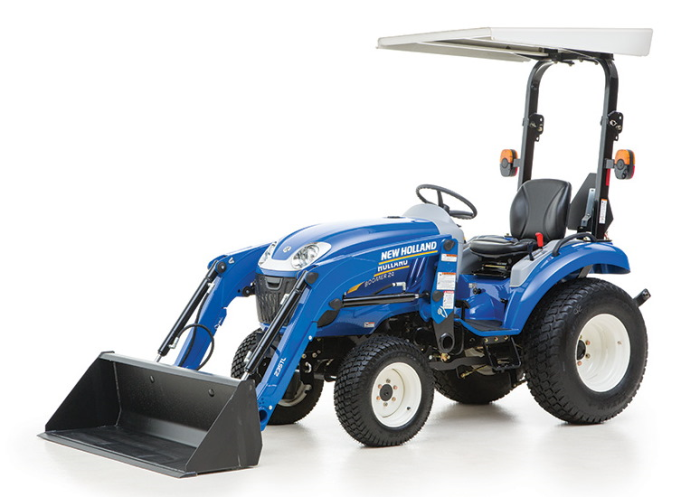

New Holland's signature curved loader boom matches the sleek, sloped hood of your Boomer or WORKMASTER tractor for excellent sightlines to the bucket or attachment. The design also provides for better stress distribution under heavy loads.
Easy on. Easy off.
Move quickly between jobs. The New Holland Quick Mount system makes it easy to attach or remove the loader fast - no tools needed. Optional skid steer quick attach plates are available for easy bucket/attachment changes on most models.
| For Boomer Tractors | For WORMASTER Tractors | ||||
| 250TLA | 260TLA | 100LC | 200LC | 140TL | |
| Tractor Model Compatibility | 35/40 | 45/50/55 | 25S | 25 | 35/40 |
| Lift Capacity | |||||
| 20" forward, max height | 1354 lbs | 1849 lbs | 693 lbs | 1214 lbs | 1100 lbs |
| Pivot pin, max height | 1822 lbs | 2371 lbs | 1005 lbs | 1600 lbs | 1500 lbs |
| Breakout Force | |||||
| 20" forward, max height | 2444 lbs | 3191 lbs | 1426 lbs | 1926 lbs | 1900 lbs |
| Pivot pin, max height | 3257 lbs | 4081 lbs | 2078 lbs | 2637 lbs | 2700 lbs |
| Max Lift Height | 104" | 109" | 72" | 94.3" | 91.5" |
| Max Dump Angle | 48° | 56° | 46° | 51° | 48° |
| Bucket Roll Back Angle | 30° | 28° | 28° | 41° | 30.4° |
 |
|
