Worksaver Bale Spin-Off

Part #: Worksaver-BSO

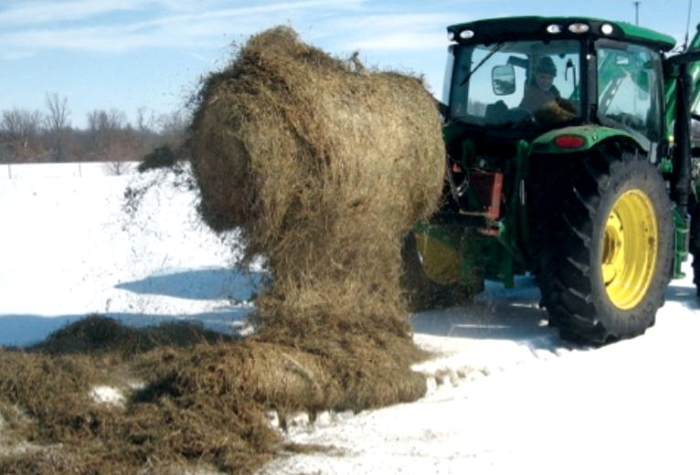

Designed as an efficient hay management tool for moving and feeding round bales, the RW Spin Off hydraulically rotates the bale, unwinding the hay into a windrow.
Details

Worksaver Bale Spin-Off

Designed as an efficient hay management tool for moving and feeding round bales, the RW Spin Off hydraulically rotates the bale, unwinding the hay into a windrow. Rotates in both directions for easy feeding and allows the operator to unroll what the cattle will clean up, eliminating wasted hay. Also, by changing the feeding location each day the operator can eliminate manure buildup. Available in three models and designed to fit Category II or Category III 3-pt hitches (FSO-906), front loaders (FLSO-907) and skid steers (SSSO908). All models are hydraulically driven for better operator control, provide easy operation from the cab of tractors or skid steers and feature a forged tapered spear for easier bale penetration. All have usable spear length of 53".

  • Eliminate wasted hay; only unroll what cattle will clean up in an hour.
  • Almost no manure buildup; by feeding in a different location each day.
  • Easy operation from the cab of the tractor or Skid Steer.
  • Models for 3-pt, Front Loaders & Skid Steers.
  • Hydraulically driven for better operator control.
  • Rotates in both directions for easy feeding.
  • Cushion valve in the motor provides protection for hydraulic components.
  • Forged tapered spear for easier spear penetration.



 Model FSO-906 FLSO-907 SSSO-908

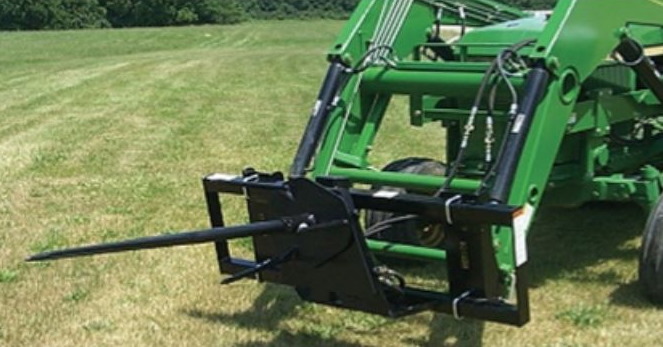

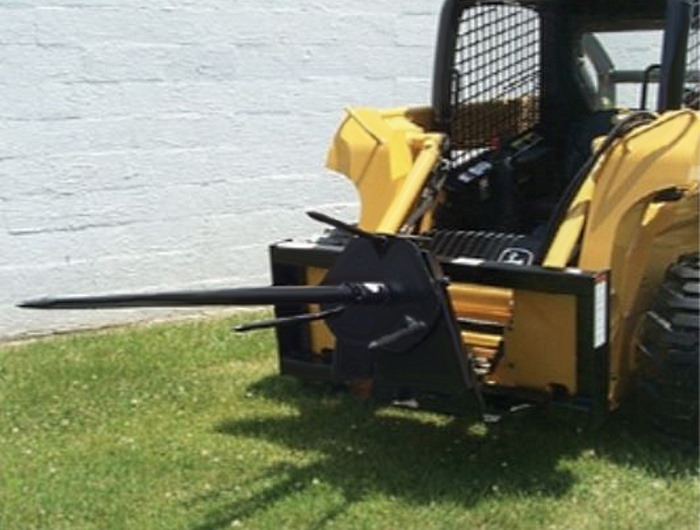

 Attaching Method 3-pt Cat. II/III Front loader pin-on Skid steer "universal"
 Spear Tapered Forged Tapered Forged Tapered Forged
 Frame 4" x 4" Square Tubing 3" x 4" Square Tubing 3" x 4" Square Tubing
 Required Hyd Flow 8-10 gpm 8-10 gpm 8-10 gpm
 Required Hyd Pressure 1500 psi 1500 psi 1500 psi
 Dimensions (LxWxH) 64.75" x 44.75" x 26.75" 64.75" x 60.5" x 23.25" 64.75" x 45.25" x 23.25"
 Weight 250 lbs 288 lbs 325 lbs
