Pequea Compact Manure Spreaders

Part #: Pequea-CMS
For the equine enthusiast or gentleman farmer Pequea's model 25G to 80PTO manure spreaders demonstrate big abilities in a compact size. Easily maneuvered in tight spaces, these compact manure spreaders allow for in-stall loading, making clean out easy and efficient.
Details

Pequea Compact Manure Spreaders

For the equine enthusiast or gentleman farmer Pequea's model 25G to 80PTO manure spreaders demonstrate big abilities in a compact size. Easily maneuvered in tight spaces, these compact manure spreaders allow for in-stall loading, making clean out easy and efficient.

Eight aggressive beaters:

  • Offer wide and even spread pattern
  • Engineered for maximum application
  • Constructed of durable 1/4" steel
  • Detachable for easy replacement if necessary

Features:

  • Ground Drive and PTO Models available
  • 25-80 bushel (18-57 cu.ft.) capacities
  • Box Construction - Fully Welded, 12 Gauge Steel
  • Floor Construction - High Density poly Vinyl 3/4" T & G
  • Apron Chain - 5/16 T-Rod (7/16 T-Tod on Model 80 PTO)



Ground Drive Models

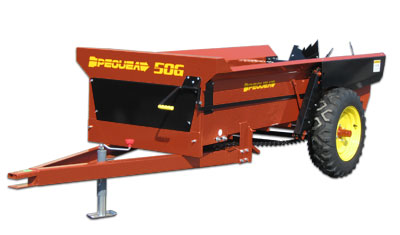

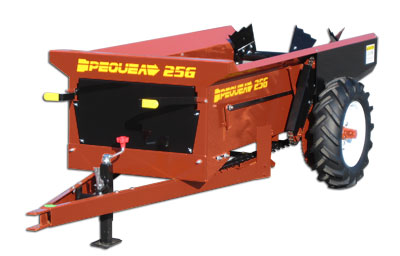

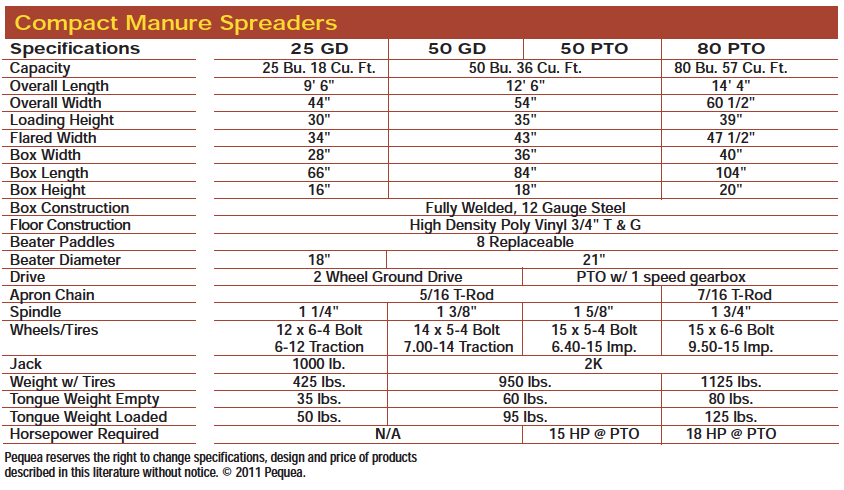

 Model 25GD 35GD 50GD
 Drive 2 Wheel Ground Drive
 Capacity, bushels/cubic feet 25 / 18 35 / 25 50 / 36
 Loading Height 30" 30" 35"
 Overall Dimensions, L x W x H 114" x 44" x 30" 138" x 44" x 30" 150" x 54" x 35"
 Box Dimensions, L x W x H 66" x 28" x 16" 80" x 28" x 16" 84" x 36" x 18"
 Beater Paddles, replaceable 8 8 8
 Beater Diameter 18" 18" 21"
 Jack 1000 lbs 1000 lbs 2000 lbs
 Weight w/ Tires 425 lbs 575 lbs 950 lbs



PTO Driven Models

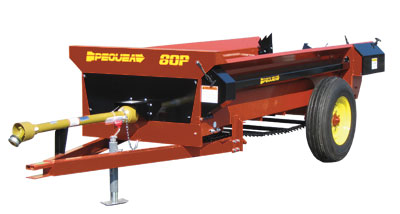

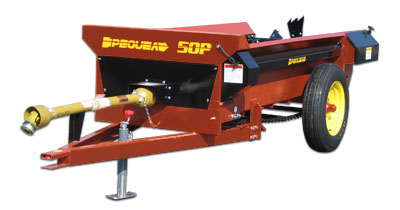

 Model 50PTO 80PTO
 Drive PTO w/ 1 speed gearbox
 Capacity, bushels/cubic feet 50 / 36 80 / 57
 Loading Height 35" 39"
 Overall Dimensions, L x W x H 150" x 54" x 35" 172" x 60.5" x 39"
 Box Dimensions, L x W x H 84" x 36" x 18" 104" x 40" x 20"
 Beater Paddles, replaceable 8 8
 Beater Diameter 21" 21"
 Jack 2000 lbs 2000 lbs
 Weight w/ Tires 950 lbs 1125 lbs
 PTO Horsepower Required 15 hp 18 hp
