Hoelscher Bale Forks

Part #: Hoelscher-BF
Accumulated bales are quickly picked up with one of these forks mounted to your loader. These models are also ideal for all-around loading and stacking. Bales can be laoded on your own hay trailers, trucks, or semi-trailers.
Details

Hoelscher Bale Forks

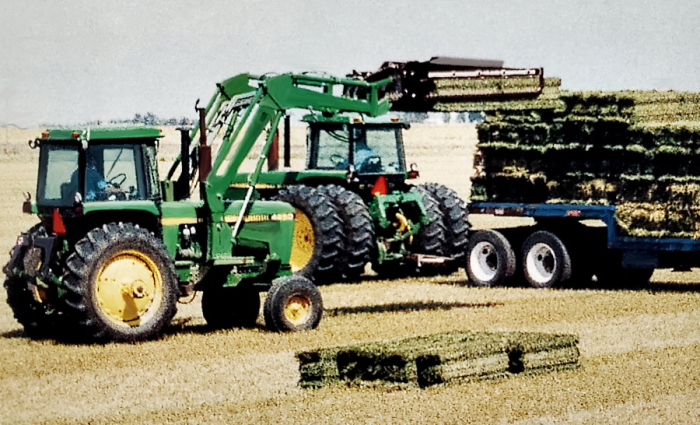

Hay Handling Forks

Accumulated bales are quickly picked up with one of these forks mounted to your loader. These models are also ideal for all-around loading and stacking. Bales can be loaded on your own hay trailers, trucks, or semi-trailers. The 100 series is for 14" x 18" bales, and the 200 series is for 16" x 18" bales. Each series has two lengths available to match your bale size. Bales may be picked up, moved, and stacked as high as your loader will raise, anywhere your tractor will go, and retrieved just as easily. When stacked, the bales will be tighter together and more weather resistant than if stacked by hand.

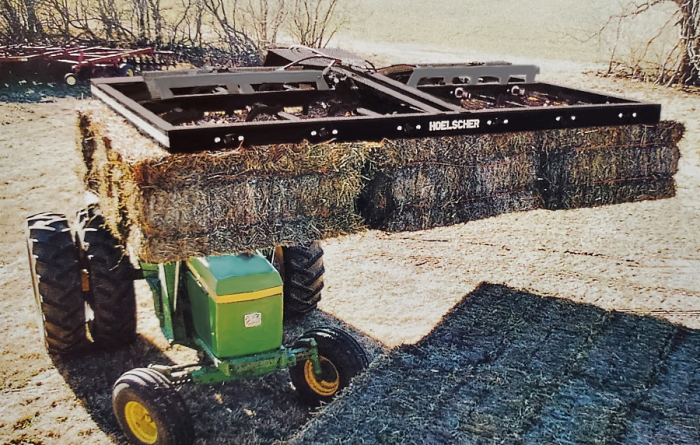

Stack Wagon Forks

These models are for those who have automatic bale wagons. With the proper size fork, a complete layer of 12, 15, or 18 bales can be picked up from a stack which was built with a three-bale wide stack wagon. This allows bales to be stacked in areas which are inaccessible to the wagon and also to be stacked higher than otherwise possible. Even tie-tiers may be moved with ease.

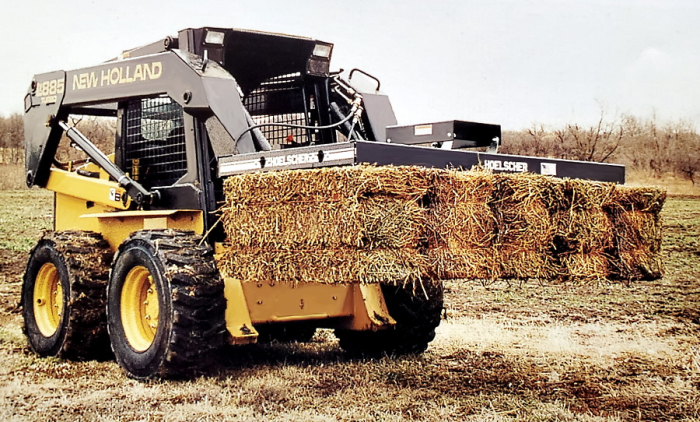

Skid Steer Loader Forks

Using hydraulic muscle for bale handling is not limited to large machinery. Now you can do a big job with a little loader. This model helps dairy farms, horse ranches, landscapers, or construction crews with their hay or straw handling chores. The model 50 will handle five bales, which is half of the Model 1000 accumulator's package. If you want to automate your hay handling, but don't have a large loader, or need the maneuverability of a skid-loader, this is your answer.



  Hay Handling Forks Stack Wagon Forks Skid Steer Forks
 Model 100 110 200 210 120 150 180 Model 50
 Overall Length 84" 107" 84" 107" 70" 84" 97" 41.5"
 Usable Length 74" 95" 74" 95" 60" 74" 87" 33.5"
 Width 70" 70" 80" 80" 108" 108" 108" 70"
 Height 23" 25" 23" 25" 23" 23" 23" 21"
 Weight 580 lbs 660 lbs 620 lbs 700 lbs 740 lbs 760 lbs 800 lbs 230 lbs
 No. of Hooks 20 30 20 30 26 34 40 10
 For Bale Size 14" x 18" 14" x 18" 16" x 18" 16" x 18" 14" x 18" 14" x 18" 14" x 18" 14" x 18"
 Bale Capacity 10 10 10 10 12 15 18 5
