Zimmerman Bale Elevators

Part #: Zimm-Elevator
Our elevators are ideal for moving bales and granular products. We have light-weight designs for portability, as well as heavier designs that boast speeds of 300 feet per minute.
Details

Zimmerman Bale Elevators

380 Series Elevators

The 380 Series Elevator is a lightweight, yet sturdy machine designed to help you efficiently move bales or corn. Powered by an electric motor, it can move up to twenty-four 48″ bales per minute. The paddles are made from 12 gauge reinforced steel to eliminate bending and are also non-tilt to keep bales from tumbling backwards even at the 50 degree maximum elevation. The 380 Series uses a #62 steel detachable chain which rides on wooden glides, lengthening its life and allowing for quieter operation. The hand crank has a built-in self-activating friction brake assuring safer operation by eliminating the danger of the winch handle slipping out of your hand and out of control. For economical purposes, we offer a light weight chain, #55, for the shorter model. When unloading corn you can insert extra paddles at 24″ to 48″ apart to speed unloading time. Zimmerman Elevators will design accordingly. A discharge chute which funnels corn right into your bin is also available.

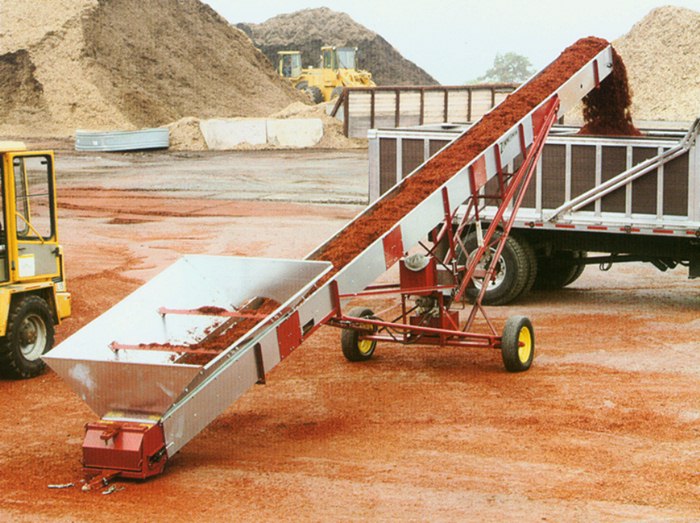

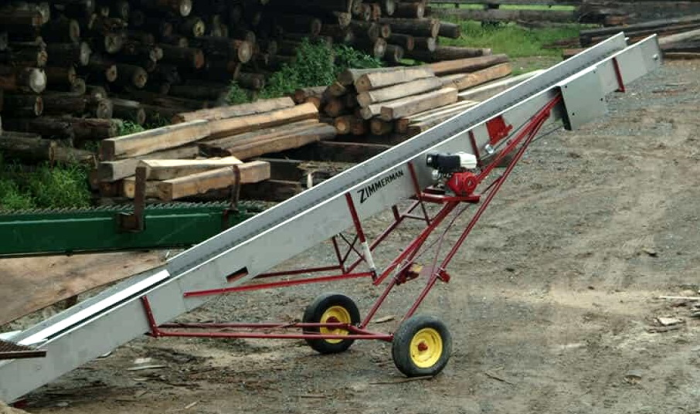

480 Series Elevator

The 480 Series Elevator is an elevator designed to meet a variety of applications. Manufactured of 16 gauge galvanized steel it is a lightweight yet sturdy machine to help you load or unload more efficiently. Featuring a belt speed of up to 300 feet per minute it will definitely speed loading time. Its ball bearings can be greased regularly to keep them operating smoothly. The hand crank has a built in self-activating friction brake assuring safer operation by eliminating the danger of the handle slipping out of your hand and out of control. Also available is the option of a trailer hitch allowing you to transport it from job to job. The axles also have quality ball bearings enabling you to tow the machine about at road speeds comfortably.



  380 Series 480 Series
 Trough Material 16 Gauge Galvanized Steel 16 Gauge Galvanized Steel
 Depth of Trough 7" 7"
 Trough Width 20.25" 20.25"
 Powered By Electric Motor Honda 13 HP Hyd. Belt Drive
5 HP Electric Motor Belt Drive
 Paddles 12 gauge 4.5" x 19.5" --
 Paddle Spacing (Std/Opt) 48" / 24" --



Elevator Length Tire Tracking Width Safe Operating Height
24' 64" 6' to 12'
28' 64" 7' to 14'
32' 64" 8' to 16'
36' 76" 9' to 18'
40' 76" 10' to 20'
44' 88" 12' to 22'
48' 88" 14' to 24'
