Worksaver Bale Grabbers
Worksaver Bale Grabbers

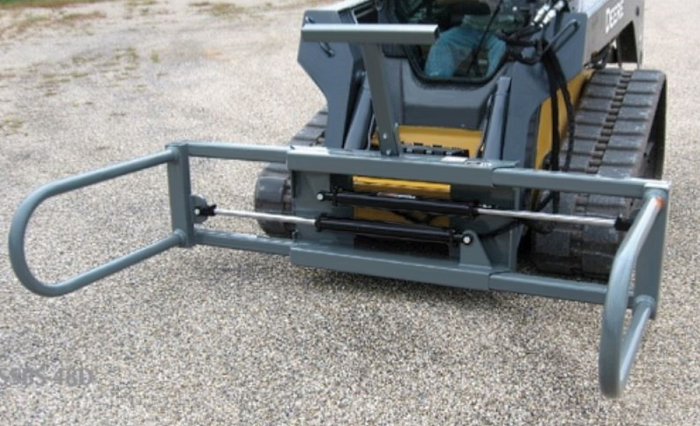

Large Bale Squeeze
Boost productivity when handling wrapped or unwrapped large square bales (unit will also handle square bales) with a Worksaver bale squeeze. Striking the right balance between clamping force and gentleness, these models feature arms made with round tubing to secure the bale without damaging the wrap. Large square bales are the preferred choice of dairies and livestock operators and models are offered to suit their needs. Models are available to fit "universal" skid steer mounts, and Euro/Global mounts. Models feature two hydraulically controlled arms to squeeze the bale for transport.

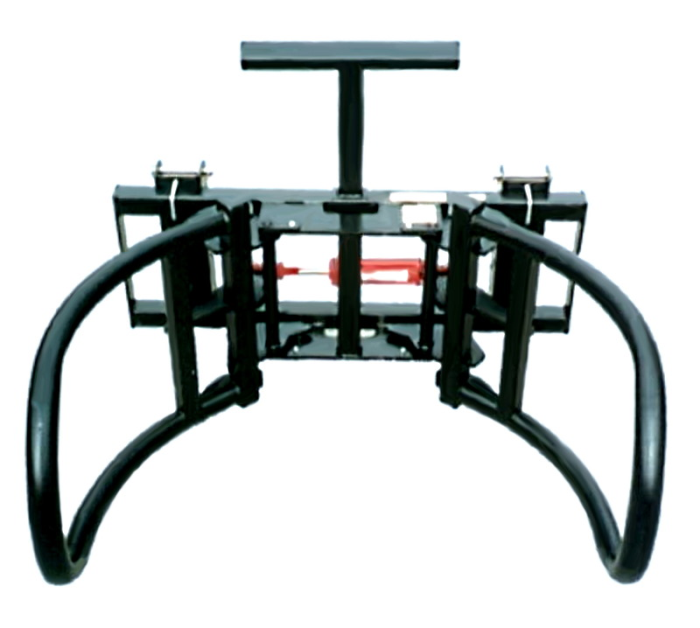

Skid Steer Bale Hand
The Skid Steer "Bale Hand" gently handles large wrapped or unwrapped round bales. Features smooth curved arms to prevent wrapped bale puncture when clamping. Fits skid steer and front loaders with the "Universal quick-attach system.

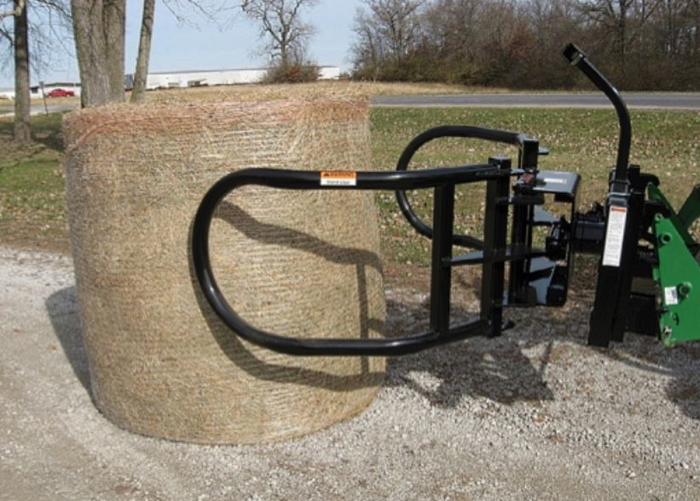

"R" Series Rotating Bale Hand
The "R" series is leading the way in stacking bales. The "R" series allows the operator to pick up a bale, rotate it up to 110°, and stack it like a soup can for increased versatility. All without having to place the bale down and reposition the clamps. This eliminates double handling, saving the operator time when unloading from a trailer.
| Bale Squeeze | Bale Hand | Rotating Bale Hand | ||
| Model | SSBS-48D | SSBH-2072 | SSBH-2072R | UBH-2072R |
| Attachment Type | SSL Quick Attach | SSL Quick Attach | SSL Quick Attach | Front Loader Mount |
| Bale Type | Large Square or Round | Round | Round | Round |
| Bale Size | 4' to 8' | 4' to 6' | 4' to 6' | 4' to 6' |
| Capacity | 2800 lbs | 2200 lbs | 2200 lbs | 2200 lbs |
| Rotation | -- | -- | up to 110° | up to 110° |
| Unit Weight | 715 lbs | 572 lbs | 730 lbs | 705 lbs |
 |
|
