Iron & Oak Vertical/Horizontal Log Splitter

Part #: IronOak-VHSplitter
Since 1982, Iron and Oak commercial log splitters have been rated among the top in the industry for their performance, ease of use, and reliability.
Details

Iron & Oak Vertical/Horizontal Log Splitter

Since 1982, Iron & Oak commercial log splitters have been rated among the top in the industry for their performance, ease of use, and reliability. Built for commercial use, Iron & Oak log splitters are engineered with precision to ensure efficiency and built with quality components that meet exacting company standards.

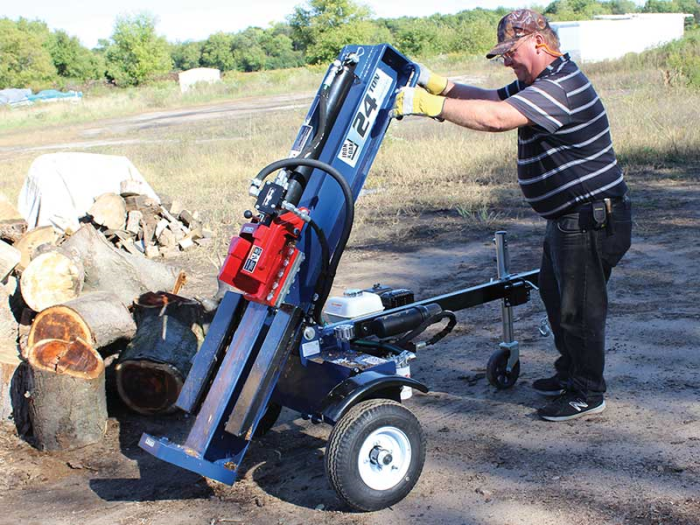

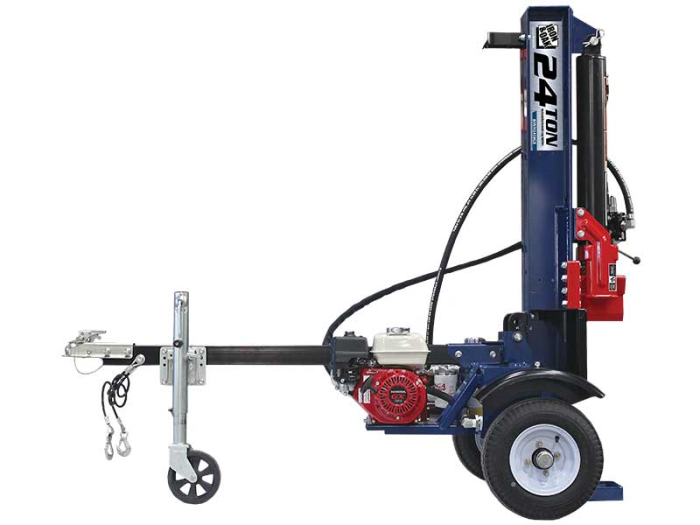

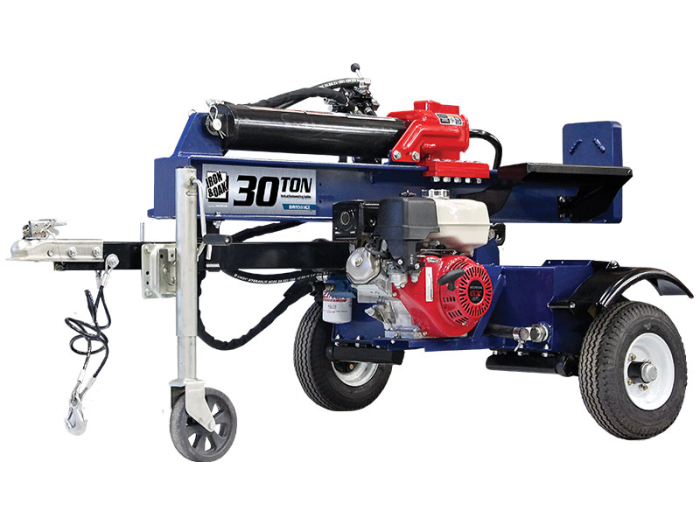

24 Ton / 30 Ton Vertical / Horizontal Log Splitters

  • Auto latch system for safe towing
  • Service friendly design for checking hydraulic fluid

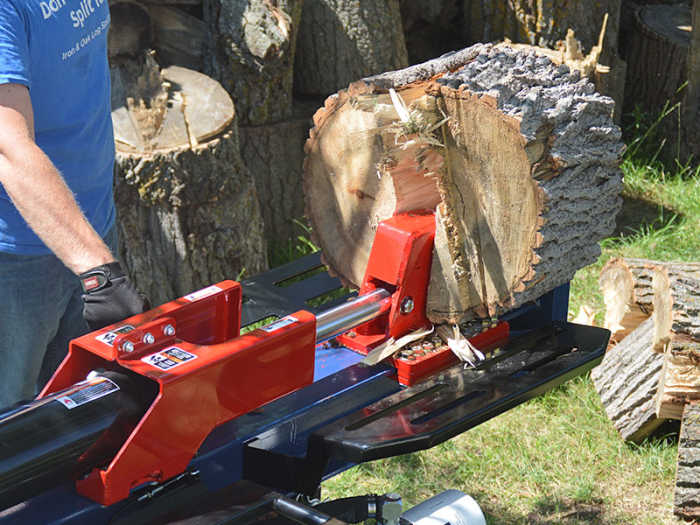

  • Heavy-duty wedge features five bolts per side
  • Heavy-duty log cradle, fenders and engine mount
  • 4-stage hydraulic filtration system
  • Heavy-duty crank down wheel jack for easy moving
  • Halite commercial cylinder seals for consistent pressure
  • Long lasting powder coat finish
  • Heavy-duty 4 bolt trailer hubs for towing
  • Offset valve for better operator positions
  • Tow cables included
  • 2" hitch coupler
  • Heavy-duty 2" x 3" box tube tongue
  • Optional Torsion Axle available on 30 Ton Model

37 Ton Vertical / Horizontal Log Splitter

  • Long lasting high gloss powder coat finish
  • Heavy duty 4 bolt trailer hubs for towing
  • Auto-idle
  • 16 long lasting carrier bolts
  • Rubber torsion axle
  • Max towing speed: 45 MPH unpaved / 55 MPH paved
  • Heavy-duty steel fenders
  • Nylon sleeved high pressure hoses
  • Heavy-duty crank down wheel jack for easy moving
  • Spring loaded vertical and horizontal rail locks
  • High pressure hoses on both the pressure & return side
  • 2" hitch coupler



 Model BHVH2418GX BHVH3018GX BHVH3716GX
 Splitting Force Appox. 24 tons Appox. 30 tons Appox. 37 tons
 Engine Honda GX160 Honda GX270 Honda GX270
 Log Opening 25" 25" 25"
 Cylinder 4" X 24" clevis type, 1.75" rod 4.5" X 24" clevis type, 1.75" rod 24" L x 5" Dia. clevis type
 Pump 11 GPM HI-LO 2 Stage 16 GPM HI-LO 2 Stage 16 GPM Barnes, 2-Stage
 Hydraulic Capacity 10.0 Gallons System Total 10.5 Gallons System Total 12 Gallons System Total
 Bed Height 32" 32" 34.5"
 Beam 6" Heavy-Duty Formed Steel 6" Heavy-Duty Formed Steel 6" Heavy-Duty Formed Steel
 Tires 4.8" X 8.00" Highway Rated 4.8" X 8.00" Highway Rated 4.8" X 12.00" Highway Rated
 Cycle Time 13 Seconds Complete Cycle 12 Seconds Complete Cycle 14 Seconds Complete Cycle
 Weight 675 lbs 705 lbs 725 lbs
