Grasshopper 900 Series

Part #: 900

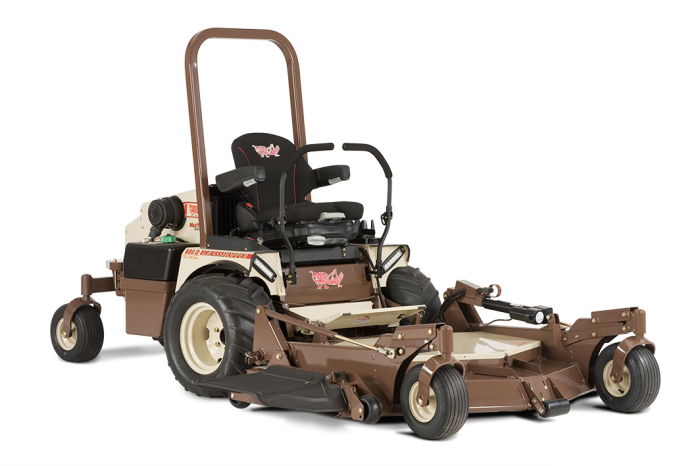

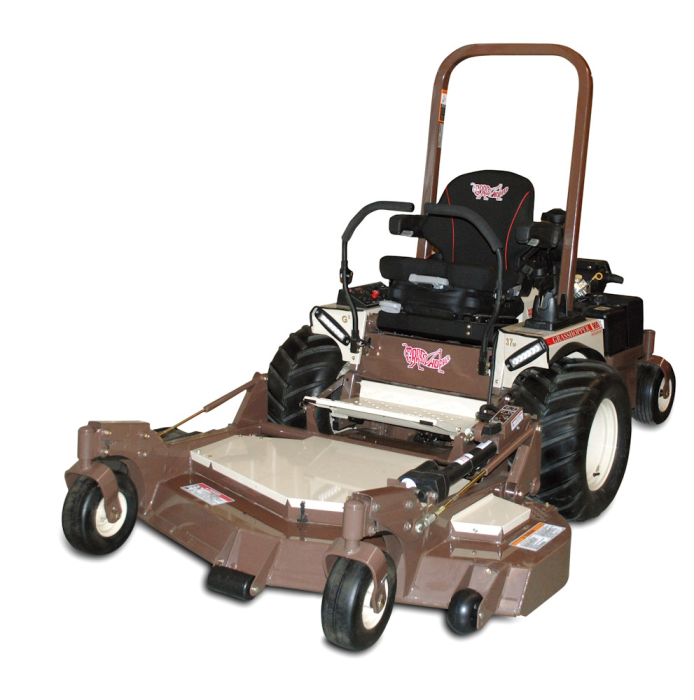

Grasshopper 900 Series FrontMount models feature a four-wheeled power unit with the cutting deck mounted forward of both the engine and operator's seat. The unit has dual tail wheels located at the rear of the unit, behind the engine.
Details
Videos
FrontMount mowers complete complex mowing jobs faster. Low-profile outfront decks reach under shrubs and fences, reducing trimming, allowing you to save time on high-acreage jobs with speeds up to 11 mph. A complete line of professional-quality, year-round implements provides all-season versatility.

900 Series options include:
·      Turf tires
·      Dual-fork and wide stance dual-fork tail wheels
·      Extended steering levers
·      Wide seat conversion kit
·      Premier Suspension Seat
·      Full flotation deck feature
·      Heavy-duty anti-scalp rollers
·      PowerFold®/Electric Height Adjustment for 52-, 61- and 72-inch (132.1 cm), (154.9 cm) and (182.9 cm) DuraMax® decks
·      Height adjustment switch on arm rest
·      Electric height adjustment for 72-inch (182.9 cm) DuraMax® decks
·      Mulching package
·      PowerVac™ Collection Systems
·      QuikConverter™ Implements


  Model 930D Model 932
Engine Manufacturer Kubota Kubota
Engine Horsepower 30 hp 32 hp
Fuel Type Diesel Gas
Available Deck Sizes 52" / 61" / 72" 52" / 61" / 72"
Cutting Height 1" - 5" 1" - 5"
Fuel Capacity 8.0 gal. 8.0 gal.
Speed (Forward/Reverse) 0-11.0 / 0-6.0 mph 0-11.0 / 0-6.0 mph
Transmission T-Drive hydrostatic T-Drive hydrostatic
Turning Radius true zero degree true zero degree


Deck Dimensions 52" 61" 72"
Overall Width (Side Discharge) 65.5" 74.5" 85.5"
Overall Width (Mulch) 53.5" 62.5" 73.5"
Overall Length 108.5" 110.5" 120"
Blades (3) 18" (3) 21" (3) 25"
