Bush Hog Road Graders
Bush Hog Road Graders
Whether a professional landscaper, a farmer, or weekend warrior, our line of landscape tools deliver results. Everything is designed around quality and build for years of dependable service. We offer many different models and sizes, with one just right for your operation. See your local dealer, for information, and advice. When you need a quality product that will last for years, the smart choice is Bush Hog.
| Series | Compact | RG Series | HDRG Series | CG Series |
| Working Widths | 48", 60" | 60", 72", 84" | 84", 96" | 84" |
| Hitch | Cat 1, Quick Attach |
Cat 1, Quick Attach |
Cat 1 & 2, Quick Attach |
Skid Steer (3 pt opt.) |
| Cutting Edges | 3/8" x 6" | 1/2" x 6" | 1/2" x 6" | 1/2" x 6" |
| HP Required | 24 hp | 40 hp | 70 hp | 45 hp |

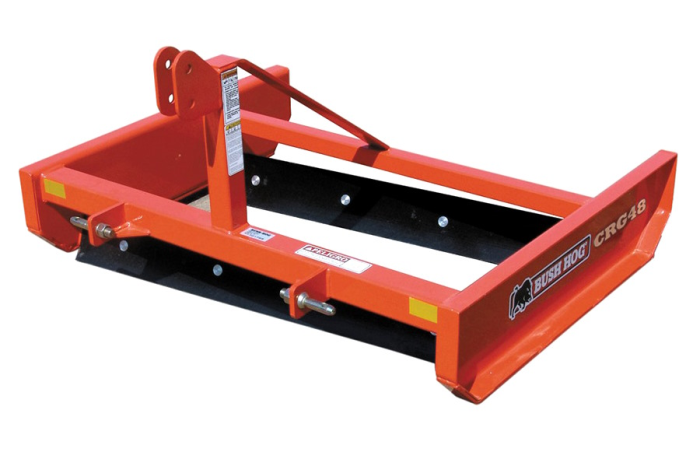

Compact Road Graders
More tools to handle the landscaping chores of homeowners and compact tractor owners… Bush Hog now offers a light-duty, compact road graders that expand the work capabilities of your small, compact and subcompact tractors. Bush Hog is committed to providing you more reasons to get out of the house and go to work. The dirt around your house or workplace better look out… things are going to be moving!

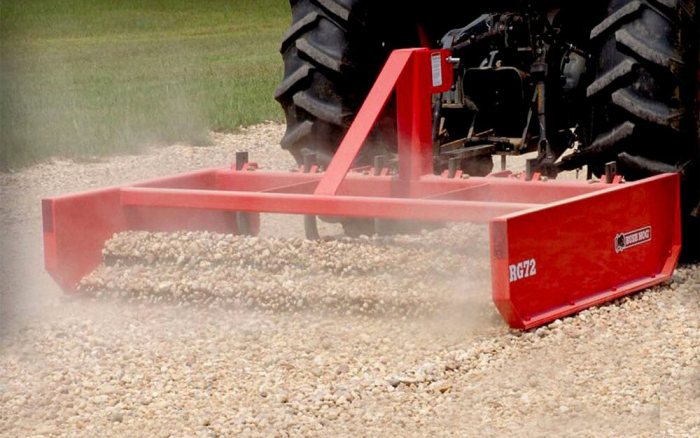

RG Series Graders
Bush Hog® Road Grader Blades fit a wide range of tractors. The Heavy-Duty, CAT I three-point hitch, 4 in. x 4 in. mainframe and double-lug lower hitch points help ensure performance and reliability. Shearing action of the material being worked is provided by two, reversible, high carbon steel cutting edges. One edge mounted inside the box and the other mounted on the back side allow the blade to be operated in forward or reverse. Maximum penetration in hard-packed material is accomplished by the scarifier kit which has a maximum working depth of 3 in.
HDRG Series Graders
The new Bush Hog® Heavy Duty Road Grader is available in 7-feet and 8-feet operating widths. The HDRG’s heavy duty construction boasts a weight of up to 828-lbs., enabling it to tackle any grading job. The HDRG’s design features all-welded construction, a max rating up to 90 HP, and two offset and angled scraper blades that are vertically adjustable. The vertical blade adjustment system provides the user the ability to adjust the cutting depth to compensate for blade wear and tear. Heat treated plow point scarifier shanks enable the HDRG to rip through most any earthen surface when grading driveways, fire lanes, and maintaining/building dirt or gravel roads.

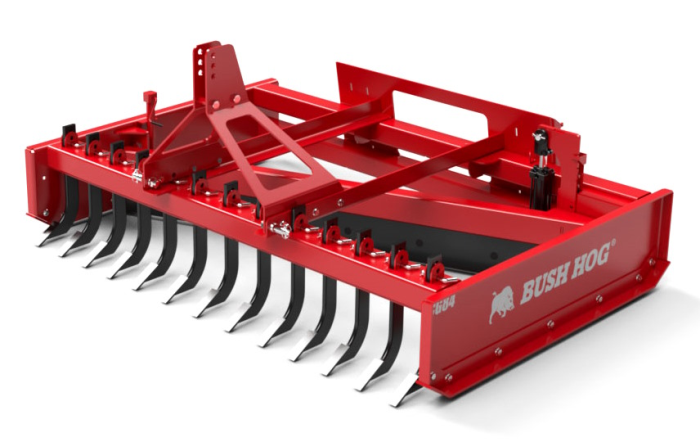

CG84 Series Graders
Introducing the new Bush Hog Crowning Grader 84” (CG84). With 13 heavy duty scarfiers coupled with a hydraulically controlled angling blade the CG84 makes short work of the most neglected roads. The heavy duty shanks rip the potholes and washboard roadbeds then the remote adjustable blade moves the loose material to create a crown in the road to facilitate drainage. Available in both skid steer mounting and optional CATI/II 3pt hitch. Rated for skid steers and tractors between 45 and 100hp. Works equally well in both dirt and gravel road conditions.
 |
|
