IronCraft Grapple Rakes
Part #: Iron-GRake
IronCraft Grapple Rakes are ideal for raking and loading debris. The shape of the grapple makes it easy to roll debris into tight piles.
Details
IronCraft Grapple Rakes
Standard Duty Grapple Rakes
IronCraft Grapple Rakes are ideal for raking and loading debris. The shape of the grapple makes it easy to roll debris into tight piles. We use American made cylinders, rated at 4000 psi, to handle the toughest jobs.

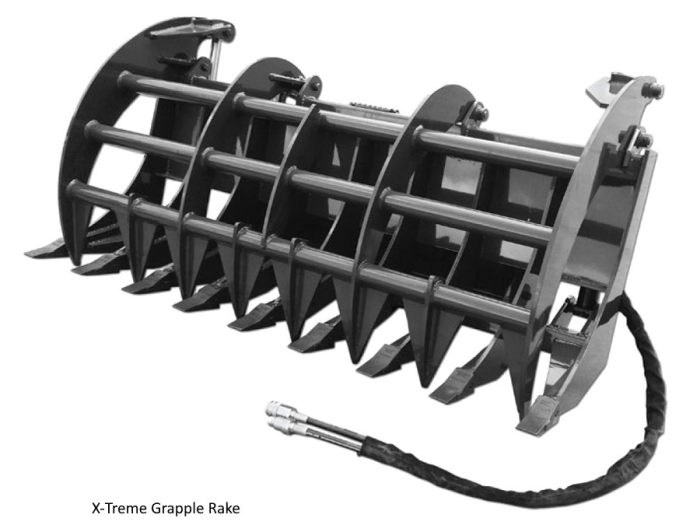

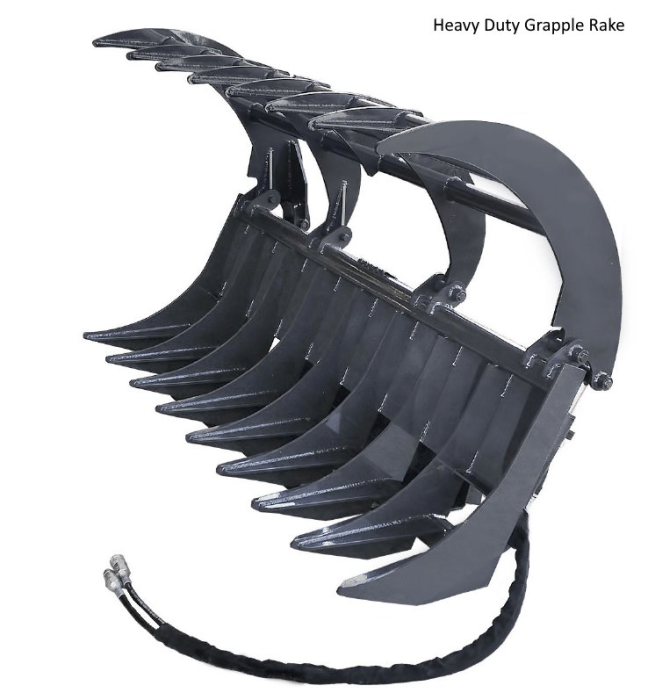

Heavy Duty & X-Treme Grapple Rakes
Our Heavy Duty and X-Treme Grapple Rakes are ideal for raking up debris. The grapples can then be used to load the debris into a dump truck. The shape of the grapple rake makes it easy to roll debris into tight piles if you are planning to burn. A single grapple or two independent grapples are available. IronCraft use twin 2" bore by 10" stroke cylinders, rated at 4000 psi to handle the toughest jobs. The X-Treme Grapple Rakes are built with 1/2" top quality steel and come standard with 23 series teeth.
| Standard Duty | Heavy Duty | X-Treme | |
| Widths Available | 63", 66", 72" | 63", 72", 78", 81", 84", 96" | 63", 72", 81", 84", 96" |
| Height w/Grapple Open | 42" | 51" | 51" |
| Overall Depth | 19" | 26" | 27" |
| Grapples | Single | Single or Two Independent | |
| Skid Steer Size | 35-60 hp | 50-70 hp | 65+ hp |
| Cylinders | Twin - 2" x 10" | Twin - 2" x 10" | Twin - 2" x 10" |
| Tine Thickness | 3/8" | 3/8" | 1/2" |
 |
|
