IronCraft Root Grapples
IronCraft Root Grapples
IronCraft root grapples are a necessity in the tree industry, and for contractors clearing lots for home site building. They are ideal for moving logs, brush, rocks or just about any type of debris, which makes them essential tools for storm damage clean up.
All units are built from top quality steel and will exceed the lifting capacity of the skid steer machines they are used on. The grapples feature independently operated cylinders to adjust to uneven loads. They also feature grease fittings at every pivot point.
One feature that separates IronCraft Root Grapples from the competitors is that we offer optional bolt on cylinder rod covers to protect the hydraulic cylinder shafts. Most root grapples only have the actual cylinder enclosed and not the shaft. IronCraft gives you the option to protect both.

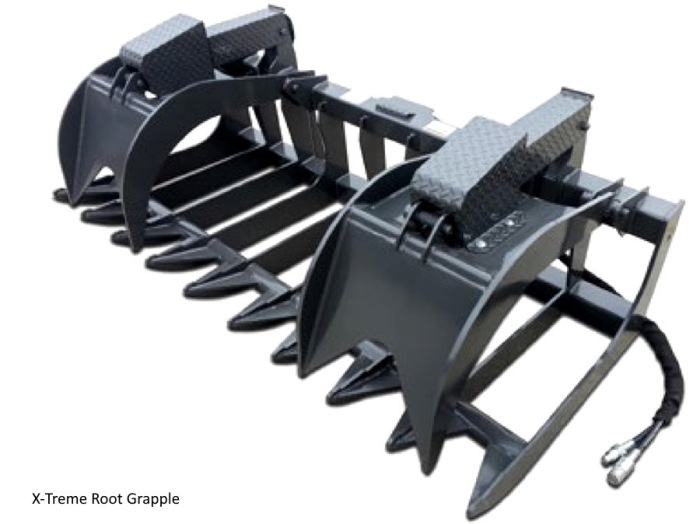

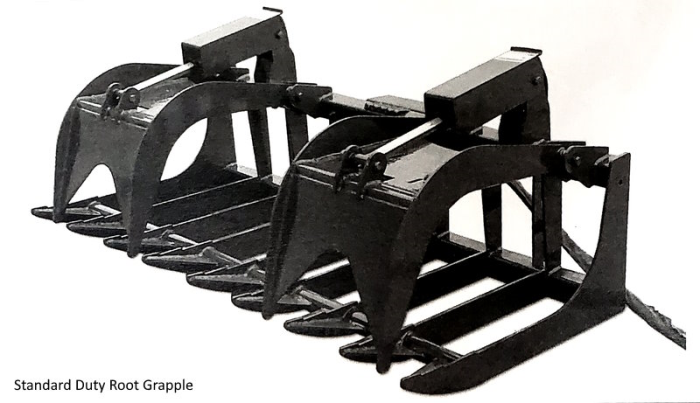

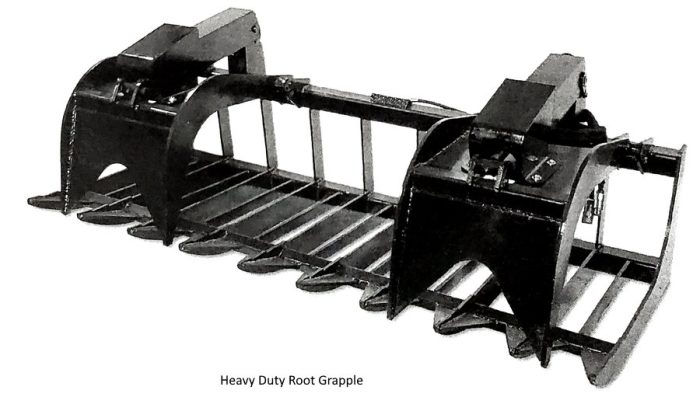

| Standard Duty | Heavy Duty | X-Treme | Severe Duty | |
| Widths Available | 63", 66", 72" | 63", 66", 72", 78", 81" | 66", 72", 78", 81", 84" | 72", 84" |
| Height w/Grapple Open | 35" | 35" | 38" | 41" |
| Overall Depth | 38" | 38" | 42" | 37" |
| Skid Steer Size | 35-45 hp | 45-65 hp | 65+ hp | 80+ hp |
| Cylinders | Dual - 2" x 10" | Dual - 2" x 10" | Dual - 2" x 10" | Dual - 2" x 10" |
| Top Tine Thickness | 3/8" | 1/2" | 5/8" | 5/8" |
| Bottom Tine Thickness | 3/8" | 1/2" | 1/2" | 3/4" |
 |
|
