IronCraft Rock Grapples
IronCraft Rock Grapples
Standard Duty Grapples
The IronCraft Rock Grapples are great for sifting through dirt in order to remove rocks and debris. The standard Rock Grapple has dual cylinders ans works with 45-60 hp machines.

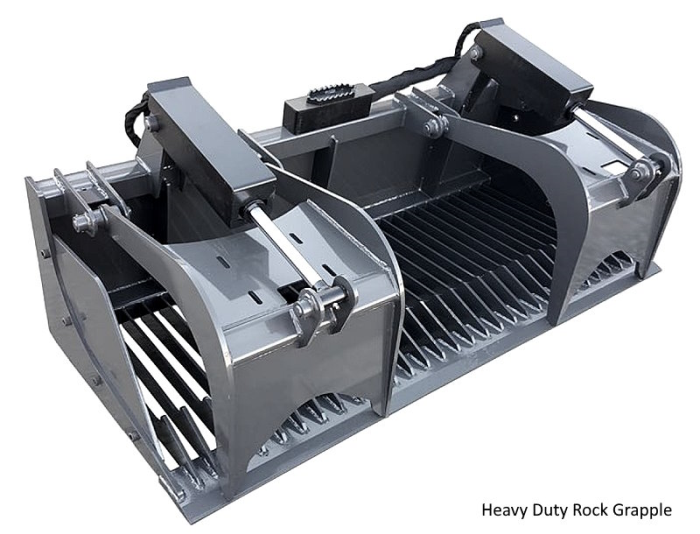

Heavy Duty Grapples
Our Heavy Duty Rock Grapple is great for sifting through dirt in order to remove rocks. With the tines set at 2–3/8″ apart, you pick up most everything but the dirt. You can also pick up large rocks, logs, brush or just about anything else by use of the grapples. We use twin 2″ bore by 10″ stroke cylinders rated at 4,000 psi on all of our grapples. The rock grapple comes standard with 3/4 x 6 cutting edge and is upgraded to 1 x 8 edge when optional teeth are added.

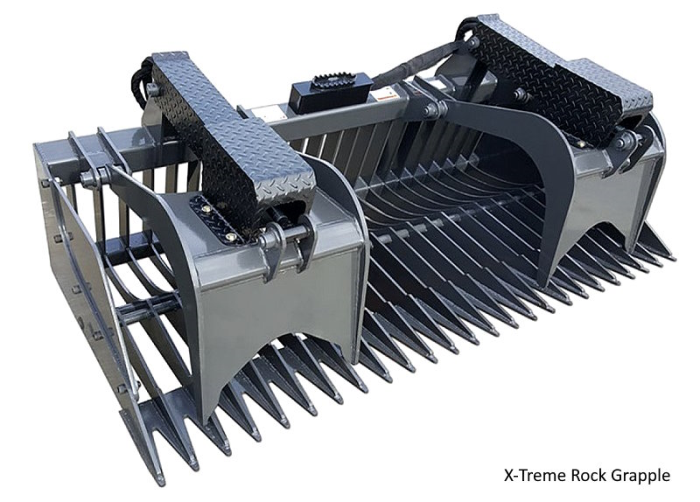

X-Treme Grapples
Our X-Treme Rock Grapple is great for sifting through dirt in order to remove rocks. With the tines set at 3” apart, you pick up most everything but the dirt. You can also pick up large rocks, logs, brush or just about anything else by use of the grapples. We use twin 2" bore by 10" stroke cylinders rated at 4,000 psi on all of our grapples.
| Standard Duty | Heavy Duty | X-Treme | |
| Widths Available | 60", 66", 72" | 63", 66", 72", 78", 81" | 66", 72", 78", 81", 84" |
| Height w/Grapple Open | 41" | 40" | 37" |
| Overall Depth | 36" | 34" | 42" |
| Tine Spacing | 2-3/8" | 2-3/8" | 3" |
| Cylinders | Dual - 2" x 10" | Dual - 2" x 10" | Dual - 2" x 10" |
| Cylinder Rating | 4000 PSI | 4000 PSI | 4000 PSI |
 |
|
