Pequea Gravity Tilt Trailers
Part #: Pequea-GTTrailer

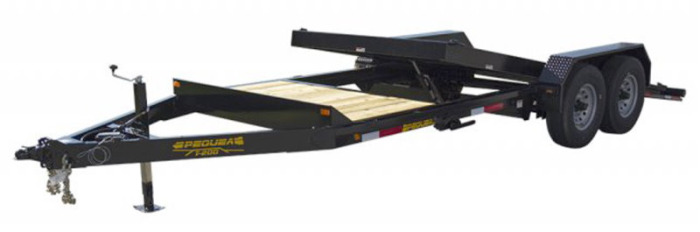

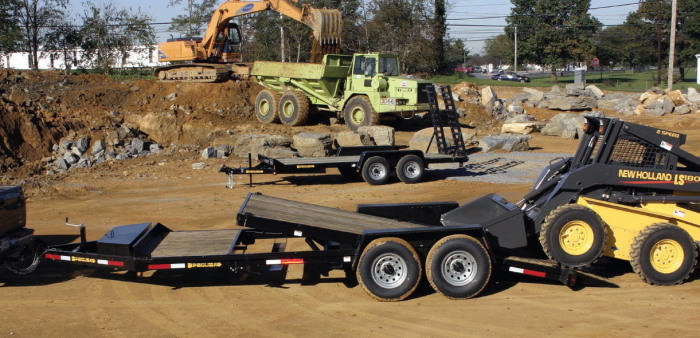

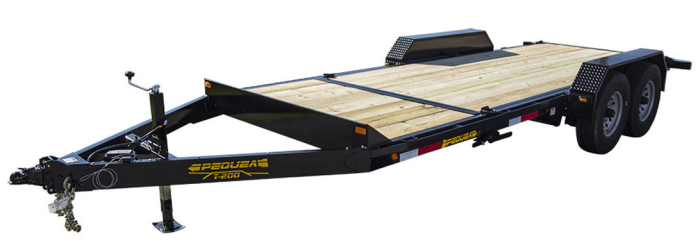

Loading equipment just got a whole lot easier and safer with a Pequea T200 gravity tilt skidsteer trailers. The T200 trailer combines a 4' stationary deck and a 16' gravity tilt deck.
Details
Files
Pequea T200 Tilt Trailers
 |
|
Loading equipment just got a whole lot easier and safer with a Pequea T200 gravity tilt skidsteer trailers. The T200 trailer combines a 4' stationary deck and a 16' gravity tilt deck.
|
| 10,000 lb GVWR | 12,000 lb GVWR | 14,000 lb GVWR | 16,000 lb GVWR | |
| Overall Width | 102" | 102" | 102" | 102" |
| Deck Width | 81.75" | 81.75" | 81.75" | 81.75" |
| Deck Length | 4' Stationary + 16' Tilting | 4' Stationary + 16' Tilting | ||
| Deck Height | 19.5" | 19.5" | 19.5" | 19.5" |
| Main Frame | 7" x 9.8 lb Structural Channel | 7" x 9.8 lb Structural Channel | ||
| Axles | (2) Dexter 6K 6 Bolt | (2) Dexter 6K 8 Bolt | (2) Dexter 7K 8 Bolt | (2) 8K 8 Bolt |
| Suspension | Slipper Leaf Springs | Slipper Leaf Springs | ||
| Wheels | 6 Bolt 15" | 8 Bolt 16" | 8 Bolt 16" | 8 Bolt 17.5" |
| Tires | 225/75 D15 | 235/80 R16 | 235/80 R16 | 235/75 R17.5 LRH |
| Hitch | Adj. 2-5/16" Ball Coupler | Adj. 2-5/16" Ball Coupler | ||
| Jack | 7,000 lb Drop Leg | 10,000 lb Drop Leg | 10,000 lb Drop Leg | 10,000 lb Drop Leg |
| Brakes | Standard - Both Axles | Standard - Both Axles | ||
| Weight | 3250 lbs | 3250 lbs | 3250 lbs | 3250 lbs |
 |
|
