Crossfire Vertical Auger Spreaders
Part #: CrossFire
The Crossfire Series Vertical Spreader combines technology and performance into a smaller configuration to give you maximum performance in the 260 - 540 bushel range.
Details
Files
Crossfire Vertical Auger Spreaders

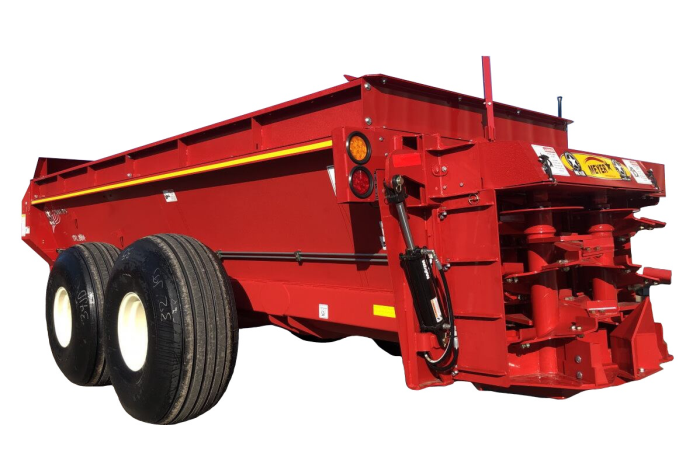

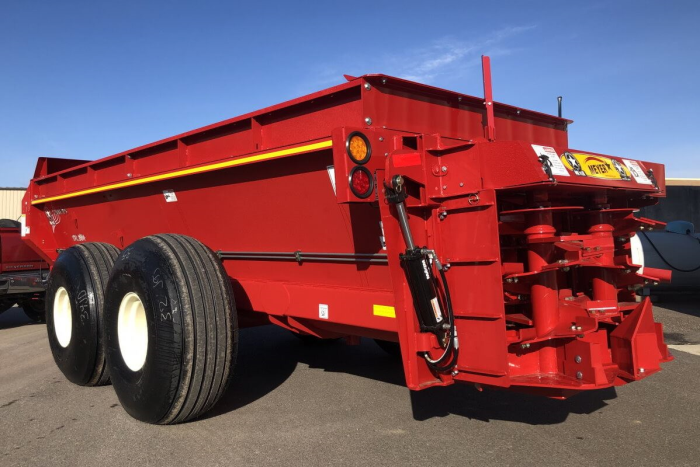

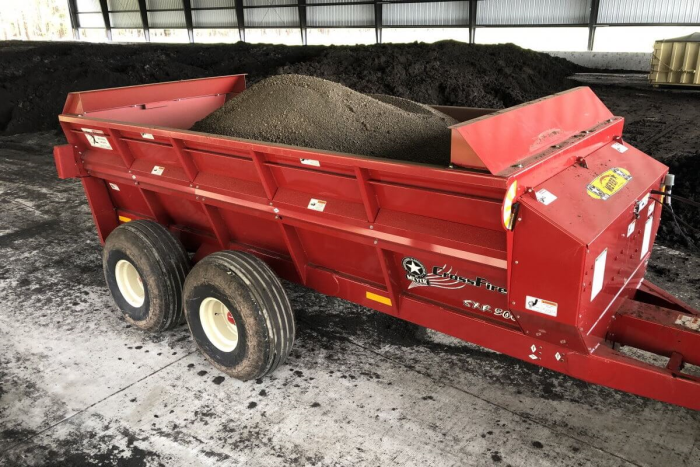

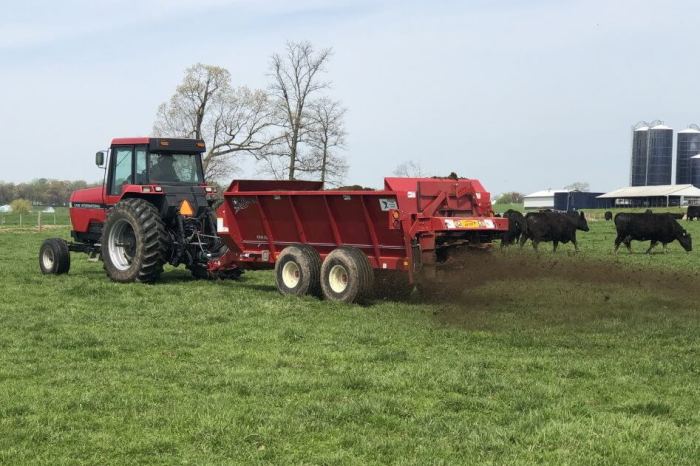

The Crossfire Series V-Spreader combines technology and performance into a smaller configuration to give you maximum performance in the 260 - 540 bushel range. Our unique Rear Discharge System is unlike all others, incorporating a patented rear discharge system with two shaft-driven vertical expellers for premium spread performance. The expellers are fed by an aggressive 3-auger system which powers through pack manure, semi solids, sand sludge, slurry, litter, biosolids, and certain lime and compost products. Rear Discharge keeps your tractor and spreader clean while maximizing the value of the product you are applying - it just makes sense!
 |
 |
| SXL Series | SXR Series | |
| Capacity (Heaped) - No Ext. | 260-390 bushels | 400-500 bushels |
| Capacity (Heaped) - With Ext. | 360-540 bushels | 465 bushels |
| Capacity (Struck) - No Ext. | 181-272 cu.ft. | 250-324 cu.ft. |
| Capacity (Struck) - With Ext. | 233-350 cu.ft. | 280 cu.ft. |
| Inside Tank Length | 12', 18' | 15' |
| Overall Length | 20', 26' | 15' |
| Payload | 10,000-24,000 lbs | 10,000-24,000 lbs |
| Empty Weight | 6900-9720 lbs | 8210-9220 lbs |
*For Full Specifications and More Info, Please Click the "Files" Tab above
 |
|
