Pequea Litter/Lime Spreaders

Part #: Pequea-LLSpreader

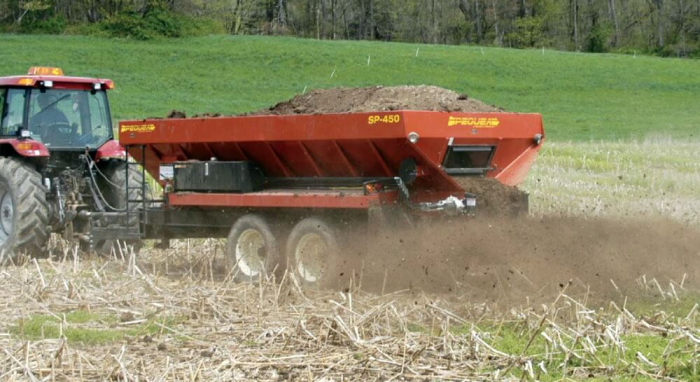

The Pequea SP Series Spreaders are offered in 16′, 18′, 20′, and 22′ hopper lengths, the SP spreaders bring up to 580 cubic foot hauling capacity along with easy-to-use flow control valves for the apron and spinner speeds. With over 15 different options available including a truck mount configuration, the SP Series is highly adaptable to any environment.
Details
Files

Pequea Litter/Lime Spreaders

The Pequea SP Series Spreaders are offered in 16′, 18′, 20′, and 22′ hopper lengths, the SP spreaders bring up to 580 cubic foot hauling capacity along with easy-to-use flow control valves for the apron and spinner speeds. With over 15 different options available including a truck mount configuration, the SP Series is highly adaptable to any environment.



 Model SP400 SP450 SP500 SP550
 Hopper Length 16' 18' 20' 22'
 Hopper Width (Top) 96" 96" 96" 96"
 Overall Height 89" 89" 90" 91"
 Overall Length 26' 28' 30' 32'
 Overall Width 97" 97" 98" 99"
 Capacity (Struck) 290 ft³ 360 ft³ 400 ft³ 450 ft³
 Capacity (Heaped) 450 ft³ 490 ft³ 530 ft³ 580 ft³
 Payload 20,000 lbs 20,500 lbs 24,000 lbs 27,000 lbs
 Empty Weight 6000 lbs 6200 lbs 6400 lbs 6600 lbs

   Click the "Files" tab above to download full specifications
