Bush Hog Disc Mowers
Part #: BH-DHMower
Bush Hog's four models of DHM hay mowers flt a large range of tractor sizes and production requirements. These mowers have Bush Hog's patented cutter bar design to handle your toughest mowing areas. With mowing widths ranging from 7' to 10', these mowers have been performance-proven with reduced wrapping and plugging issues in heavy and light hay crops.
Details

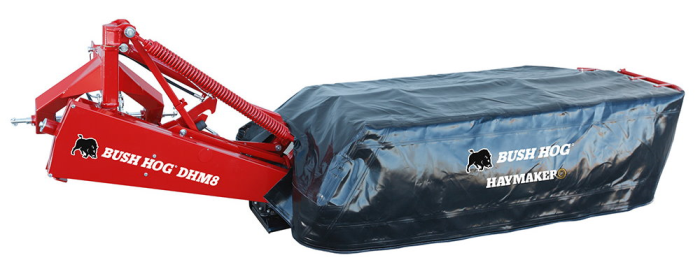

Bush Hog Disc Hay Mowers
Bush Hog®'s four models of DHM hay mowers flt a large range of tractor sizes and production requirements. These mowers have Bush Hog®'s patented cutter bar design to handle your toughest mowing areas. With mowing widths ranging from 7' to 10', these mowers have been performance-proven with reduced wrapping and plugging issues in heavy and light hay crops. As always, they are built Bush Hog® tough to meet the hay production and service dependability requirements of today's farmers and ranchers.
- DHM mowers have been performance tested and proven to reduce plugging and wrapping in both light and heavy hay crops.
- Each cutter bar has been designed with added stiffness to provide exceptional strength in all working conditions.
- Oval discs allow for superior flow of material over the cutter bar and a better distribution of your hay crop.
- Robust, double-sided steel knives are perfectly timed to overlap at just the right distance to provide a smooth, clean, clog-free cut.
- The gear-driven cutter bar houses oiled and sealed bearings to reduce contamination and provide ease of maintenance.
- A hydraulic mower bar cylinder effortlessly lifts the unit for end of field turns and transport (DHM8, DHM9, DHM10)
- Ground pressure of the cutter bar can be easily adjusted for a variety of ground conditions (DHM8, DHM9, DHM10).
- Crop dividers come standard to provide clear distinction between cut and standing hay.
- Mowers feature a mechanical breakaway to protect units from damage when striking an unexpected obstacle.
| Model | DHM7 | DHM8 | DHM9 | DHM10 |
| Working Width | 6' 9" | 8' | 9' 3" | 10' 6" |
| Number of Discs | 5 | 6 | 7 | 8 |
| Blades per Disc | 2 | 2 | 2 | 2 |
| Driveline Size | Cat. 4 | Cat. 4 | Cat. 4 | Cat. 4 |
| Minimum Tractor HP | 40 hp | 46 hp | 52 hp | 56 hp |
| Hitch | Cat. 2 | Cat. 2 | ||
| PTO Speed | 540 rpm | 540 rpm | ||
| Safety Curtain | Standard | Standard | ||
| Weight | 906 lbs | 1235 lbs | 1300 lbs | 1400 lbs |
 |
|
