Bush Hog Bale Spears

Part #: BH-BSpear
An effective way to move or stack hay bales is with these economical 3-PT and Loader Mount Bale Spears for handling round bales up to 3500 lb.
Details

Bush Hog Bale Spears

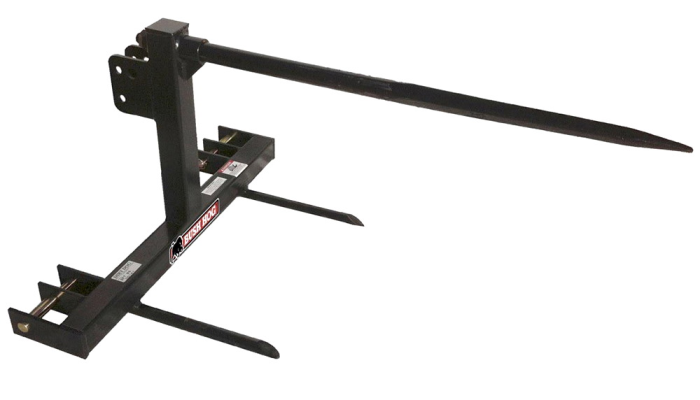

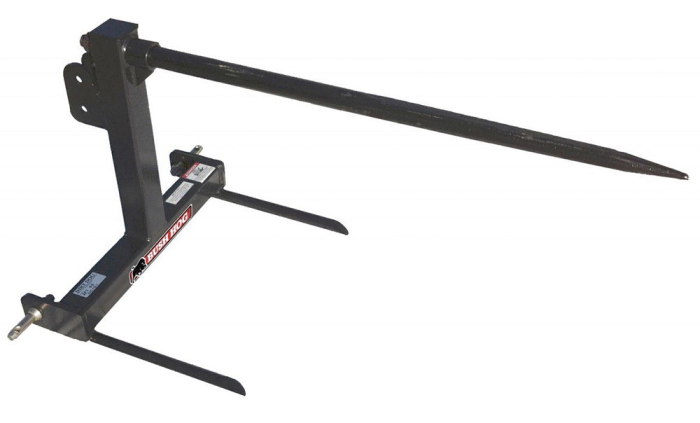

3-Point Bale Spears

An effective way to move or stack hay bales is with these economical 3-PT Bale Spears for handling round bales up to 2,000 lb. The units feature a main tapered spear 42" long and 2 welded balance spears. They are designed for 25–45 HP tractors to efficiently move hay bales without a loader. In combination with a loader on the front, the operator’s efficiency is greatly improved. The units are powder coated with a durable black paint to give lasting protective finish. Each unit fits both Standard and Quick Hitches.

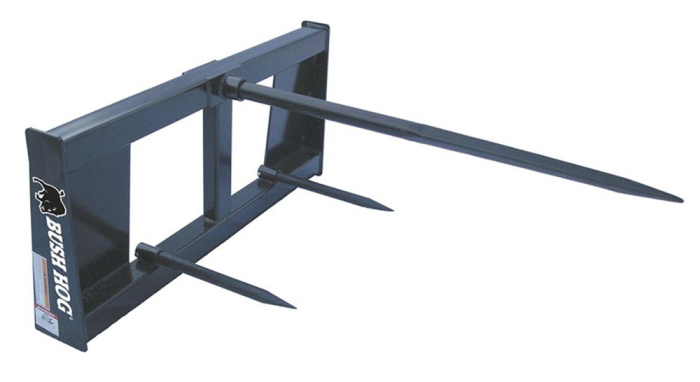

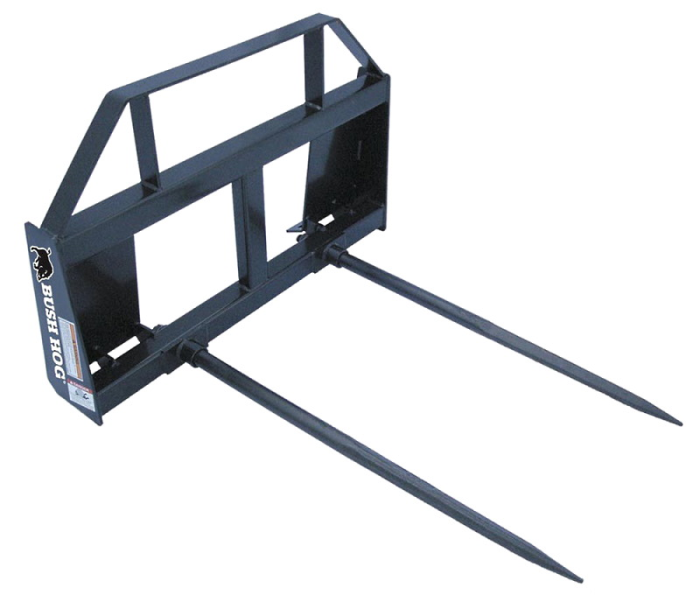

Loader Mounted Bale Spears

Bush Hog® BS series bale spears are built Bush Hog® tough. With a lift capacity of 3,500 lb. and capable of being mounted on a universal skid steer frame, these bale spears are designed to lift, transport and stack round or square bales of hay or other organic matter. Let Bush Hog®’s BS series bale spears help you get your work done faster.



  3-Point Models Loader Mount Models
 Model 3PBS1 3PBS2 BS1 BS2
 Hitch Type Cat 1, Std or QH Cat 1 & 2, Std or QH Universal Skid Steer, Euro
 Main Spear(s) (1) 42" (1) 42" (1) 42.5" (2) 42.5"
 Stabilizer Spikes 2 2 2 --
 Overall Width 31.875" 39" 45.313" 45.313"
 Overall Height 25.375" 25.375" 21.188" 30"
 Tractor HP Range 25-45 hp 25-45 hp -- --
 Weight 80 lbs 97 lbs 155 lbs 200 lbs
 Max Load Capacity 2000 lbs 2000 lbs 3500 lbs 3500 lbs
