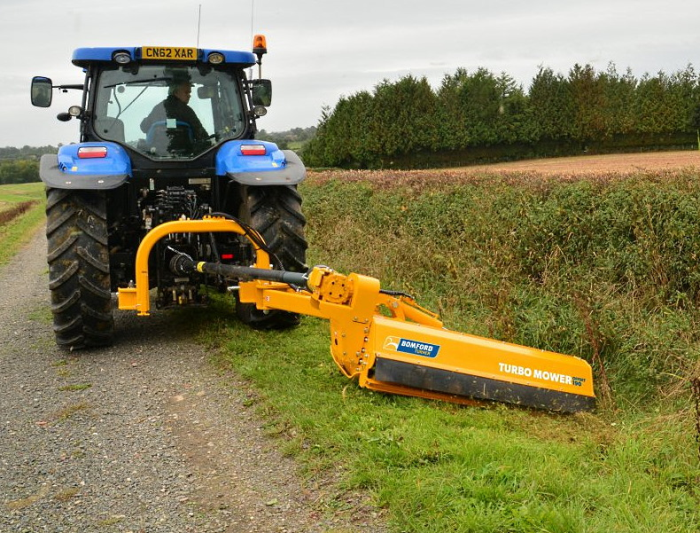

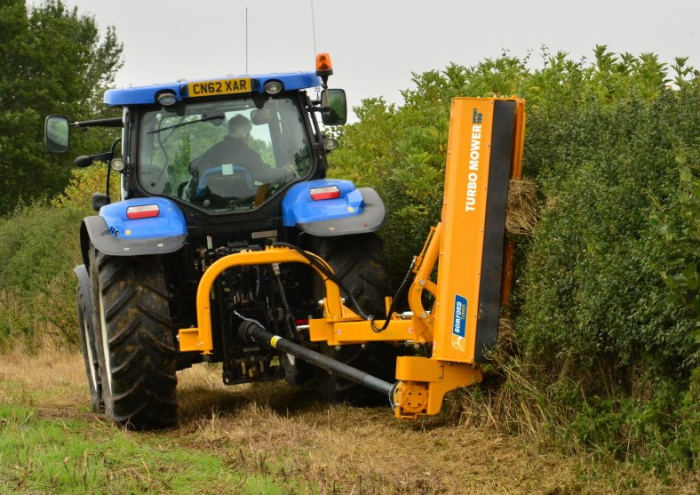

Bomford Turbo Mower Offset
Part #: Bomford-TMO
The Turbo Mower Offset range offers operators a choice of cutting widths at cost effective prices. A well designed and constructed range, the Turbo Mower Offset is built with durability and ease-of-use in mind – a low maintenance machine that is simple to operate.
Details
Bomford Flail Mowers - Turbo Mower Offset
The Turbo Mower Offset range offers operators a choice of cutting widths at cost effective prices. A well designed and constructed range, the Turbo Mower Offset is built with durability and ease-of-use in mind – a low maintenance machine that is simple to operate.
- 5' 3", 6' 3" and 7' 4" cutting widths
- Three-point linkage-mounting
- PTO overrun protection
- Choice of whale-tail or J flails
- 155 degrees of head movement
- Vertical and horizontal hydraulic adjustment
- Safety breakaway
- Double-skin protection
- Fuel-efficient, high-performance double spiral rotor
- Cutting height of 1.25" - 3.25"
- Maximum cutting diameter of 2"
- Optional hydraulic floation system
| Offset Pro Series | |||
| Model | 160 | 190 | 225 |
| Working Width | 5' 3" | 6' 3" | 7' 4" |
| Cutting Height | 1.25"-3.25" | 1.25"-3.25" | 1.25"-3.25" |
| Offset | Hydraulic | Hydraulic | Hydraulic |
| PTO Speed | 540 rpm | 540 rpm | 540 rpm |
| Number of Flails | 20 | 24 | 28 |
| Power Requirement | 47-60 hp | 71-93 hp | 80-117 hp |
| Maximum Downward Movement | 65° | 65° | 65° |
| Maximum Upward Movement | 90° | 90° | 90° |
 |
|
